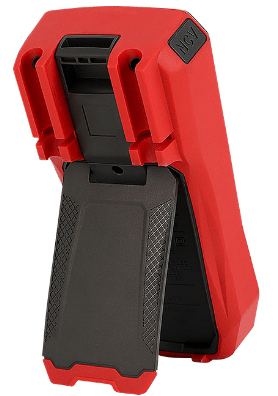

UNI-T UT60S True RMS Digital Multimeter

Name: UNI-T UT60S True RMS Digital Multimeter
Brand: Electra Store
SKU: UT60S
Price: 1430.00 EGP
Availability: BackOrder

Electra Store SKU: UT60S

1,430.00 EGP

Available on Backorder

Quantity

Share to

Categories: UNI-T

Overview

UT60S True RMS Digital Multimeter UT60 series digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection and many convenient features for users’ testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current and 100MΩ resistance. The easy-to-use interface with backlight enables you to detect equipment quickly even in dark places. This CE certified meter meets CAT II 1000V/CAT III 600V safety rating with rugged double-injection housing.

Description

Specifications of UT60S Digital Multimeter

	Range	UT60S
DC Voltage	9.999mV/99.99mV/999.9mV/ 9.999V/99.99V/999.9V	±(0.5% 3)
AC Voltage	9.999mV/99.99mV/999.9mV/ 9.999V/99.99V/999.9V	±(0.8% 3)
DC Current	999.9uA/999.9mA/9.999A/10A	±(0.8% 3)
AC Current	999.9uA/999.9mA/9.999A/10A	±(1.0% 3)
Resistance	999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ	±(0.8% 2)
Capacitor	9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF	±(4.0% 5)
Frequency	99.99Hz～9.999MHz	±(0.1% 5)
Duty Cycle	0.1～99.9%	±(3% 5)
Temperatue	–40℃～1000℃/–40°F～1832°F	±4℃/±5℉
Features
Display Count		9999
Auto Range		√
REL		√
NCV		√
Diode		√
Continuity Test		√
Acousto-optic Indication (NCV/continuity/battery power)		√
Low Battery Indication	≤3.6V	√
Data Hold		√
Auto Power Off	15Min	√
Operation Temperature	0℃～40℃
Safety	CAT II 1000V/CAT III 600V
General Characteristics
Battery	1.5V AAA x 3
Product Color	Red and Gray
Product Net Weight	290g
Product Size	169mm x 81mm x 46mm
