Orange Pi Lite

770.00 EGP

Out of Stock

Overview

<span style="font-size: medium; color: #000000;">Orange Pi Lite is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.</span>

Description

Orange Pi Lite is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.

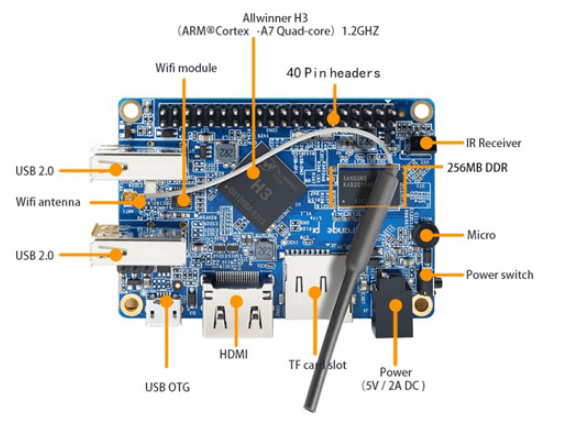

Specification:

Component Description

Memory(SDRAM) 512MB DDR3 (shared with GPU)

CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K

GPU ·Mali400MP2 GPU @600MHz·Supports OpenGL ES 2.0

Onboard Storage TF card (Max. 32GB) / MMC card slot

Wifi Antenna Yes

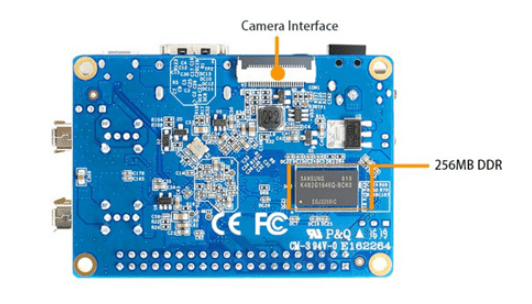

Video Input A CSI input connector Camera:Supports 8-bit YUV422 CMOS sensor interfaceSupports CCIR656 protocol for NTSC and PALSupports SM pixel camera sensorSupports video capture solution up to 1080p@30fps

Video Outputs Supports HDMI output with HDCP Supports HDMI CECSupports HDMI 30 function

Audio Input MIC

Audio Output HDMI

Power Source DC input, USB OTG input don't supply power

USB 2.0 Ports Two USB 2.0 HOST, one USB 2.0 OTG

Buttons Power button

GPIO(1x3) pin UART, ground.

Low-level

peripherals 40 Pins Header,compatible with Raspberry Pi B

OS Support Android Ubuntu, Debian, Raspbian Image.

LED Power led & Status led

Key IR input, POWER
