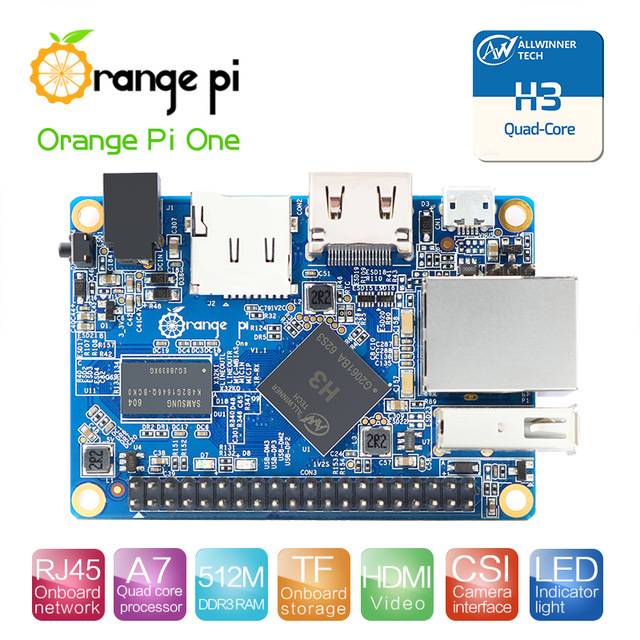

Orange Pi One
Electra Store
SKU: DB-25940
605.00 EGP
Out of Stock
Categories: Orange Pi
Overview
<span style="font-size: medium; color: #000000;">Orange Pi One is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.</span>
Description
Orange Pi One is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.

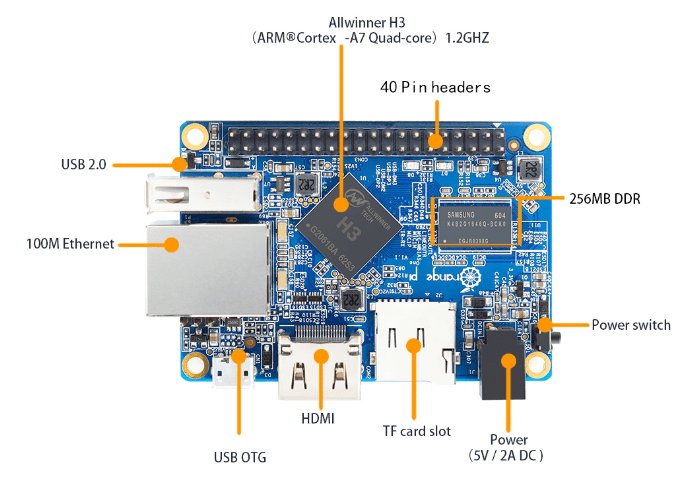

Specification
Component DescriptionMemory(SDRAM) 512MB DDR3 (shared with GPU)
CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU ·Mali400MP2 GPU @600MHz·Supports OpenGL ES 2.0_x000D__x000D_
Onboard Storage TF card (Max. 32GB) / MMC card slot _x000D__x000D_
Onboard Network 10/100M Ethernet RJ45 _x000D__x000D_
Onboard Network 10/100M Ethernet RJ45 _x000D__x000D_

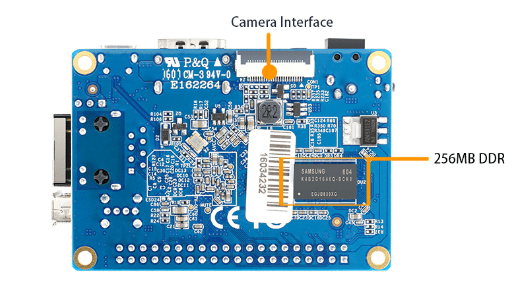

Video Input A CSI input connector Camera:_x000D__x000D_Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor
Video Outputs Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Supports simultaneous output of HDMI
Audio Input MIC
Power Source DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports Only One USB 2.0 HOST, one USB 2.0 OTG
Buttons Power Button(SW4)
Low-level
peripherals 40 Pins Header,compatible with Raspberry Pi B
OS Support Android Ubuntu, Debian, Raspbian Image._x000D__x000D_
LED Power led & Status led
Key POWER
Size 69 mm × 48mm
Weight 36g
