Orange Pi Prime is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.

You can buid:

A computer
A wireless server
Games
Music and sounds
HD video
A speaker
Android
Scratch
Pretty much anything else, because Orange Pi Prime is open source

Specification

Component Description

Memory 2GB DDR3 (shared with GPU)

CPU H5 Quad-core Cortex-A53

GPU · Mali450 GPU including dual Geometry Processors(GP) and quad Pixel Processors · Supports OpenGL ES 2.0 and OpenVG1.1

. 3000Mpix/sec and 163Mtri/sec

. Full scene over-sampled 4X anti-aliasing engine with no additional bandwidth usage

Onboard Storage TF card (Max. 32GB) / NOR flash(optional)

Onboard Network 1000M/100M Ethernet RJ45

Onboard WIFI BT 8723BS, IEEE 802.11 b/g/n,BT4.0

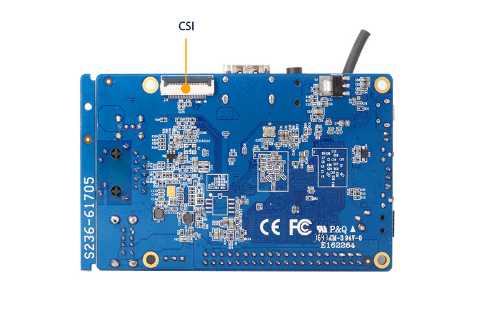

Video Input A CSI input connector Camera Supports 8-bit YUV422 CMOS sensor interfaceSupports CCIR656 protocol for NTSC and PALSupports SM pixel camera sensorSupports video capture solution up to 1080p@30fps

Video Outputs Supports HDMI output with HDCP Supports HDMI CECSupports HDMI 30 function

Audio Input 3.5 mm Jack, HDMI

Power Source DC input can supply power

USB 2.0 Ports Three USB 2.0 HOST, one USB 2.0 OTG

GPIO(1x3) pin UART, ground.

Low-level

peripherals 40 Pins Header,compatible with Raspberry Pi B

OS Support Android, Ubuntu, Debian, Raspbian Image

LED Power led & Status led

Key IR input, POWER,Reset

Size 98 mm × 60mm

Weight 68g
