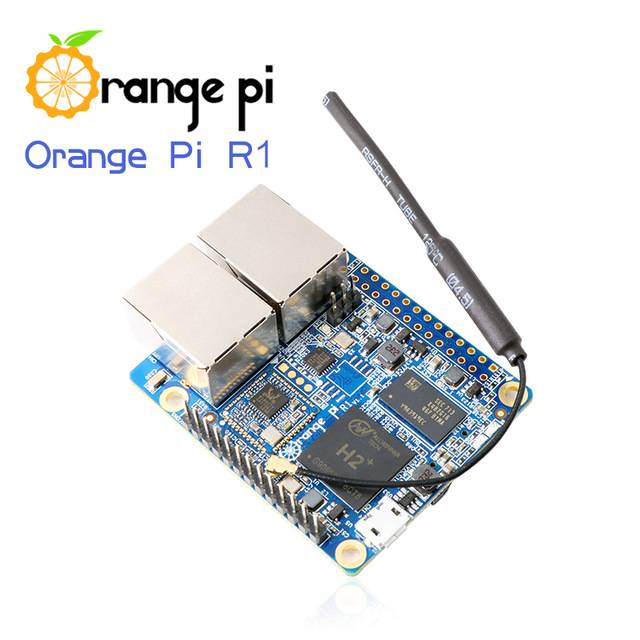

Orange Pi R1
Electra Store
SKU: DB-25929
685.00 EGP
Out of Stock
Categories: Orange Pi
Overview
<p><span style="font-size: medium; color: #000000;">Orange Pi R1 is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.</span></p>
Description
Orange Pi R1 is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.
You can buid:
- A computer
- A wireless server
- Games
- Music and sounds
- HD video
- A speaker
- Android
- Scratch
- Pretty much anything else, because Orange Pi Prime is open source

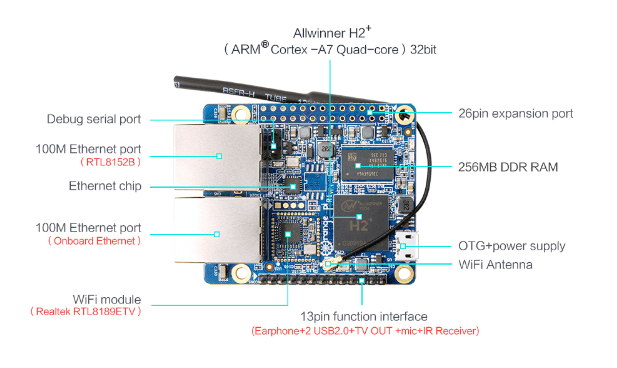

Specification
Component Description
Memory 256MB DDR3 (shared with GPU)
CPU H2 Quad-core 32-bit Cortex-A7
GPU Mali400MP2 GPU @600MHz, Supports OpenGL ES 2.0

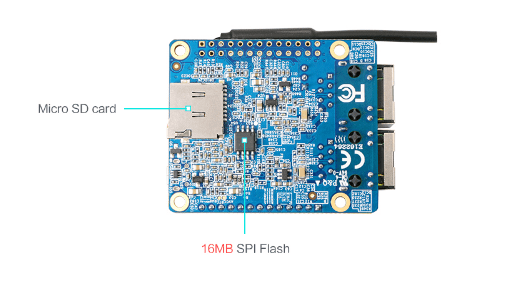

Onboard Storage TF card (Max. 32GB) / Spi flash(16MB)
Onboard Network 100M/10M Ethernet RJ45(Onboard Ethernet)
100M/10M Ethernet RJ45(RTL8152B)
Onboard WIFI Realtek RTL8189FTV, IEEE 802.11 b/g/n 100M/10M Ethernet RJ45(RTL8152B)
Video Outputs Supports external board via 13pins
Audio Input No
Power Source USB OTG can supply power
GPIO(1x3) pin UART, ground.
Low-level
peripherals 26 Pins Header, compatible with Raspberry Pi B
13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV)
13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV)
OS Support Android4.4, Lubuntu, Debian, Armbian Image
LED Power led & Status led
Buttons Power Button(SW602) Size 45 mm × 60mm
Weight 35g
