Orange Pi 2G-IOT
Electra Store
SKU: DB-25941
550.00 EGP
Out of Stock
Categories: Orange Pi
Overview
<span style="font-size: medium; color: #000000;">Orange Pi 2G-IOT is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.</span>
Description
Orange Pi PC is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.

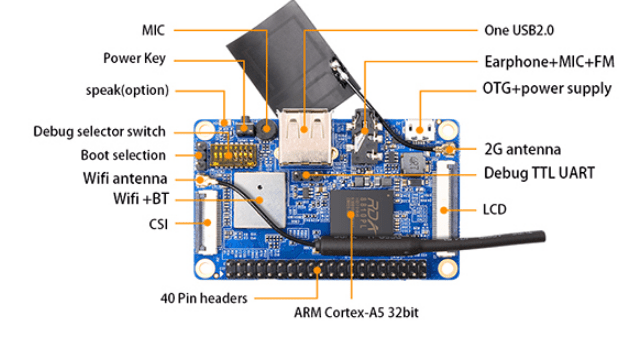

Specification:
Component Description
Memory(SDRAM) Integrated 256MB LPDDR2 SDRAM
CPU ARM Cortex-A5 32bit
GPU Separate graphic processor, Vivante's GC860 Support OpenGLES1.1/2.0Support OpenVG1.4Support DirectFBSupport GDI/DirecShow30M Triangle/s, 250M Pixel/s
Onboard Storage TF card / Integrated 512MB 8Bit 1.8V 4K SLC Nand Flash
Onboard WIFI BT RDA5991, WIFI BT

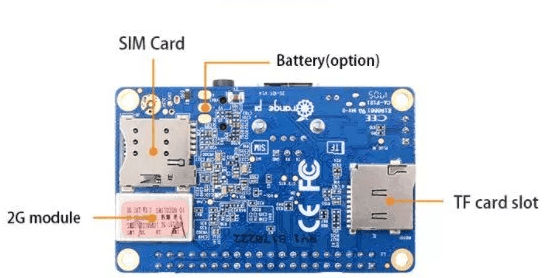

2G model The four frequency single card GSM/GPRS Dedicated acceleratorsSIM card
Video Input A CSI input connector Camera Supports 8-bit YUV422 CMOS sensor interfaceSupports CCIR656 protocol for NTSC and PALSupports SM pixel camera sensorSupports video capture solution up to 1080p@30fps
Video Outputs LCD
Audio Input MIC, 3.5 mm Jack
Power Source USB OTG can supply powerBattery input can supply power（Optional）
USB 2.0 Ports One USB 2.0 HOST, One USB 2.0 OTG
GPIO(1x3) pin UART, ground.
Low-level
peripherals 40 Pins Header,compatible with Raspberry Pi B
OS Support Android Ubuntu, Debian, Raspbian Image.
LED Power led
Buttons Power Button(SW602) Size 67 mm × 42mm
Weight 35g
