Orange Pi Zero Plus 2 H5
Electra Store
SKU: DB-25902
1,100.00 EGP
Out of Stock
Categories: Orange Pi
Overview
<span style="font-size: medium; color: #000000;">It’s an open-source single-board computer. It can run Android 5.1, Ubuntu, Debian, Raspbian Image, it uses the AllWinner H5 SoC, and has 512MB DDR3 SDRAM.</span>
Description
The Orange Pi Zero Plus2 H5 is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.
You can buid:
Memory 512MB DDR3 (shared with GPU)
CPU Quad-core Cortex-A53
- A computer
- A wireless server
- Games
- Music and sounds
- HD video
- A speaker
- Android
- Scratch
- Pretty much anything else, because Orange Pi Zero Plus2 is open source

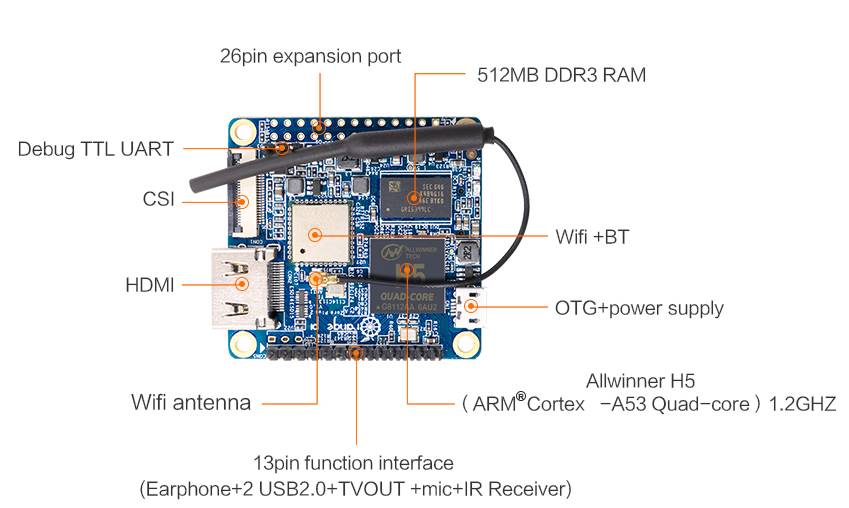

Features and User Manual:
Component Description
Memory 512MB DDR3 (shared with GPU)
CPU Quad-core Cortex-A53
GPU Mali450 GPU

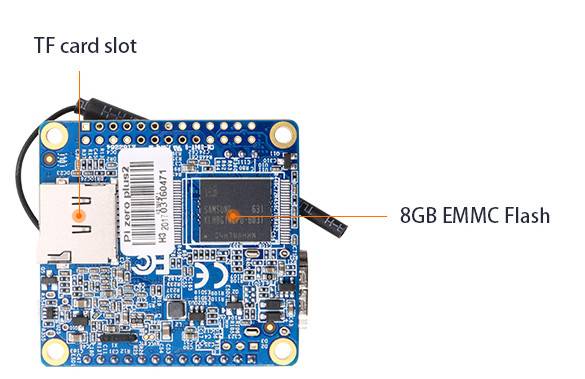

Onboard Storage TF card (Max. 32GB) /eMMC flash(8GB)
Onboard WIFI BT AP6212, IEEE 802.11 b/g/n,BT4.2
Onboard WIFI BT AP6212, IEEE 802.11 b/g/n,BT4.2
Video Input A CSI input connector Camera
Supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor
Supports video capture solution up to 1080p@30fps
Video Outputs Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function
Power Source USB OTG can supply power
GPIO(1x3) pin UART, ground.
Low-level
peripherals 26 Pins Header,compatible with Raspberry Pi B
13 Pins Header,with 2x USB, IR pin, AUDIO(MIC, AV)
OS Support Android, Ubuntu, Debian, Raspbian Image.
LED Power led & Status led
Size 46 mm × 48mm
