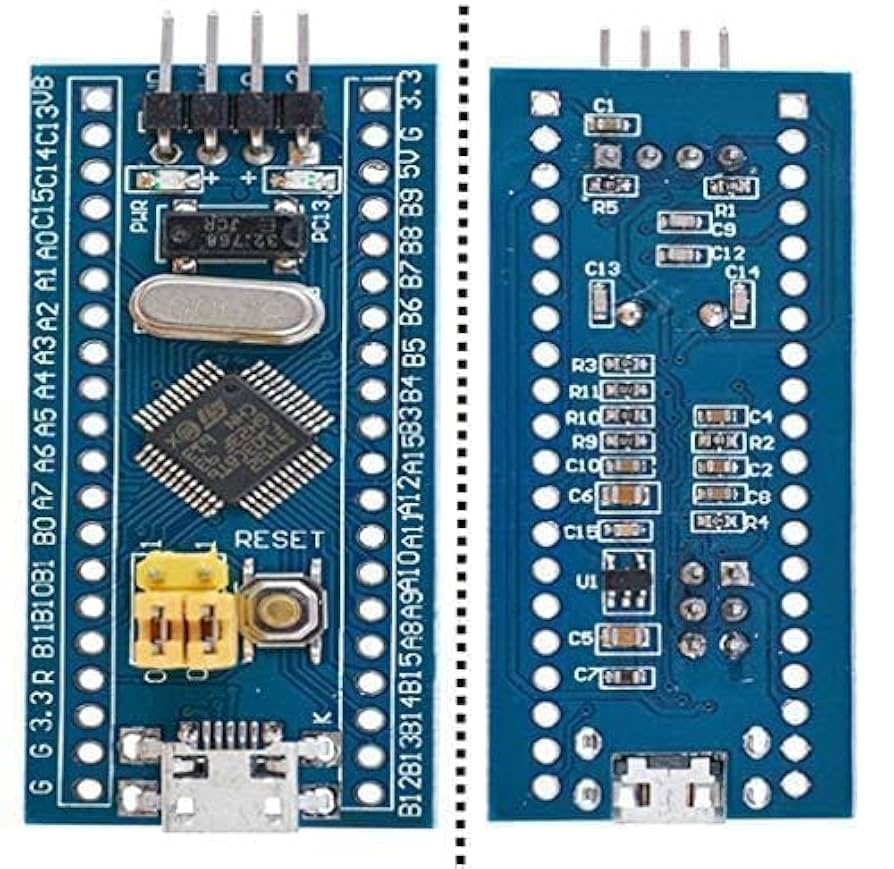

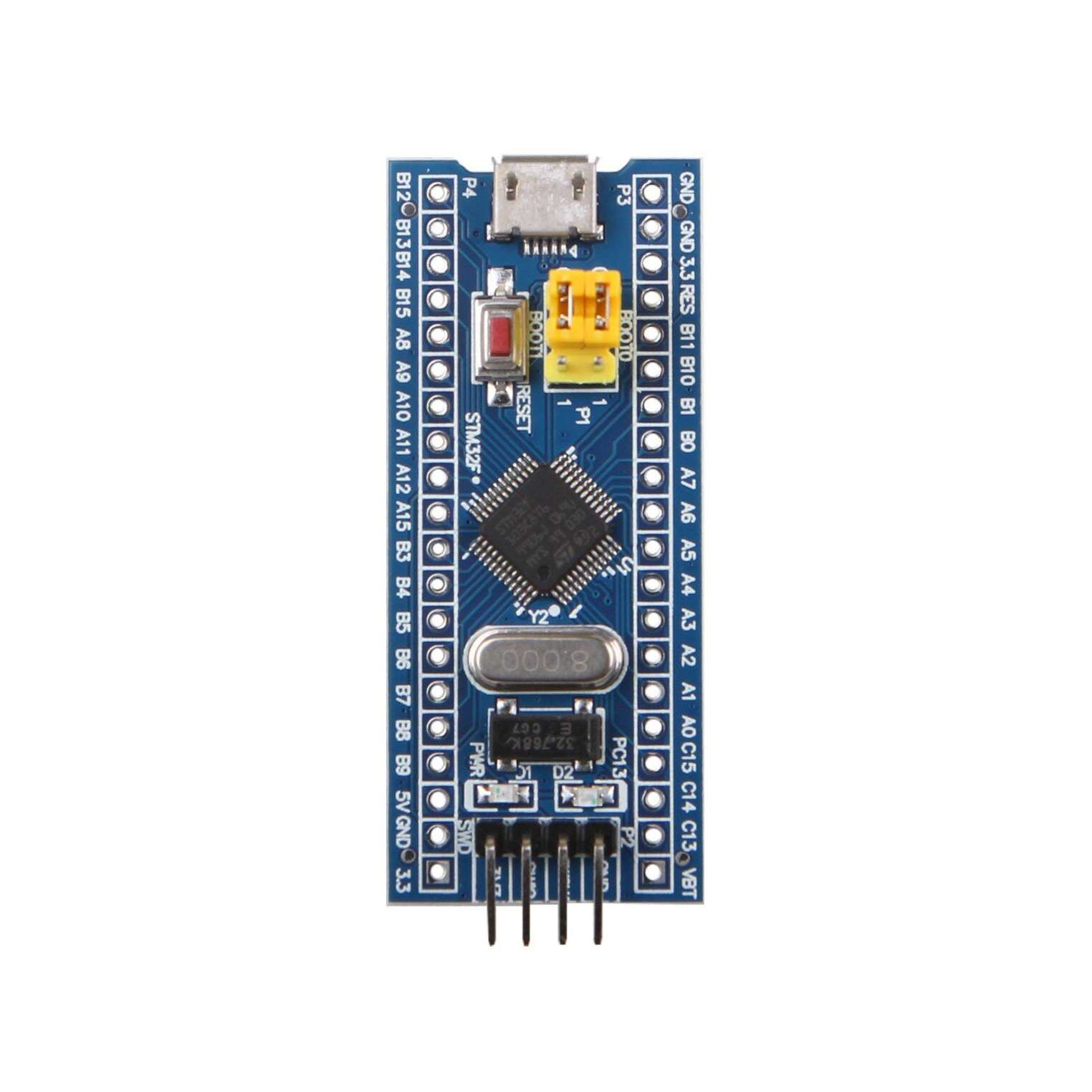

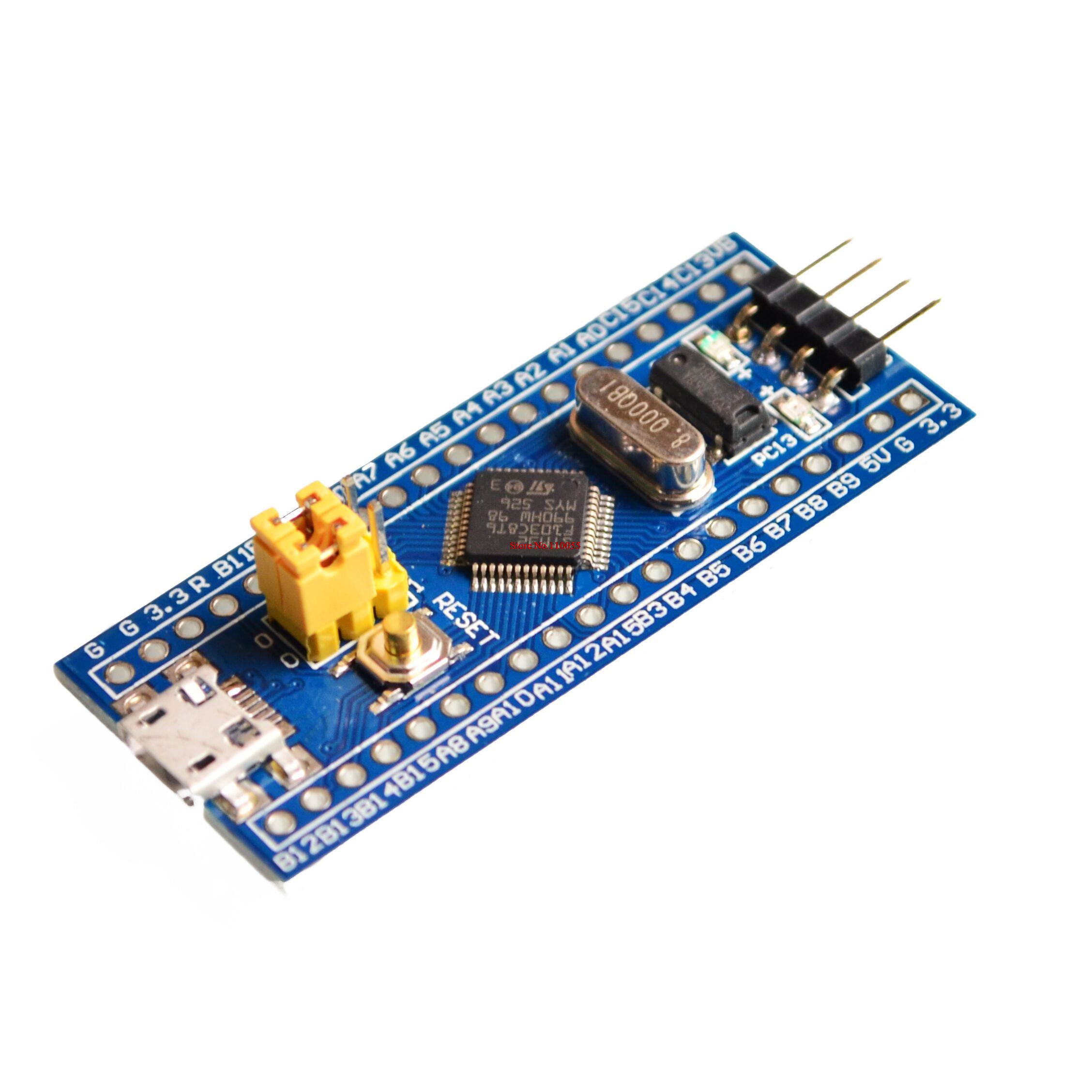

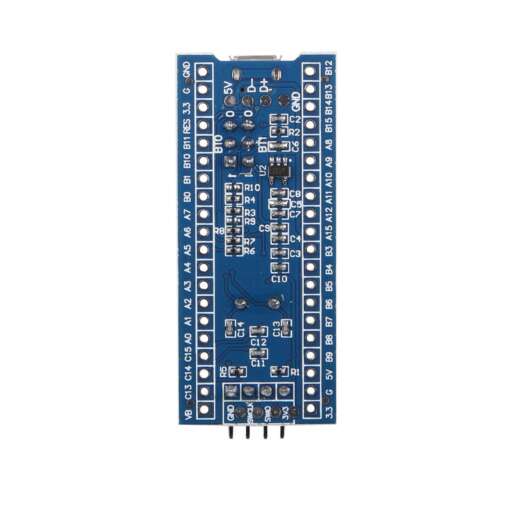

STM-32 F103C8T6 Controller

EGP 150.00

Compare

Product Description

  • ARM®32-bit Cortex®-M3 CPU Core.
  • 72 MHz maximum frequency,1.25 DMIPS/MHz .
  • 64 or 128 K bytes of Flash memory.
  • 20 K bytes of SRAM.
  • 2.0 to 3.6 V application supply and I/Os.
  • 4-to-16 MHz crystal oscillator.
  • Internal 8 MHz factory-trimmed RC.
  • Internal 40 kHz RC.
  • PLL for CPU clock.
  • 32 kHz oscillator for RTC with calibration.
  • 2 x 12-bit, 1μs A/D converters (up to 16 channels).
  • 7-channel DMA controller.
  • Peripherals Supported: timers, ADC, SPIs, I2Cs and USARTs.
  • 7 timers.
  • Up to 2 x I2C interfaces (SMBus/PMBus).
  • Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control).
  • Up to 2 SPIs (18 Mbit/s).
  • CAN interface (2.0B Active).
  • USB 2.0 full-speed interface.
  • CRC calculation unit, 96-bit unique ID.

Package Included:

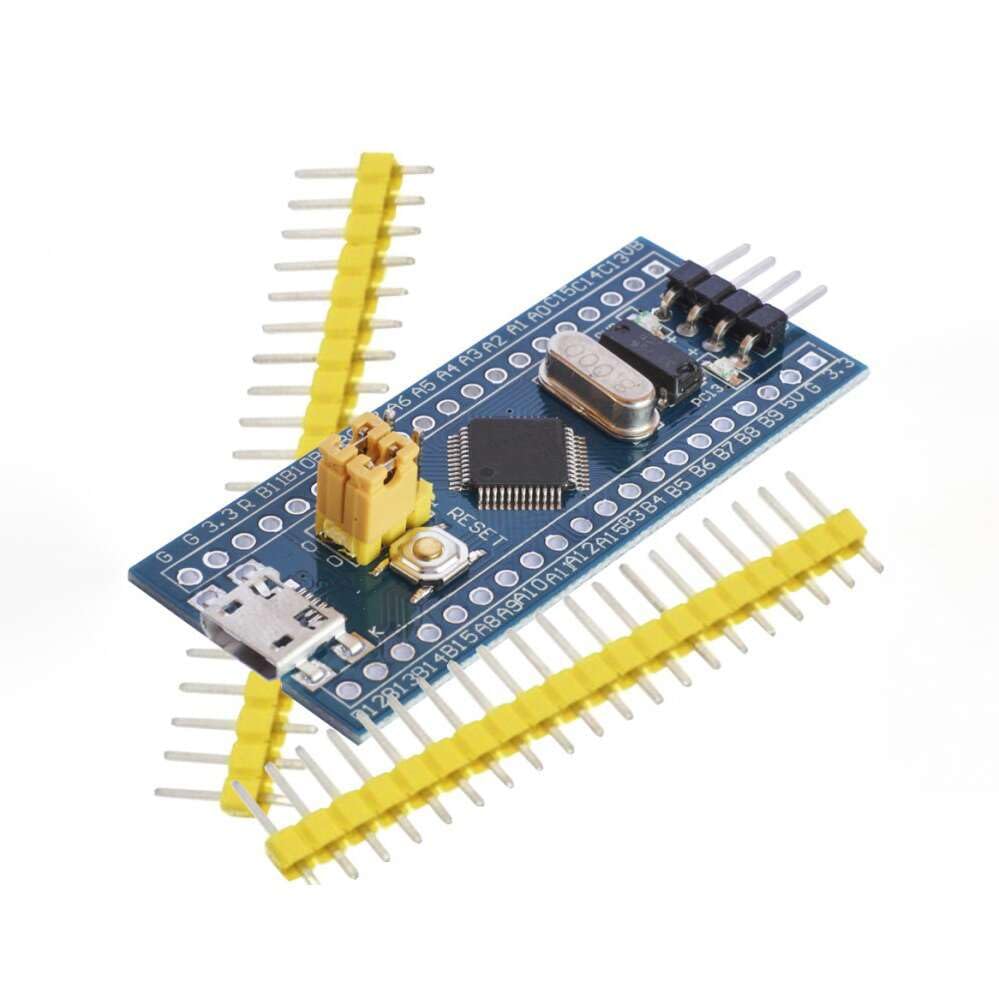

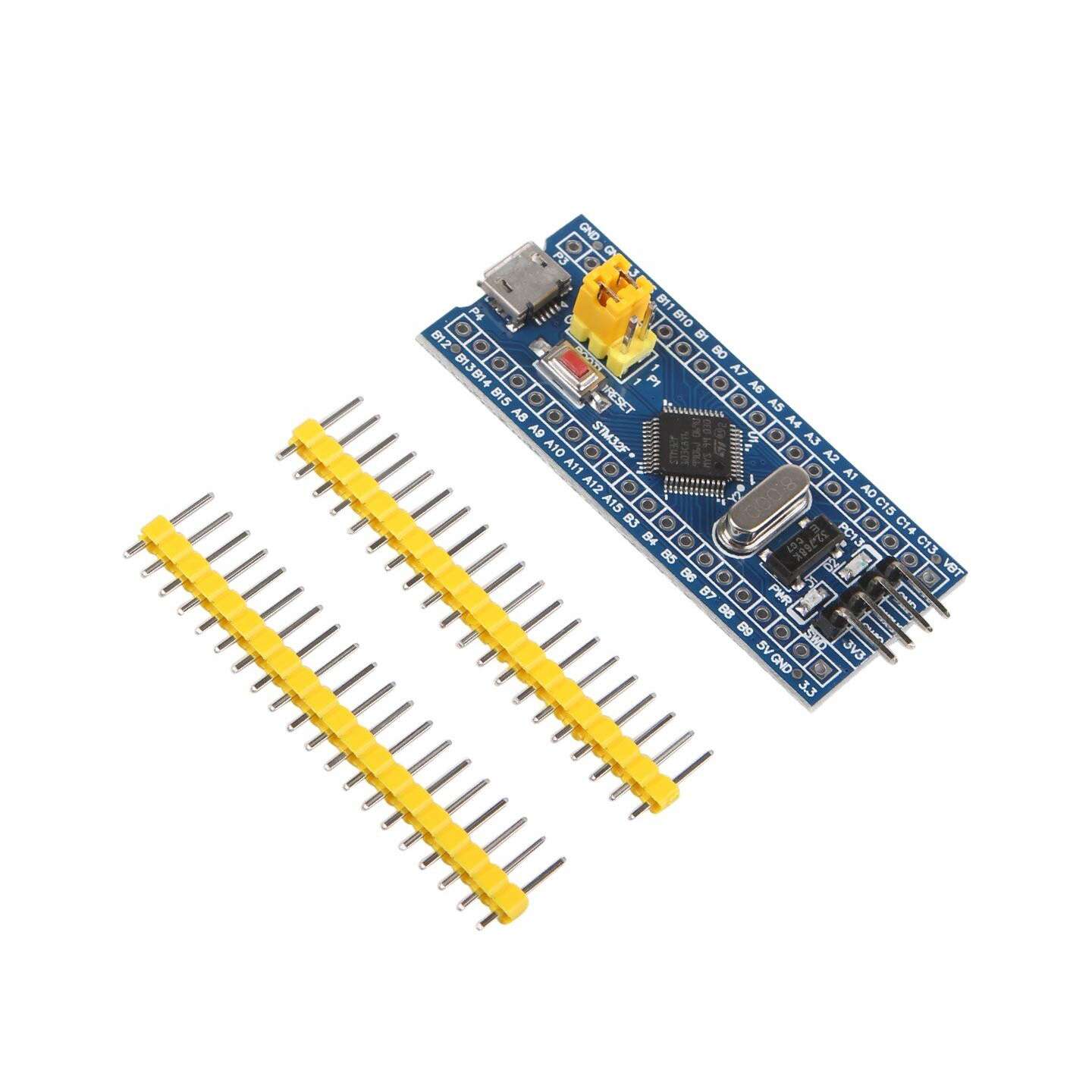

  • 1 x STM32 Development Board
  • 1 x 40-pin male header strip
