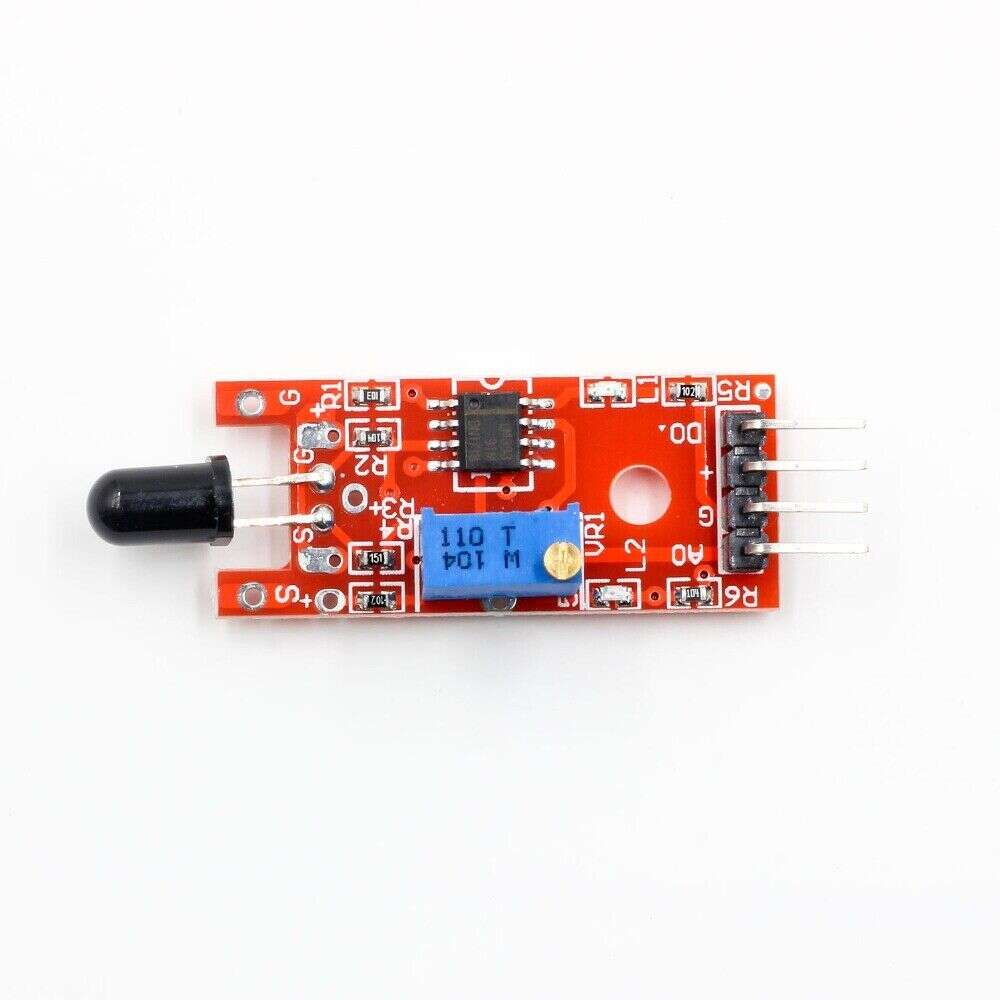

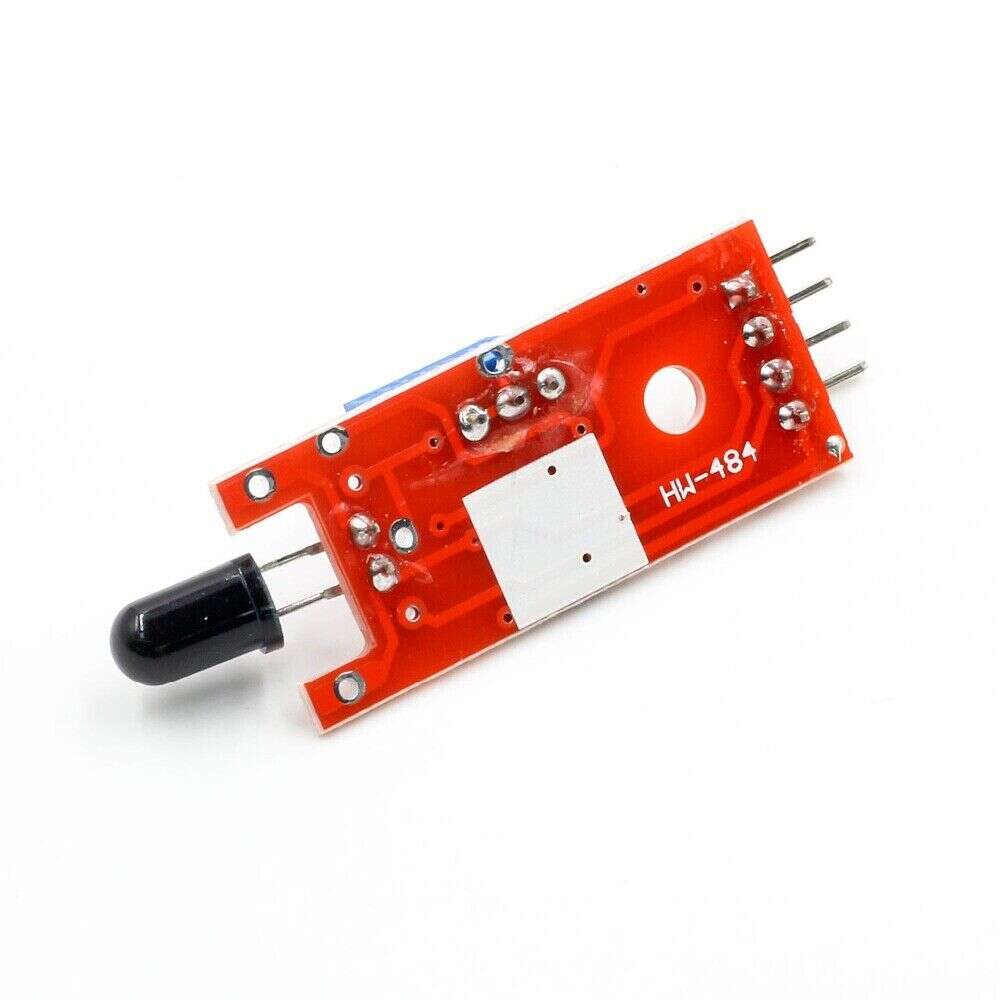

Flame Sensor Module 4 Pin
35.00 EGP
-
The 4-Pin Flame Sensor Module is an infrared (IR) detection device designed to identify flames or fire sources by sensing their specific light frequency (760nm–1100nm). Ideal for fire alarms, safety systems, and DIY projects, this module provides a digital output (HIGH/LOW) and an analog output (variable voltage) for flexible integration with Arduino, Raspberry Pi, and other microcontrollers.
With high sensitivity and a compact design, this sensor is widely used in fire detection robots, industrial safety systems, and smart home automation.
Description
Key Features
✔ Flame Detection Range – Up to 1 meter (adjustable via potentiometer).
✔ Dual Output Modes – Digital (TTL) & Analog for versatile use.
✔ High Sensitivity – Detects 760nm–1100nm wavelength (typical of flames).
✔ Adjustable Threshold – Onboard potentiometer to fine-tune sensitivity.
✔ Fast Response Time – Reacts instantly to flame presence.
✔ LED Indicator – Lights up when flame is detected (digital mode).
✔ Low Power Consumption – Works at 3.3V–5V DC.
Technical Specifications
-
Operating Voltage: 3.3V–5V DC
-
Detection Spectrum: 760nm–1100nm (IR range of flames)
-
Output Signals:
-
Digital (DO): TTL logic (HIGH/LOW) – adjustable threshold
-
Analog (AO): Voltage proportional to flame intensity
-
-
Detection Angle: ~60°
-
Response Time: <100ms
-
Dimensions: 32mm × 15mm × 8mm
-
Weight: ~5g
Applications
-
Fire Alarm Systems – Early warning for homes/offices.
-
Robotics – Fire-fighting robots or competition bots.
-
Industrial Safety – Monitor machinery for overheating/flames.
-
DIY Projects – Camping safety devices or smart stove monitors.
-
Educational Kits – Learn about IR sensing and safety electronics.
How It Works
-
Power the Module – Connect VCC (3.3V–5V) and GND to a microcontroller.
-
Select Output Mode:
-
Digital (DO): Triggers a HIGH/LOW signal when flame is detected.
-
Analog (AO): Provides a variable voltage for flame intensity analysis.
-
-
Adjust Sensitivity – Use the potentiometer to set the detection threshold.
-
Read Output – Use Arduino/RPi to process signals and trigger alarms/actions.
Package Includes
-
1 × 4-Pin Flame Sensor Module
-
(Optional) Jumper wires for quick connections
Why Choose This Flame Sensor?
✅ Reliable Detection – Accurately distinguishes flames from ambient light.
✅ Easy to Use – Works out of the box with Arduino/RPi.
✅ Compact & Durable – Small footprint for embedded projects.
✅ Cost-Effective – Affordable fire-sensing solution.
Get Yours Today!
Enhance your safety projects with the 4-Pin Flame Sensor Module—perfect for fire detection, robotics, and automation!
🔹 Order now and add flame sensing to your next project! 🔹
