ESP32 Development Board (WIFI and Bluetooth) with Ch340 USB Type-C
430.00 EGP
The ESP32 Dev Board CH340 - USB-C is an exceptional development board meticulously designed to cater to a wide array of IoT (Internet of Things) applications. Powered by the robust ESP32 microcontroller, it offers a versatile range of connectivity options, making it suitable for a multitude of IoT projects. This board boasts a USB-C interface coupled with a reliable CH340 USB-to-Serial converter, ensuring seamless and dependable connectivity for programming and debugging purposes.
Maya / Pre-sale Questions
Need Help? Contact Us via WhatsApp
ESP32 Development Board CH340 – USB-C

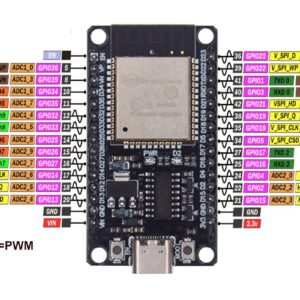

This is the ESP32S- development board based on ESP-WROOM-32, features WiFi + Bluetooth connectivity, onboard USB CH340 and keys. What’s more, all the I/O pins of ESP-WROOM-32 module are accessible via the extension headers. The board has 2x19pin extension headers, which breakout all the I/O pins of the module and 2x keys, used as reset or user-defined
Quick Specification
- ESP-WROOM-32 32-bit 240 MHz microprocessor
- Supply Voltage: 5V
- 2.4 GHz Wi-Fi
- Bluetooth 4.2
- 4 MByte (32Mbit) SPI Flash
- 448 KB ROM
- 520 KB SRAM
- 16 KB SRAM in RTC
- PCB Antenna
- Powered via USB Type-C Connector, or via pin header
- Reset and User/Firmware buttons
- User and Power LED
- USB Type-C connector
- Virtual USB port provided by CH340 for debugging and firmware upgrade
- Assembled with ESP-WROOM-32 module
- Dimensions: 51.5 x 28.5mm
