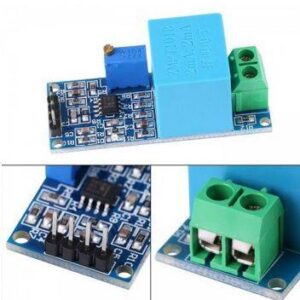

AC Voltage Sensor Module ZMPT101B

ZMPT101B a voltage transform ideal to measure the AC voltage. It has high accuracy, good consistency for voltage and power measurement up to 250V AC. Easy to use and comes with a multi turn trim potentiometer for adjusting the ADC output.​

EGP 65.00

Product Description

  • This

    AC Voltage Sensor Module ZMPT101B

    Single-phase AC active output voltage mutual inductance module equipped with ZMPT101B series of high-precision voltage transformer and high-precision op amp current, easy to 250v within the AC power signal acquisition.

    Features:

    • Measure within 250V AC
    • Rated input current: 2mA
    • Onboard micro-precision voltage transformer
    • Analog output corresponding quantity can be adjusted
    • Good consistency for voltage and power measurement
    • Active output single-phase AC voltage sensor module

    Specifications:

    • Output Signal: Analog 0 – 5V
    • Size: 49.5 mm x 19.4 mm
    • Operating temperature: 40’C ~ + 70′ C
Price for 2 itemsEGP 3.00
Output Signal Analog 0-5V
Operating Voltage DC 5V-30V
Measure within 250V AC
Rated input current 2mA
Operating temperature 40ºC ~ + 70ºC
Voltage Transformer Onboard Precision Micro Voltage Transformer
Operational amplifier circuit High-precision on-board amplifier circuit, the signal to do the exact sampling and appropriate compensation and other functions
Mode voltage output The module can measure AC voltage within 250V, the corresponding output mode can be adjusted
Output signal The output signal for the sine wave, the waveform of the median (DC component)
Dimensions 4.9 × 1.9 cm
