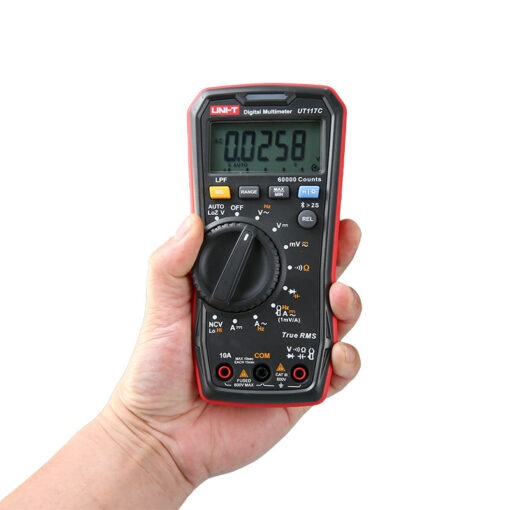

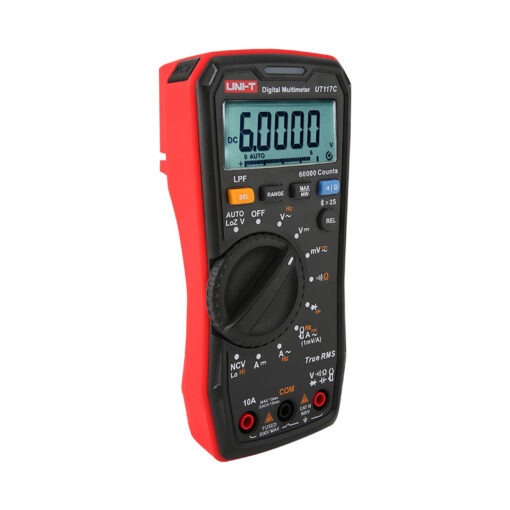

UNI-T UT117C High-precision True RMS Digital Multimeter

​The UNI-T UT117C is a high-precision, True RMS digital multimeter designed to meet the rigorous demands of professional electricians and electronic technicians. Combining accuracy, versatility, and durability, this compact device is an essential tool for a wide range of electrical measurement tasks.​

Key Features:

• High-Resolution Display: Equipped with a 60,000-count LCD, the UT117C provides detailed and precise readings, enhancing measurement accuracy. ​

• True RMS Measurement: Accurately measures both sinusoidal and non-sinusoidal AC signals, ensuring reliable data across various waveforms. ​UNI-T Meters

• Comprehensive Measurement Functions:

  • Voltage Measurement: Measures AC/DC voltages up to 600V.​toolworld.in

  • Current Measurement: Handles AC/DC currents up to 10A.​Makers Electronics+1toolworld.in+1

  • Resistance Measurement: Capable of measuring resistance up to 40MΩ.​

  • Capacitance Measurement: Measures capacitance up to 10,000µF.​

  • Frequency Measurement: Offers frequency measurements up to 50kHz. ​

• Low Pass Filter (LPF): Facilitates accurate measurement of voltage and frequency in environments with variable frequency drives, enhancing measurement reliability. ​

• Auto-V LoZ Function: Reduces the possibility of false readings caused by ghost voltage, ensuring more accurate measurements. ​

• Bluetooth Connectivity: Supports Bluetooth communication, allowing for remote monitoring and data logging via a compatible mobile application. ​

• External Current Clamp Support: Compatible with external current clamps, expanding its measurement capabilities for higher current applications. ​Amazon+6YouTube+6Makers Electronics+6

• Safety and Durability:

  • CAT III 600V Rating: Ensures safe operation within specified voltage levels.​

  • 2-Meter Drop Test: Designed to withstand drops up to 2 meters, demonstrating robust build quality.​UNI-T Meters+3toolworld.in+3Makers Electronics+3

  • Audible and Visual Warnings: Provides alerts for high voltage and other critical measurement conditions, enhancing user safety. ​

• User-Friendly Features:

  • Data Hold and Relative Mode: Facilitates easy data recording and relative measurements.​

  • Auto/Manual Ranging: Offers flexibility in selecting measurement ranges.​EEVblog+1Amazon+1

  • Backlit LCD: Ensures readability in low-light conditions.​

  • Auto Power Off: Conserves battery life by automatically powering down after periods of inactivity. ​UNI-T Meters

Specifications:

• AC Voltage: 600.00mV to 600.00V (±1%＋30)​Amazon+3Amazon+3Makers Electronics+3

• DC Voltage: 600.00mV to 600.00V (±0.3%+10)​UNI-T Meters

• AC Current: 6.0000A to 10.000A (±1.5%+30)​EEVblog+4Amazon+4Amazon+4

• DC Current: 6.0000A to 10.000A (±0.5%+10)​

• Resistance: 600.00Ω to 40.000MΩ (±0.5%+5)​UNI-T Meters+3Makers Electronics+3Amazon+3

• Capacitance: 1000nF to 10,000µF (±1.9%+5)​UNI-T Meters+3Amazon+3Makers Electronics+3

• Frequency: 99.99Hz to 50.00kHz (±0.01%+3)​Amazon+3Amazon+3UNI-T Meters+3

• Power Supply: Three 1.5V AAA batteries​UNI-T Meters

• Dimensions: Compact and ergonomic design for handheld use​

• Weight: Approximately 346g ​UNI-T Meters

Applications:

The UT117C is ideally suited for a variety of applications, including:​

• Electrical Maintenance: Performing diagnostics and maintenance on electrical systems with precision.​

• Electronic Testing: Accurately measuring electronic components and circuits.​

• Field Service: Its compact design and durable construction make it suitable for on-the-go measurements in various environments.​

• Educational Purposes: Serving as a reliable tool for teaching and laboratory work in academic settings.​

In summary, the UNI-T UT117C True RMS Digital Multimeter offers a blend of high precision, robust features, and user-friendly design, making it an invaluable instrument for professionals and enthusiasts in the electrical and electronics industries.
