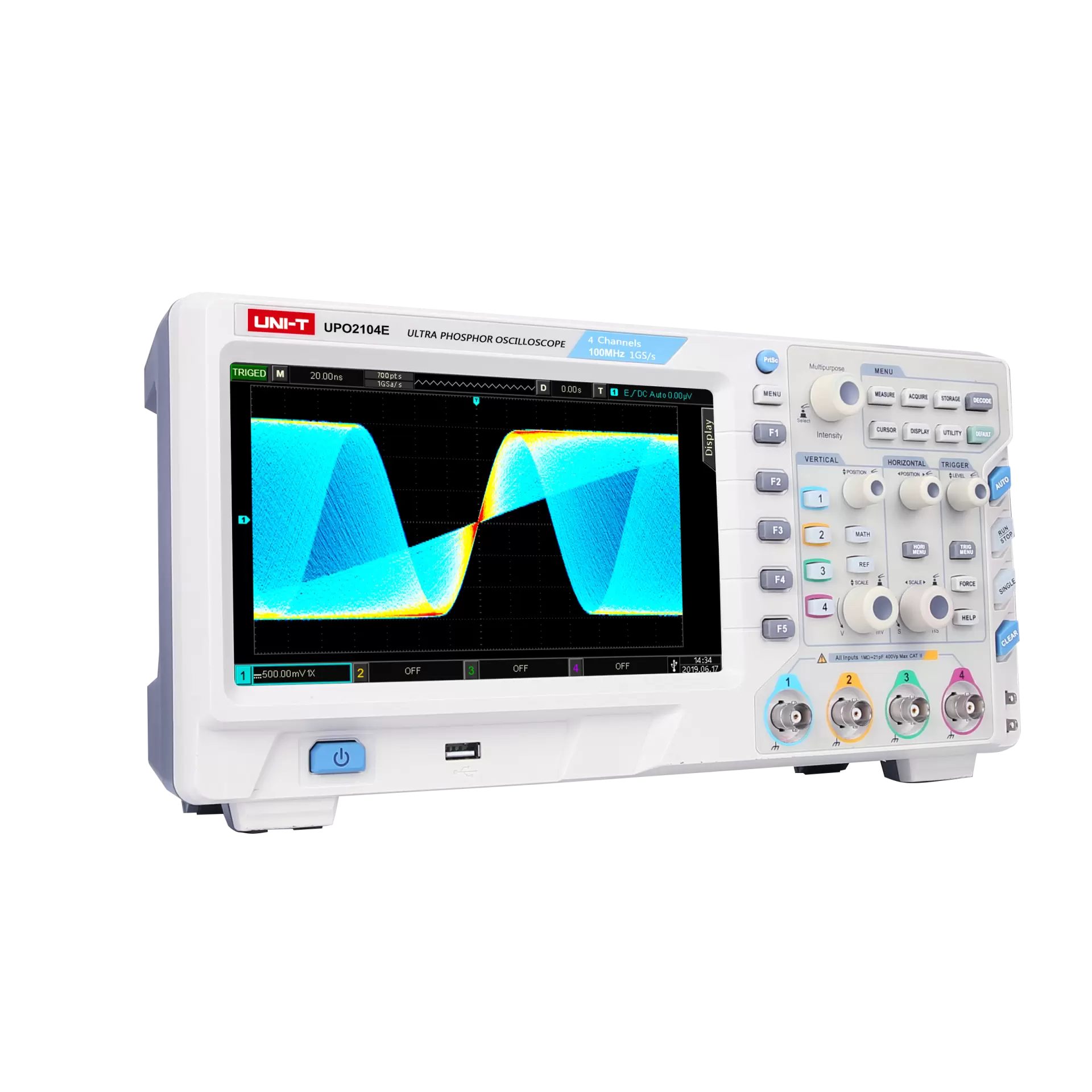

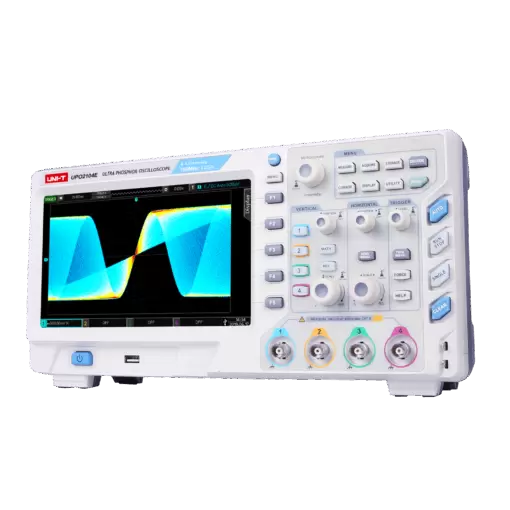

Key Features:

• Bandwidth: 100 MHz

• Channels: 4 analog input channels

• Real-Time Sampling Rate: 1 GSa/s

• Memory Depth: 56 Mpts (single channel), 28 Mpts per channel (4-channel mode)

• Waveform Capture Rate: Up to 80,000 wfms/s

• Display: 8-inch TFT LCD screen with 800×480 resolution

• Vertical Resolution: 1 mV/div to 20 V/div

• Horizontal Time Base: 5 ns/div to 50 s/div

• Trigger Modes: Edge, Pulse, Slope, Video, Window, N-edge, Timeout, Duration, Delay, Setup/Hold, Code

• Protocol Decoding Support: UART, SPI, I²C

• Advanced Features: 256-level intensity grading, independent time base per channel, waveform record/replay (up to 65,000 frames)

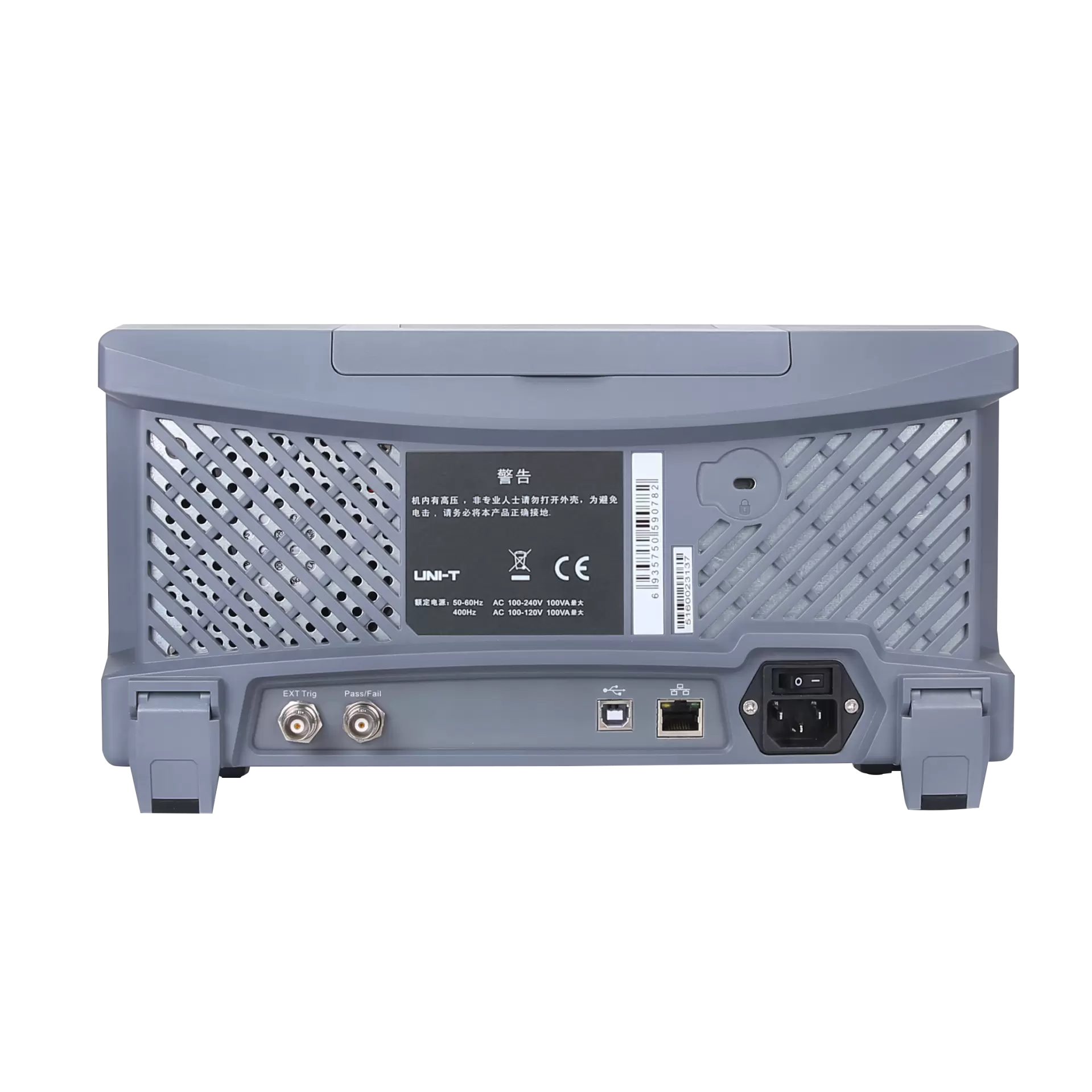

Connectivity:

• USB Host and USB Device ports

• LAN interface for network connectivity

• AUX OUT for external triggering or Pass/Fail output

Applications:

• Circuit design and debugging

• Industrial equipment diagnostics

• Teaching and laboratory experiments

• Embedded system development

• Maintenance and service work

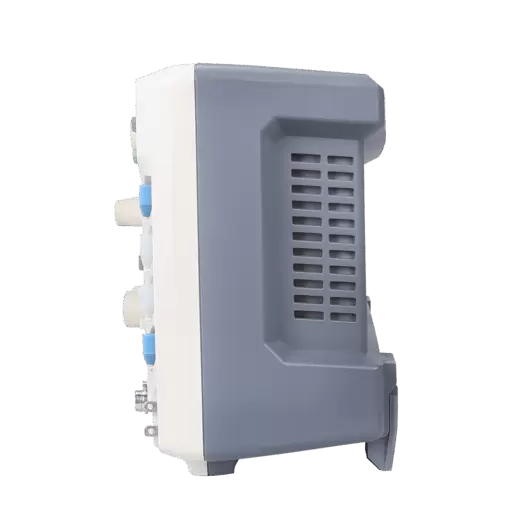

Specifications:

• Dimensions: 336 × 164 × 108 mm

• Weight: Approx. 3.5 kg

• Power Supply: 100–240V AC
