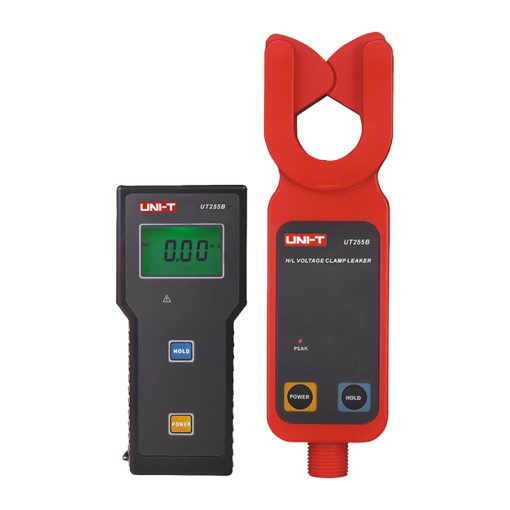

UNI-T UT255B High Voltage Clamp Ammeters
In Stock
Categories: UNI-T
Description
Key Features & Benefits
⚡ High-Voltage Safety & Precision
-
CAT IV 1000V/CAT III 1000VÂ safety rating for maximum protection
-
True RMS for accurate measurements on non-linear loads (motors, VFDs, etc.)
-
Measures AC/DC current up to 1000A without breaking the circuit
🔧 Professional-Grade Performance
-
Large 35mm jaw for easy clamping on thick cables
-
Data Hold & MAX/MINÂ recording for troubleshooting
-
Backlit LCD display for visibility in low-light conditions
🛡️ Rugged & Reliable
-
IP54 rated – Resistant to dust and water splashes
-
Drop-proof design (1m impact resistance)
-
Low battery indicator for uninterrupted work
đź“Š Multi-Function Testing
-
Measures AC/DC voltage, resistance, continuity, and frequency
-
Diode test & NCV (Non-Contact Voltage) detection
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC Current | 0.1A–1000A | ±1.5% + 5 digits |
| DC Current | 0.1A–1000A | ±2% + 5 digits |
| AC/DC Voltage | 0.1V–1000V | ±0.8% + 3 digits |
| Resistance | 0.1Ω–60MΩ | ±1% + 2 digits |
| Frequency | 10Hz–1kHz | ±1% + 3 digits |
| Jaw Opening | 35mm | – |
| Safety Rating | CAT IV 1000V / CAT III 1000V | – |
Applications
✔ Industrial Maintenance – Motor, transformer, and VFD testing ✔ HVAC Systems – Compressor and fan current measurements ✔ Power Distribution – High-voltage line inspections ✔ Renewable Energy – Solar/Wind farm electrical checks ✔ Data Centers – UPS and backup power monitoring
Why Choose the UT255B?
✅ Safer than traditional multimeters – No direct contact needed for current readings ✅ Faster diagnostics – Clamp-on design saves time vs. breaking circuits ✅ More durable – Built for harsh industrial environments ✅ More versatile – Combines clamp meter + multimeter functions

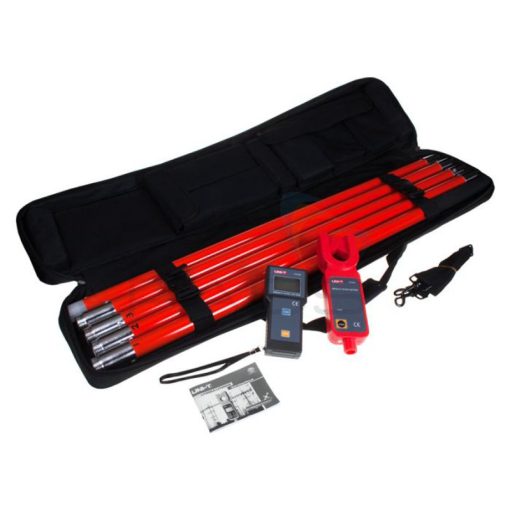

Package Includes
-
UT255B Clamp Meter
-
Test Leads
-
Batteries
-
User Manual
-
Carrying Case
Optional Accessories:
-
Soft carrying pouch
-
Thermal probe (for temperature measurements)
