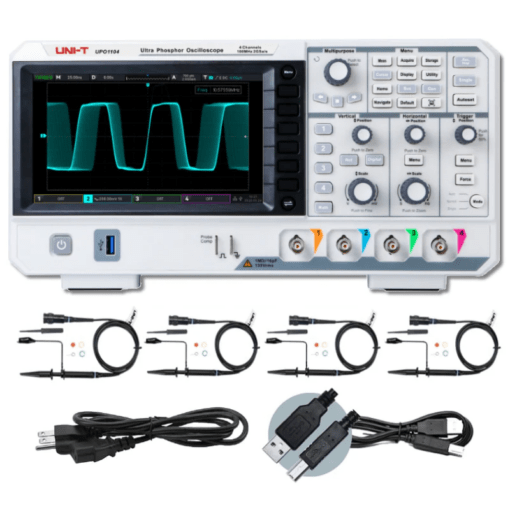

The UPO1104 Digital Oscilloscope is a versatile and high-performance instrument designed for precise signal measurements across multiple channels. It is ideal for professionals and enthusiasts working in electronics, telecommunications, and other technical fields. Here's a detailed description:
Key Features:
Channels: 4 independent channels allow simultaneous monitoring of multiple signals.
Bandwidth: 100 MHz, suitable for capturing fast-changing signal variations with clarity.
Sampling Rate: Up to 1 GS/s (Giga Samples per Second) ensures high-accuracy signal capture.
Display: 7-inch color LCD screen offers a clear and detailed view of waveforms.
Memory Depth: Deep memory allows capturing long waveforms without losing resolution.
Trigger Functions: Various trigger types such as edge, pulse, video, and pattern, offering flexibility for complex signal analysis.
Automatic Measurements: Features over 20 automatic measurements, simplifying analysis by providing quick, accurate data.
Connectivity: Equipped with USB and LAN ports for easy data storage, remote control, and software integration.
Waveform Analysis: Powerful tools for analyzing signals, including zooming, cursors, and math functions.
Compact Design: Portable and easy to integrate into different work environments.
Applications:
Electronics Testing: Perfect for debugging and testing circuits, microcontrollers, and digital systems.
Education and Research: Suitable for labs and educational purposes where precision and versatility are key.
Maintenance: Ideal for troubleshooting electrical equipment and identifying faults in signals.
Benefits:
High Accuracy: 1 GS/s sampling rate ensures precise signal capture for detailed analysis.
Multichannel: Monitor and analyze multiple signals at once, saving time and improving efficiency.
User-Friendly: Intuitive interface with a high-resolution display makes it easy to navigate and interpret results.
