Key Features & Specifications

1. High-Performance Signal Acquisition

• Bandwidth: 200MHz (4 channels)

• Real-time sampling rate: 2GSa/s (1GSa/s in 4-channel mode)

• Memory depth: Up to 10Mpts (expandable)

• Vertical resolution: 8-bit

• Rise time: ≤1.75ns

• Input channels: 4 analog + 1 external trigger

2. Large Interactive Display

• 12.1-inch capacitive touchscreen (1280×800 resolution)

• Multi-touch gesture support (pinch-to-zoom, swipe navigation)

• Adjustable display brightness for various lighting conditions

• Customizable UI layout with drag-and-drop widgets

3. Advanced Triggering & Analysis

• Smart triggering system with 10+ modes including:

  • Edge, Pulse, Video, Slope, Window

  • Runt, Interval, Dropout, Pattern

• Serial protocol decoding (I2C, SPI, UART, CAN, LIN)

• Power analysis package (switching loss, harmonics, modulation)

4. Comprehensive Measurement Tools

• 38 automated measurements (including power parameters)

• Advanced math functions (FFT, integration, differentiation)

• Waveform recording & playback (up to 100,000 frames)

• Mask limit testing with statistical analysis

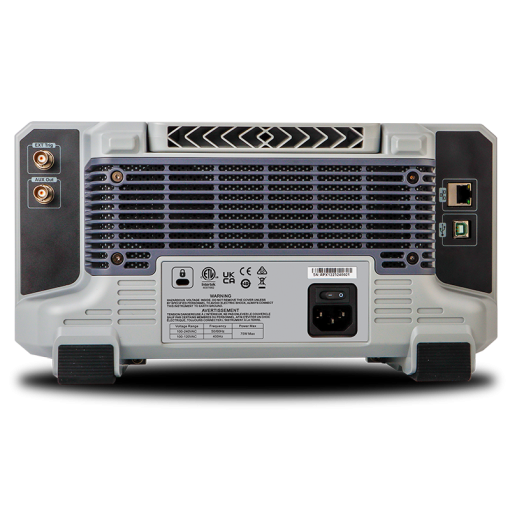

5. Connectivity & Expansion

• Dual USB 3.0 ports (host/device)

• LAN (1Gbps) & WiFi 5 connectivity

• HDMI output for external display

• Supported file formats: PNG, BMP, CSV, MAT, REF

6. Specialized Features

• Bode plot function (frequency response analysis)

• Built-in 25MHz DDS signal generator (option)

• Web control interface for remote operation

• Multi-language support with on-screen keyboard

Package Contents

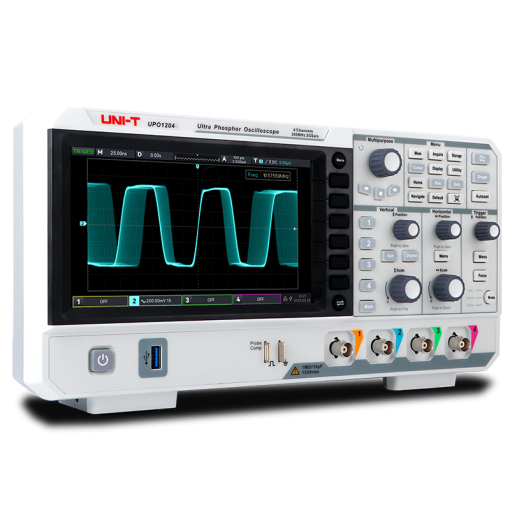

• UPO1204 main unit

• Four 300MHz passive probes

• Power adapter and cable

• USB Type-C cable

• Quick start guide

• Certificate of calibration

Applications

• Embedded system development (multi-processor debugging)

• Power electronics design (inverter analysis, SMPS testing)

• Automotive electronics (CAN/LIN bus analysis)

• Research & education (advanced electronics labs)

• Industrial maintenance (equipment troubleshooting)

Why Choose UPO1204?

🔹 Large 12.1" touchscreen for superior workflow 🔹 True 4-channel 200MHz performance 🔹 Professional analysis tools including power measurements 🔹 Future-ready connectivity with WiFi 5 and USB 3.0 🔹 Expandable functionality with optional accessories

Ideal for: Electronics engineers, R&D labs, university research, power electronics specialists, and advanced hobbyists who demand professional-grade performance with intuitive operation.
