Key Features:

1. High-Performance Signal Analysis

• Bandwidth: 100 MHz

• Real-Time Sampling Rate: 1 GSa/s

• Memory Depth: Up to 10 Mpts (expandable)

• Vertical Resolution: 8-bit

• Input Channels: 2 analog + 1 external trigger

• Rise Time: ≤3.5 ns

2. Large & Intuitive Display

• 7-inch TFT LCD (800×480 resolution) for clear waveform visualization

• Multi-level brightness adjustment for optimal viewing in different lighting conditions

• User-friendly interface with intuitive menu navigation

3. Advanced Triggering System

• Multiple Trigger Modes: Edge, Pulse, Video, Slope, Alternate

• Trigger Sensitivity & Holdoff for stable waveform capture

• External Trigger Input for synchronization

4. Powerful Measurement & Analysis Tools

• Auto-measurement (Vpp, Vmax, Vmin, Freq, Period, Rise/Fall Time, etc.)

• FFT (Fast Fourier Transform) for frequency domain analysis

• Cursor & Track Measurements for precise data inspection

• Math Functions (+, -, ×, ÷, FFT)

5. Connectivity & Storage

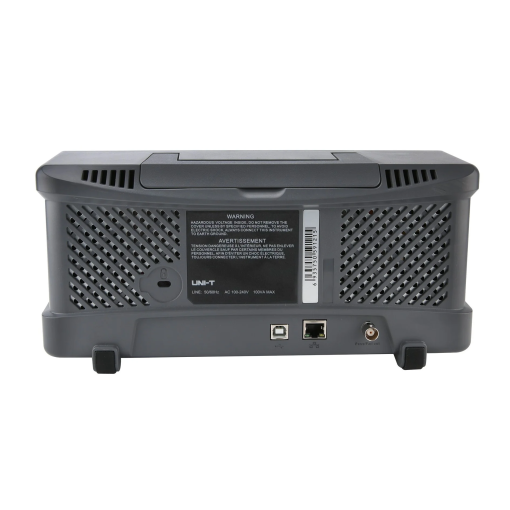

• USB Host & Device Ports for data transfer and firmware updates

• LAN & Optional WiFi for remote control and network connectivity

• Save/Load Waveforms & Settings (Supports BMP, PNG, CSV formats)

6. Additional Features

• Pass/Fail Mask Testing for quality control

• Built-in Help System for quick reference

• Multi-language Support (English, Chinese, etc.)

• Compact & Portable Design for lab or field use

Applications:

• Circuit debugging & design

• Power electronics analysis

• Automotive & industrial diagnostics

• Education & research

• Telecommunications & embedded systems

Package Includes:

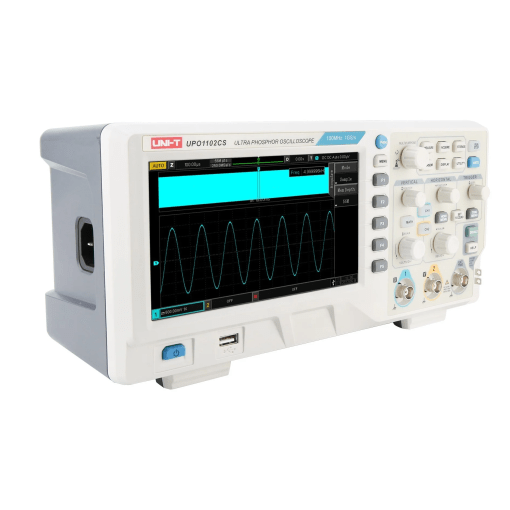

• UNI-T UPO1102CS Oscilloscope

• Passive Probes (2×, 200 MHz)

• Power Cable

• USB Cable

• User Manual

Why Choose the UNI-T UPO1102CS?

✔ High-speed sampling & deep memory for accurate signal capture ✔ Large display & intuitive controls for ease of use ✔ Versatile triggering & analysis tools for complex waveforms ✔ Multiple connectivity options for data sharing & remote access

Ideal for professionals and enthusiasts, the UPO1102CS combines performance, reliability, and affordability in a compact design.

Order yours today and enhance your testing capabilities!
