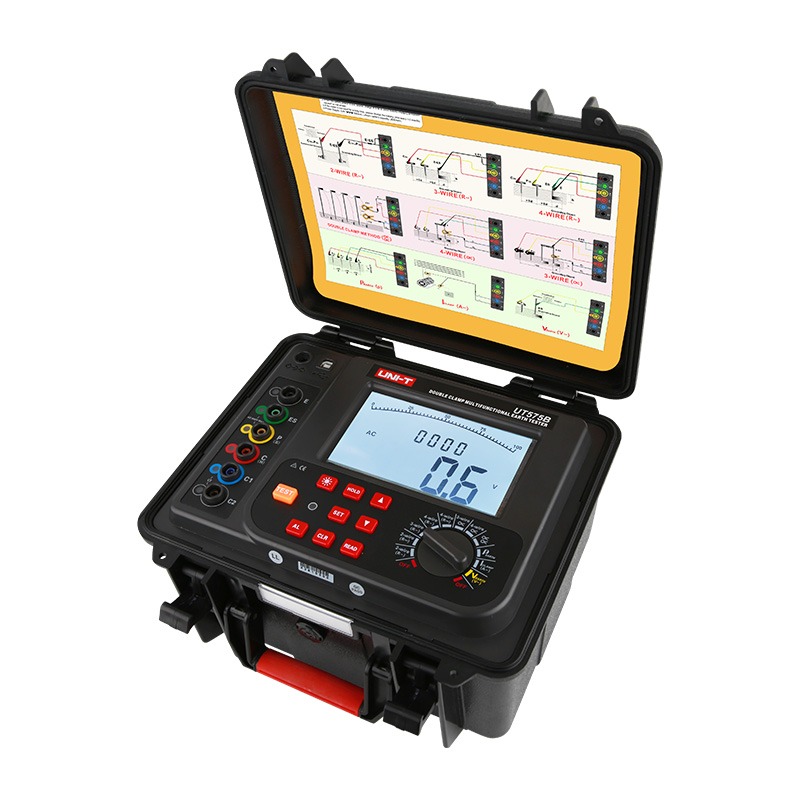

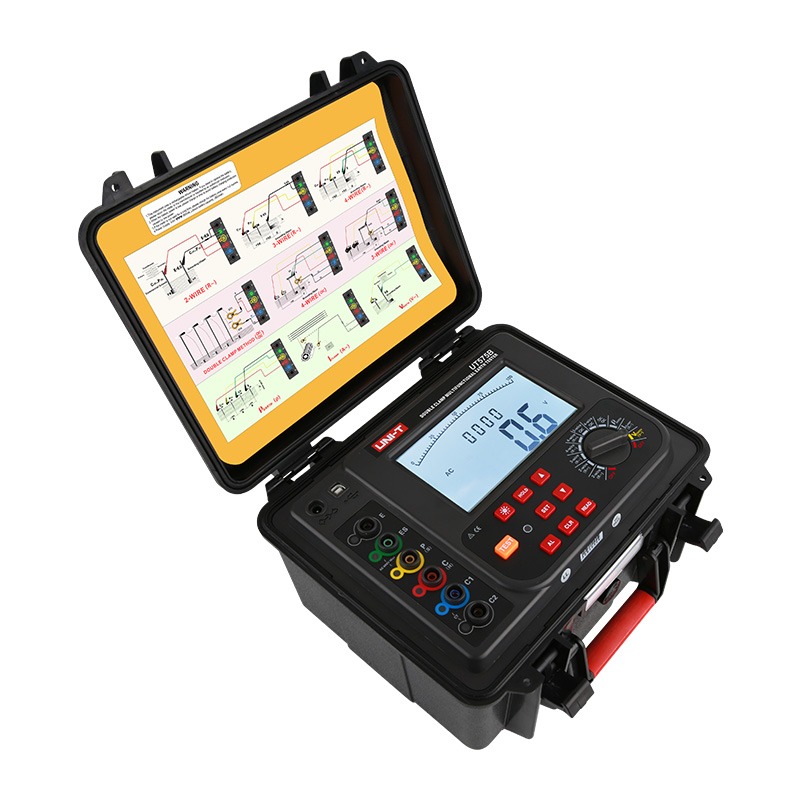

UNI-T UT575B Double-Clamp Multifunctional Earth Tester
In Stock
Categories: UNI-T
Description
Key Features & Benefits
1. 4-in-1 Multifunctional Testing
-
Earth Resistance (0.01Ω–30kΩ)
-
Insulation Resistance (0.01MΩ–30MΩ)
-
Continuity Testing (0.01Ω–300Ω)
-
Soil Resistivity (2-pole/4-pole method)
2. Dual-Clamp Non-Intrusive Measurement
-
No disassembly required—test live systems safely
-
Double-clamp design eliminates need for auxiliary electrodes
3. High Accuracy & Wide Range
-
±1.5% accuracy for reliable diagnostics
-
Auto frequency anti-interference (128Hz/111Hz/105Hz/94Hz)
4. Safety & Durability
-
CAT IV 600VÂ safety rating for harsh environments
-
IP54 protection against dust/moisture

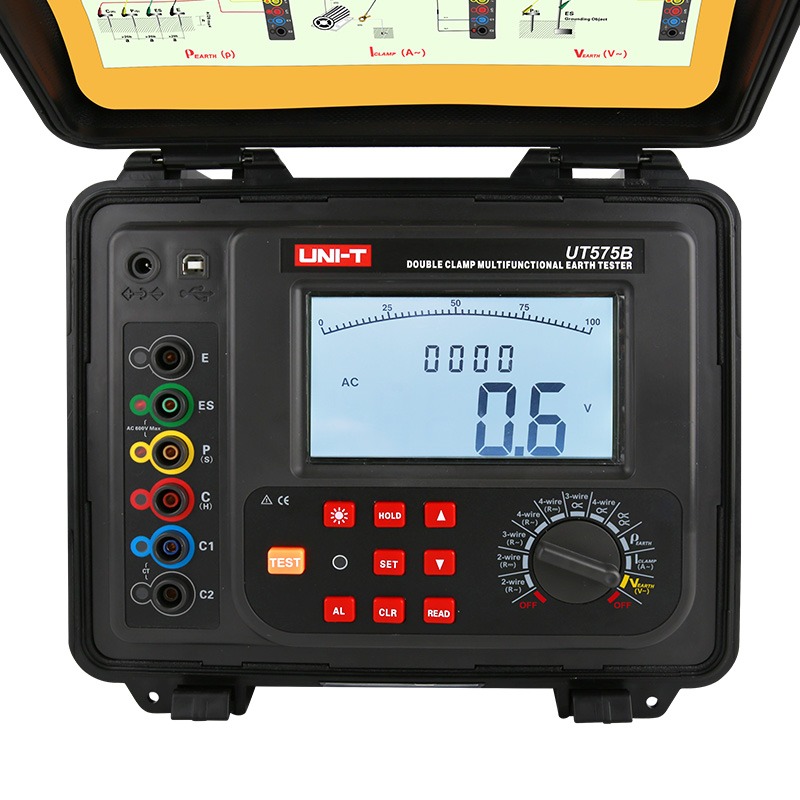

5. User-Friendly Design
-
Backlit LCDÂ with bar graph display
-
Data Hold & MAX/MINÂ recording
-
USB data export for reports
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| Earth Resistance | 0.01Ω–30kΩ | ±1.5% ±0.01Ω |
| Insulation Resistance | 0.01MΩ–30MΩ | ±2% ±0.01MΩ |
| Continuity | 0.01Ω–300Ω | ±1.5% ±0.01Ω |
| Soil Resistivity | 0.01Ωm–9999kΩm | ±2% ±0.01Ωm |
| Clamp Diameter | 50mm (max) | |
| Safety Standard | CAT IV 600V | IEC 61010-1 |
| Power Supply | 8Ă— AA batteries (included) | 30h continuous use |

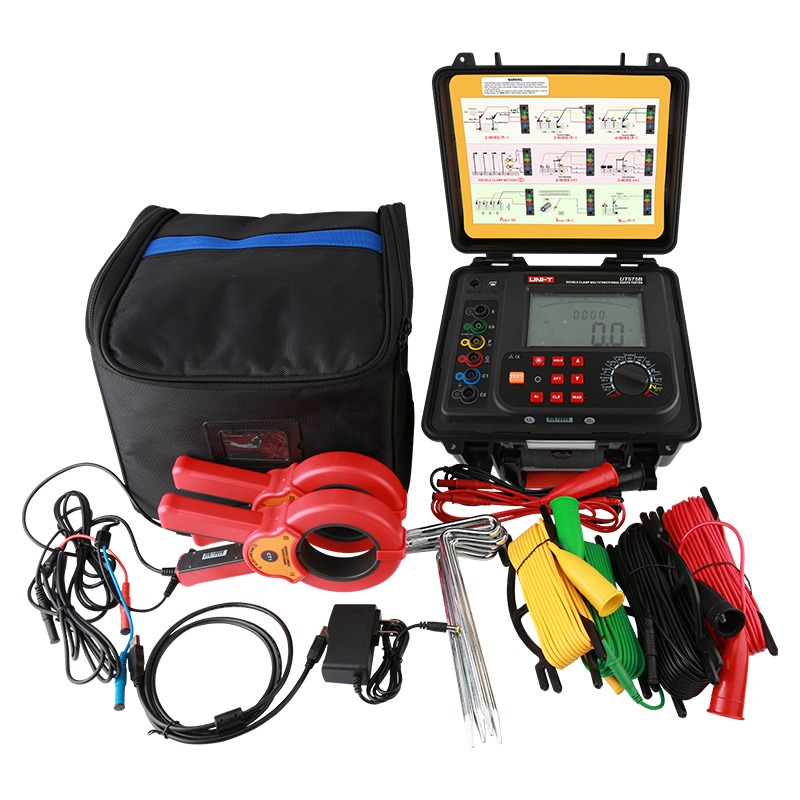

Package Includes
-
UT575B Main Unit
-

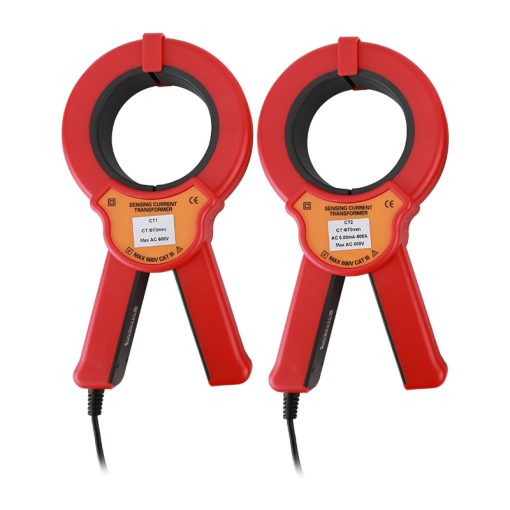

2Ă— Clamp Sensors
-
Test Leads & Probes
-
8Ă— AA Batteries
-
Carrying Case
-
USB Cable & Software
-
User Manual
Why Choose the UT575B?
✅ Saves time—no electrode setup needed ✅ Versatile—replaces multiple testers ✅ Safer—CAT IV rating for live systems ✅ Portable—all-in-one field solution
Complies with:Â IEC 61557, IEC 61010
