Key Features:

1. High-Performance Signal Acquisition

• Bandwidth: 200 MHz

• Real-Time Sampling Rate: 2 GSa/s (1 GSa/s per channel)

• Memory Depth: Up to 10 Mpts (expandable)

• Vertical Resolution: 8-bit

• Input Channels: 2 analog + 1 external trigger

• Rise Time: ≤1.75 ns

2. Large & Clear Display

• 7-inch TFT LCD (800×480 resolution) with adjustable brightness

• Intuitive user interface with multi-level menus

• Split-screen mode for comparing waveforms

3. Advanced Triggering System

• Multiple Trigger Modes: Edge, Pulse, Video, Slope, Window, Timeout, Runt, Interval

• Trigger Holdoff & Sensitivity for stable signal capture

• External Trigger Input for synchronization

4. Comprehensive Measurement & Analysis Tools

• Auto-measurements (Vpp, Vrms, Freq, Period, Rise/Fall Time, Duty Cycle, etc.)

• FFT (Fast Fourier Transform) for spectral analysis

• Cursor & Track Measurements for precise data inspection

• Math Functions (+, -, ×, ÷, FFT, etc.)

5. Connectivity & Storage Options

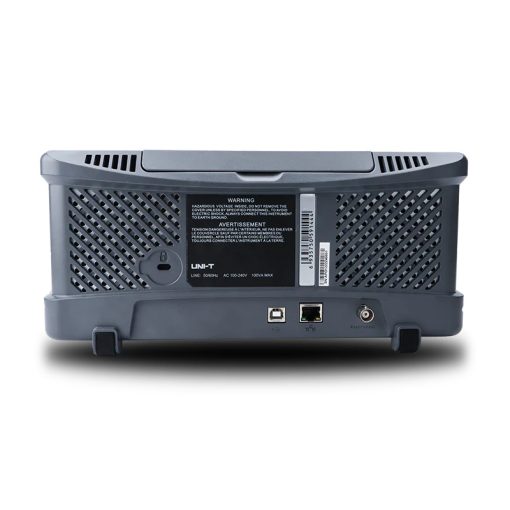

• USB Host & Device Ports for data transfer and firmware updates

• LAN & Optional WiFi for remote control and network connectivity

• Save/Load Waveforms & Settings (Supports BMP, PNG, CSV formats)

6. Additional Features

• Pass/Fail Mask Testing for automated quality checks

• Built-in Help System for quick reference

• Multi-language Support (English, Chinese, etc.)

• Compact & Robust Design for lab or field use

Applications:

• High-speed digital circuit debugging

• Power electronics & motor drive analysis

• Automotive & industrial diagnostics

• Telecommunications & RF signal testing

• Education & R&D labs

Package Includes:

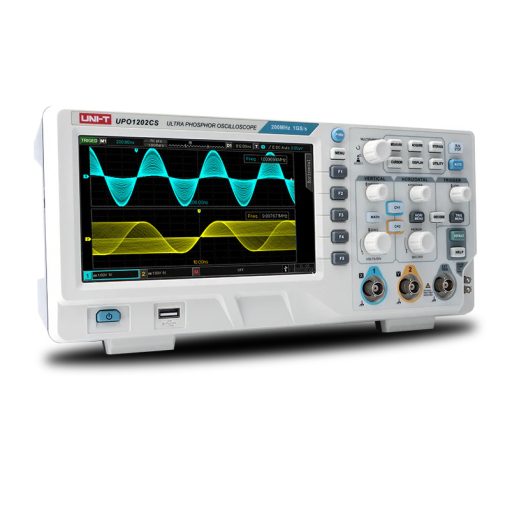

• UNI-T UPO1202CS Oscilloscope

• Passive Probes (2×, 300 MHz)

• Power Cable

• USB Cable

• User Manual

Why Choose the UNI-T UPO1202CS?

✔ Higher bandwidth (200 MHz) & faster sampling (2 GSa/s) for detailed signal analysis ✔ Deep memory (10 Mpts) for capturing long-duration waveforms ✔ Advanced triggering & FFT for complex signal diagnosis ✔ Multiple connectivity options (USB, LAN, WiFi) for flexible operation

Ideal for engineers, technicians, and researchers, the UPO1202CS delivers professional-grade performance at an affordable price.

Upgrade your test bench with the UPO1202CS today!
