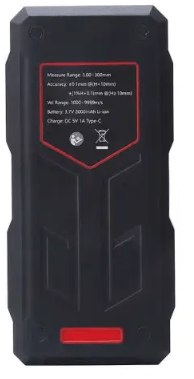

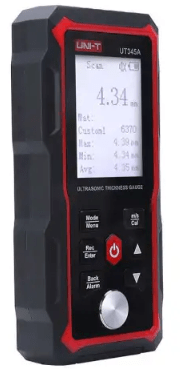

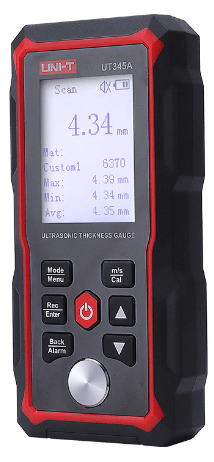

UNI-T UT345A Ultrasonic Thickness Gauge

Name: UNI-T UT345A Ultrasonic Thickness Gauge
Brand: Electra Store
SKU: UT-345A
Price: 4200.00 EGP
Availability: OutOfStock

Electra Store SKU: UT-345A

4,200.00 EGP

Available on Backorder

Quantity

Share to

Categories: UNI-T

Overview

UT345A is an intelligent ultrasonic thickness gauge that adopts the latest high-performance and low-power consumption microprocessor technology. Based on the principle of ultrasonic measurement, it can measure the thickness and sound velocity of metal and other materials. It can detect the thinning of pipes and pressure vessels after corrosion, and can make accurate measurements of plates and machined parts. The gauge can be widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace, and other fields.

Description

Specifications of UT345A Ultrasonic Thickness Gauge

Specifications
Display	2.4″ LCD
Measurement range	1.00~300.00mm
Sound velocity range	(1000～9999) m/s
Unit	mm/in
Accuracy	H<10mm, ±0.1mm; H≥10mm, ±(1%H 0.1)mm
Lower limit of pipe measurement	Φ20×3mm (steel)
Data storage	300 groups, including material, sound velocity, unit, measured value, MAX, MIN and AVG of each group
Main functions	Single measurement, continuous measurement, alarm, sound velocity measurement, auto calibration
Charging specification	DC 5V 1A, Type-C interface
Operating time (full battery)	About 16h
Operating temperature and humidity	0℃~40℃ 10%RH~80%RH
Storage temperature and humidity	-10℃~50℃ 10%RH~70%RH
General Characteristics
Battery	Built-in lithium battery (3.7V 2000mAh)
Product color	Red and grey
Product net weight	175g
Product size	140×66×28.5mm
