Product Description

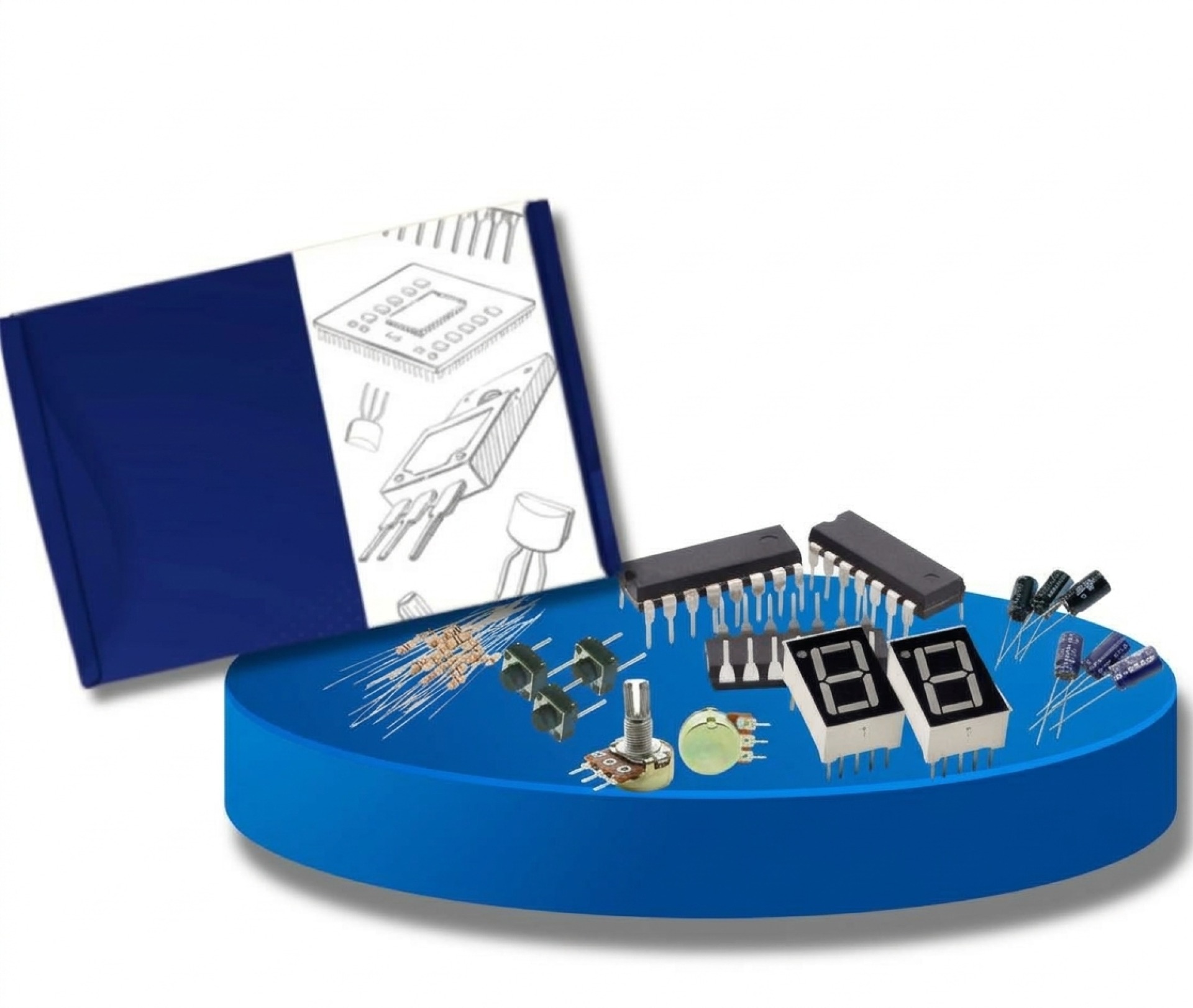

The Digital Logic 2 circuit kit from SSP is a ready-to-build set of logic ICs, a display, and supporting passive parts, put together for Computer & Communication students at Alexandria University for the 2026–2027 academic year. Instead of tracking down each chip, resistor, and capacitor separately, students get the parts for counting, timing, and display circuits in one package.

The core of the kit is a group of classic 74-series logic ICs. A 7476 dual J-K flip-flop with preset and clear stores state, a 74163 synchronous 4-bit binary counter and a 74190 synchronous up/down decade counter handle counting, and a 74195 4-bit parallel-access shift register moves and holds data. A NE555 / LM555 timer in a DIP-8 package supplies the clock pulses that drive them. A 7447 BCD to 7-segment decoder/driver, with 15V open-collector outputs, translates the counter output into segment patterns for the 5161BS common anode 7-segment display.

In practice, these parts form a chain. The 555 generates pulses, the counters or shift register step through their states on each pulse, the decoder converts the 4-bit result into a readable digit, and the display shows it. The push buttons let you step a circuit by hand, so you can watch one clock cycle at a time before switching to the timer. The 1K, 10K, and 100K potentiometers let you vary resistance in timing and control circuits, which makes it easy to slow a clock down for observation or speed it up.

The fixed resistors (1K and 100K, 1/4 watt, 5%) and the ceramic and electrolytic capacitors cover the usual supporting roles, such as timing networks, pull-up and pull-down resistors, current limiting, and supply decoupling. Having them in the same kit means fewer mismatched parts and less time spent sourcing small components.

Most items come in pairs, and the 7476 flip-flops and push buttons come in fours. That spare quantity is useful when a design needs several stages, for example cascading counters or using more than one flip-flop in a sequence. All ICs are in DIP packages, which fit standard breadboards and make circuits easy to rebuild and modify.

This kit suits students preparing for Digital Logic 2 circuit work, anyone practicing sequential logic at home, and teaching assistants who want a consistent parts set. Because the components match the course list, it saves the guesswork of buying a similar-looking but different part.

Features

• Covers the full counting, storing, shifting, and display chain of a digital logic project

• Timer IC supplies clock pulses for step-by-step or continuous circuit operation

• Up/down decade counter and binary counter for different counting designs

• BCD decoder/driver paired with a common anode display for visible output

• Three potentiometer values for adjusting timing and control resistance

• Push buttons for manual clock, reset, and input control

• Spare quantities of most parts allow multi-stage and cascaded designs

• DIP packages suited to standard breadboards

• Components grouped to match the course requirements, avoiding mismatched parts

Specifications

• Timer IC: NE555 / LM555, DIP-8

• BCD to 7-Segment Decoder/Driver: 7447, DIP, 15V open-collector outputs

• Flip-Flop: 7476, DIP, dual J-K with preset and clear

• Binary Counter: 74163, DIP, synchronous 4-bit with synchronous clear

• Decade Counter: 74190, DIP, synchronous up/down

• Shift Register: 74195, DIP, 4-bit parallel-access

• 7-Segment Display: 5161BS, common anode

• Resistors: 1K Ohm and 100K Ohm, 1/4 Watt, 5%

• Potentiometers: 1K Ohm, 10K Ohm, 100K Ohm

• Push Buttons: 6x6x6 mm tack switch, standard type

• Capacitors: 10nF ceramic, 100nF 50V ceramic, 1uF 50V aluminum electrolytic, 10uF 50V aluminum electrolytic, 150uF 35V

Applications

• Digital Logic 2 circuit assignments and practice

• Binary and decade counter circuits

• Up/down counting circuits with 7-segment display output

• Shift register and data storage experiments

• 555 timer clock and pulse generator circuits

• J-K flip-flop based sequential circuits

• Prototyping on a breadboard for university coursework

• Self-study of sequential logic design

Package Includes

• 2x 10NF / 103 Ceramic Capacitor

• 2x 100NF 50V Ceramic Capacitor

• 2x 1UF 50V Aluminum Electrolytic Capacitor

• 2x 10UF 50V Aluminum Electrolytic Capacitor

• 2x 150UF 35V Capacitor

• 2x 1K Ohm Potentiometer

• 2x 10K Ohm Potentiometer

• 2x 100K Ohm Potentiometer

• 5x Resistor 1K Ohm 1/4 Watt 5%

• 5x Resistor 100K Ohm 1/4 Watt 5%

• 4x Push Button (6x6x6 mm Tack Switch, Standard Type)

• 2x 7-Segment Common Anode 5161BS

• 2x NE555 / LM555 Timer IC, DIP-8

• 2x 7447 DIP BCD to 7-Segment Decoder / Driver

• 4x 7476 DIP Dual J-K Flip-Flop with Preset and Clear

• 2x 74163 DIP Synchronous 4-Bit Binary Counter

• 2x 74190 DIP Synchronous Up/Down Decade Counter

• 2x 74195 DIP 4-Bit Parallel-Access Shift Register
