Product Description

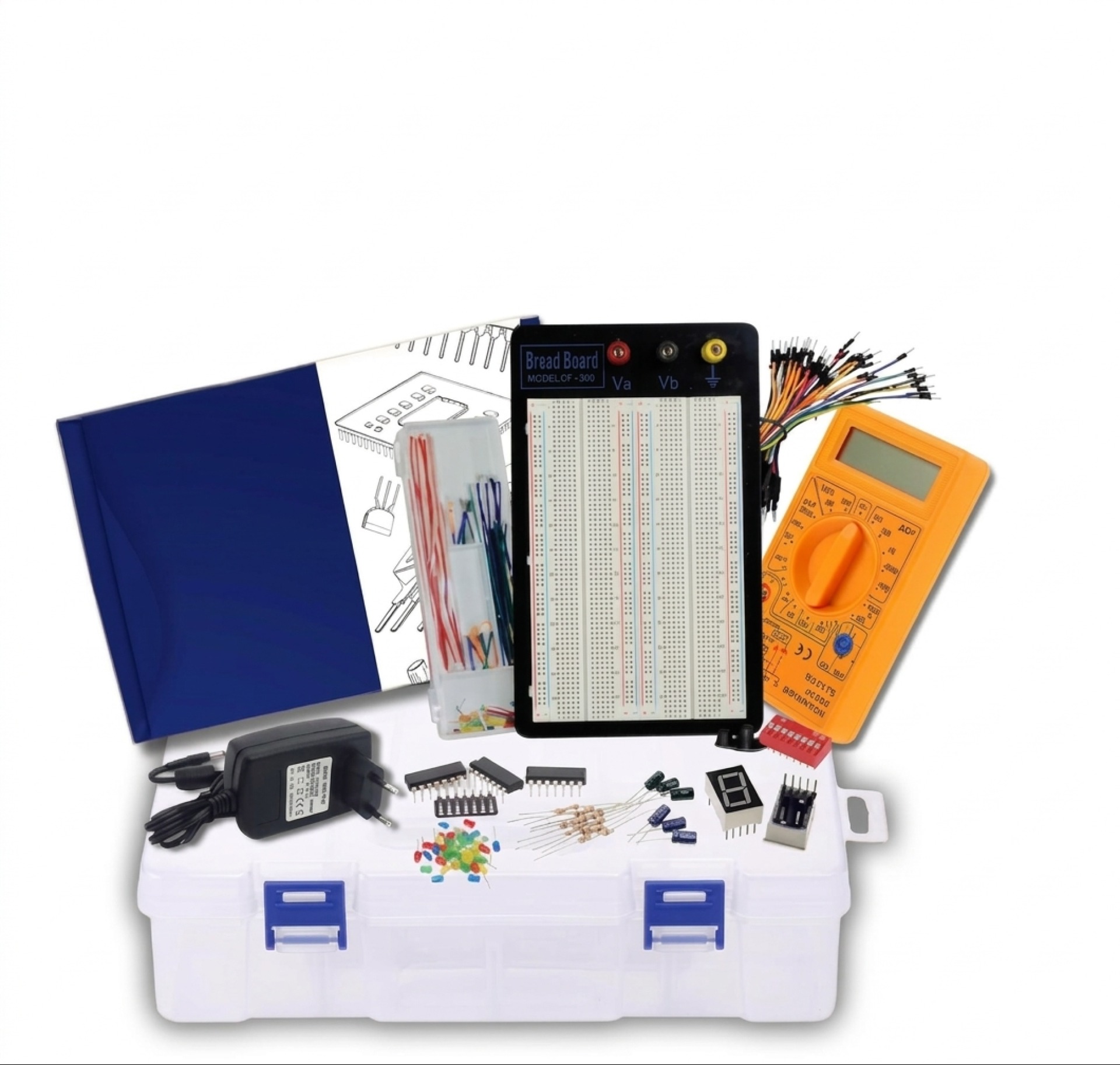

The AIU electronics engineering kit for Electronics Engineering & Communications students is a compact, self-contained lab set for the 2026–2027 academic year. It packs a breadboard, a power supply setup, a DT-830D multimeter, and a focused selection of digital logic ICs into a single organized case, so a student can start building and testing circuits as soon as the box is opened.

Power and wiring are handled first. A 5V 1A wall adapter feeds a DC input module with a DC jack and switch that fits onto the breadboard, giving a clean way to turn the whole circuit on and off. The breadboard itself is a 1660 tie-point solderless board (ZY-204), with enough room for several ICs plus their supporting parts. A BB-J65 set of 65 connecting jumper wires handles the connections between them.

The logic parts cover the standard building blocks of a digital design course. Four each of the 7404 hex inverter, 7408 AND, 7432 OR, and 7486 XOR gates and two 7400 NAND gates let you build and compare basic functions, including adders, comparators, and custom logic. For memory elements, the kit includes 7474 dual D positive-edge-triggered flip-flops and 7476 dual J-K flip-flops, both with preset and clear, so the behavior of the two flip-flop types can be studied side by side. Two NE555 / LM555 timer ICs provide clock pulses, and two 7447 decoder/drivers with two 5161BS common anode 7-segment displays turn binary values into visible digits.

Outputs and inputs are covered by twenty 5mm LEDs and two long-leg 8-way DIP switches. The resistor selection is weighted toward the most common job in a logic lab: twenty-five 330 Ohm resistors for limiting current through LEDs and display segments, with a few 1K, 10K, and 100K Ohm resistors for pull-ups and timing. One piece of each capacitor value, from 1nF ceramic to 1000uF electrolytic, gives enough variety to try timing and filtering ideas around the 555 without a separate order.

The DT-830D digital multimeter adds the measuring side of the lab. Its 3½-digit display shows up to 1999 counts, and it reads DC voltage from 200mV to 1000V, AC voltage from 200V to 750V, DC current up to 10A, and resistance, with diode and transistor tests and a buzzer for continuity. When a circuit does not behave, a quick continuity check often finds the problem before anything else does.

A double-layer F240 component box, measuring 234x168x62 mm, keeps the ICs, resistors, and capacitors sorted and easy to carry between home and the lab. This is a good fit for students who want the lab essentials in one tidy, matched package, rather than collecting parts piece by piece.

Features

• Complete lab set with power, wiring, parts, and measuring tool in one package

• Switched breadboard power module for quick on/off control

• Large breadboard with room for multi-IC designs

• Gate ICs in quantity for building adders, comparators, and custom logic

• D and J-K flip-flops for comparing two sequential logic styles

• Timer ICs for clock pulse generation

• Decoder/drivers and common anode displays for numeric output

• Large supply of 330 Ohm resistors for LED and display current limiting

• Multimeter with buzzer for continuity checks and measurements

• Double-layer component box for organized storage and transport

Specifications

• Breadboard: Solderless, 1660 tie-points, ZY-204

• Wall Power Adapter: 5V DC, 1A

• Breadboard Power Module: DC input module 5V, with DC jack and switch

• Jumper Wires: BB-J65, 65 wires, for breadboard and Arduino

• Logic Gate ICs (DIP): 7400 quad 2-input NAND, 7404 hex inverter, 7408 quad 2-input AND, 7432 quad 2-input OR, 7486 quad 2-input XOR

• Display Decoder (DIP): 7447, BCD to 7-segment decoder/driver, 15V open-collector outputs

• Flip-Flops (DIP): 7474 dual D positive edge triggered with preset and clear, 7476 dual J-K with preset and clear

• Timer IC: NE555 / LM555, DIP-8

• 7-Segment Display: 5161BS, common anode

• DIP Switch: 8-way, long leg

• LEDs: 5mm, round, assorted colors

• Resistors: 330 Ohm, 1K Ohm, 10K Ohm, 100K Ohm, 1/4 Watt, 5%

• Electrolytic Capacitors: 1uF 50V, 10uF 50V, 100uF 50V, 1000uF 25V (aluminum)

• Ceramic Capacitors: 1nF, 10nF, 100nF 50V

• Digital Multimeter: DT-830D, with buzzer

• Multimeter Display: 3½-digit LCD, max display 1999

• Multimeter Measurements: DC voltage (200mV to 1000V), AC voltage (200V to 750V), DC current (up to 10A), resistance

• Multimeter Functions: Diode test, transistor hFE test, continuity buzzer, square wave output, overload protection, low-battery indicator

• Component Box: F240, double layer, 234x168x62 mm

Applications

• Building and verifying logic gate circuits

• Adder, comparator, and custom combinational logic projects

• D and J-K flip-flop sequential circuits

• 555 timer clock and pulse circuits

• BCD to 7-segment display circuits

• Measuring voltage, resistance, and continuity in lab work

• University electronics and communications lab sessions

• Self-study with an organized, portable parts kit

Package Includes

• 1x Breadboard Solderless 1660 Tie-points ZY-204

• 1x F240 234x168x62 mm Double Layer Component Box

• 1x Wall Power Adapter 5Vdc 1A

• 1x DC Input Module 5V with DC Jack and Switch for Breadboard

• 1x BB-J65 Connecting Jumper Wires for Breadboard & Arduino (65 Wire)

• 1x Digital Multimeter DT-830D (With Buzzer)

• 2x 7400 DIP Quad 2-Input Logic NAND Gate

• 4x 7404 DIP Hex Inverter Logic NOT Gate

• 4x 7408 DIP Quad 2-Input Logic AND Gate

• 4x 7432 DIP Quad 2-Input Logic OR Gate

• 2x 7447 DIP BCD to 7-Segment Decoder / Driver

• 2x 7474 DIP Dual D Positive Edge Triggered Flip-Flop with Preset and Clear

• 2x 7476 DIP Dual J-K Flip-Flop with Preset and Clear

• 4x 7486 DIP Quad 2-Input Logic XOR Gate

• 2x NE555 / LM555 Timer IC, DIP-8

• 2x DIP Switch 8 Way, Long Leg

• 20x 5mm LED Lights, Round, All Colors

• 2x 7-Segment Common Anode 5161BS

• 25x Resistor 330 Ohm 1/4 Watt 5%

• 2x Resistor 1K Ohm 1/4 Watt 5%

• 2x Resistor 10K Ohm 1/4 Watt 5%

• 4x Resistor 100K Ohm 1/4 Watt 5%

• 1x 1UF 50V Aluminum Electrolytic Capacitor

• 1x 10UF 50V Aluminum Electrolytic Capacitor

• 1x 100UF 50V Aluminum Electrolytic Capacitor

• 1x 1000UF 25V Aluminum Electrolytic Capacitor

• 1x 1NF Ceramic Capacitor

• 1x 10NF Ceramic Capacitor

• 1x 100NF 50V Ceramic Capacitor
