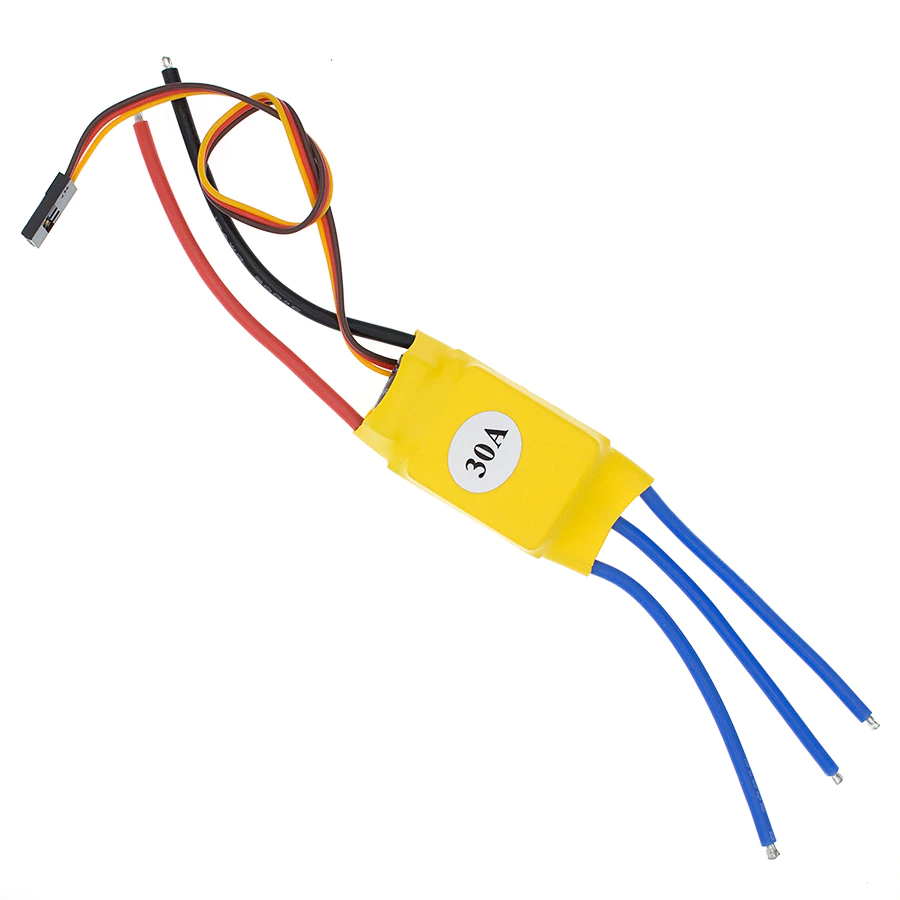

ESC (Speed Controller for Brushless Motor) 30A with Bare Wires

🔹 Key Features

✔ High-Current Handling –

• Continuous 30A / Burst 40A (5s)

• 2-6S LiPo/Li-ion (7.4V–22.2V)

✔ Advanced Motor Control –

• SimonK/BLHeli firmware (smooth acceleration)

• 8kHz PWM frequency for precise RPM adjustment

• Auto LiPo cell detection

✔ Robust Design –

• Bare wire leads (XT60/Deans compatible)

• Aluminum heatsink for thermal management

• Waterproof coating (optional)

✔ Easy Setup –

• Calibration mode for throttle range

• BEC Output: 5V/2A (for receiver/servos)

🔹 Applications

• FPV Drones – Quadcopters, hexacopters

• RC Vehicles – Cars, boats, planes

• DIY Robotics – Robotic arms, CNC spindles

• E-Bike/Scooter Prototypes

🔹 Wiring Guide

1. Motor Wires (3x) → Connect to brushless motor (A/B/C phases)

2. Battery Input (2x) → LiPo/Li-ion pack (observe polarity!)

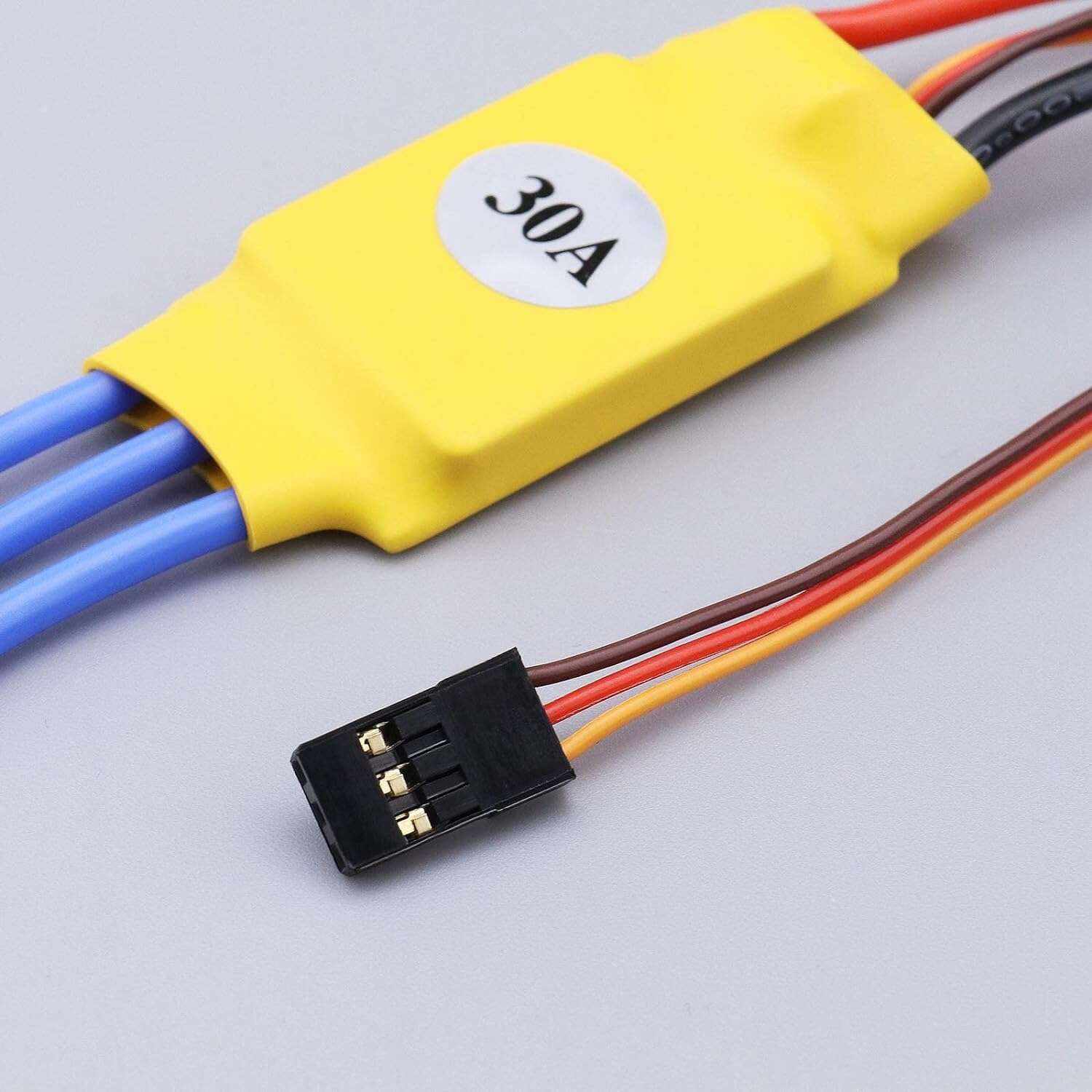

3. Signal Wire (3-pin) → PWM receiver (e.g., flight controller)

🔹 Package Includes

• 1× 30A Brushless ESC (bare wires)

• Heat shrink tubing (for insulation)

🔹 Why Choose This ESC?

✅ Lightweight (≈20g) vs. bulky ESCs ✅ Customizable – Solder your preferred connectors ✅ Smooth Start-Up – No cogging/jittering

⚠ Safety Notes

• Always use a current-rated connector (XT60/XT90 for >20A)

• Program brake/soft-start via TX (if supported)

• Test without props first!
