Key Features:

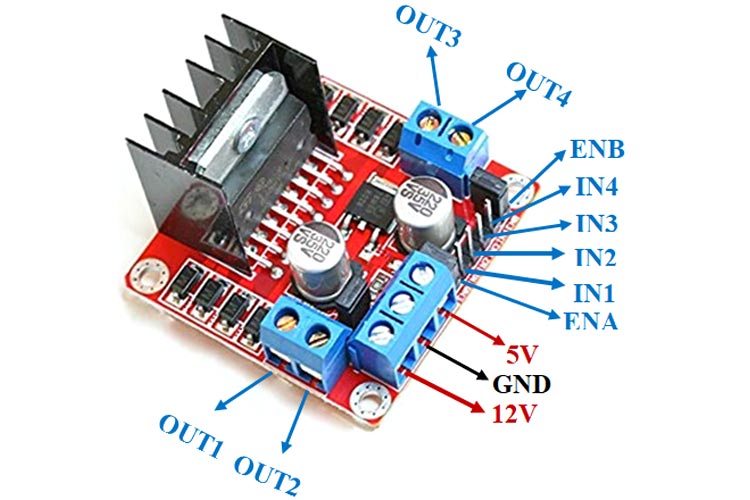

✔ Dual H-Bridge Design – Controls two DC motors (or one stepper motor) bidirectionally with up to 2A per channel (peak 3A). ✔ Wide Voltage Range – Supports motor voltage from 5V to 35V, making it compatible with 6V, 12V, and 24V motors. ✔ Logic-Level Inputs – Works with 5V TTL/CMOS signals (Arduino, Raspberry Pi, PIC, etc.). ✔ Built-in Protection – Features thermal shutdown, overcurrent protection, and freewheeling diodes for safe operation. ✔ Easy Interface – Simple ENA, ENB, IN1-IN4 control pins for PWM speed and direction control. ✔ Heat Sink & Screw Terminals – Includes an aluminum heat sink and terminal blocks for secure motor and power connections.

Specifications:

• Driver IC: L298N

• Operating Voltage: 5V – 35V (motor), 5V (logic)

• Max Current: 2A per channel (3A peak)

• Control Signals: TTL/CMOS compatible

• Mounting Holes: For secure installation

• Dimensions: [Include if available, e.g., 43mm x 43mm]

Applications:

• Robotics (wheeled robots, arms)

• DIY projects (CNC, 3D printers, RC vehicles)

• Automation systems (conveyor belts, actuators)

🔧 Powerful. Precise. Reliable.
