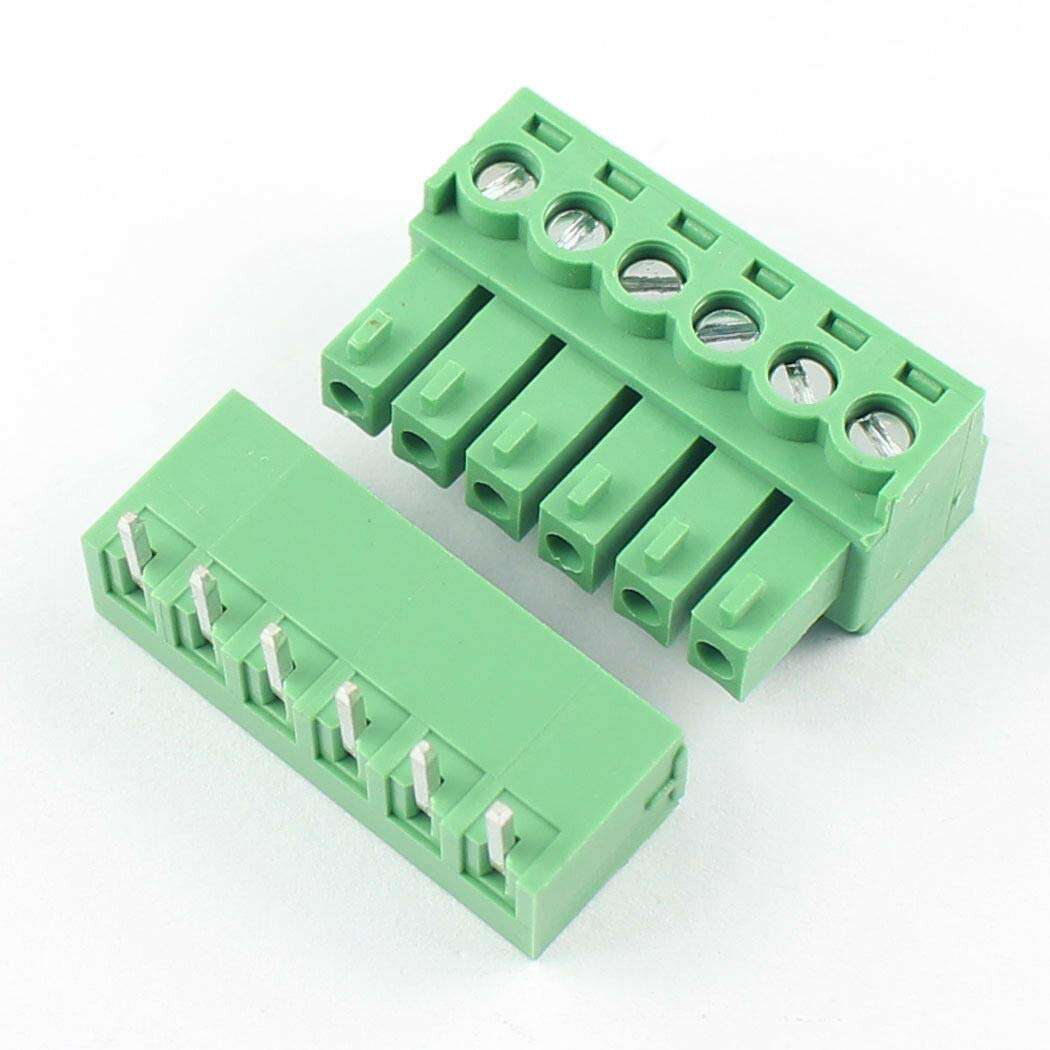

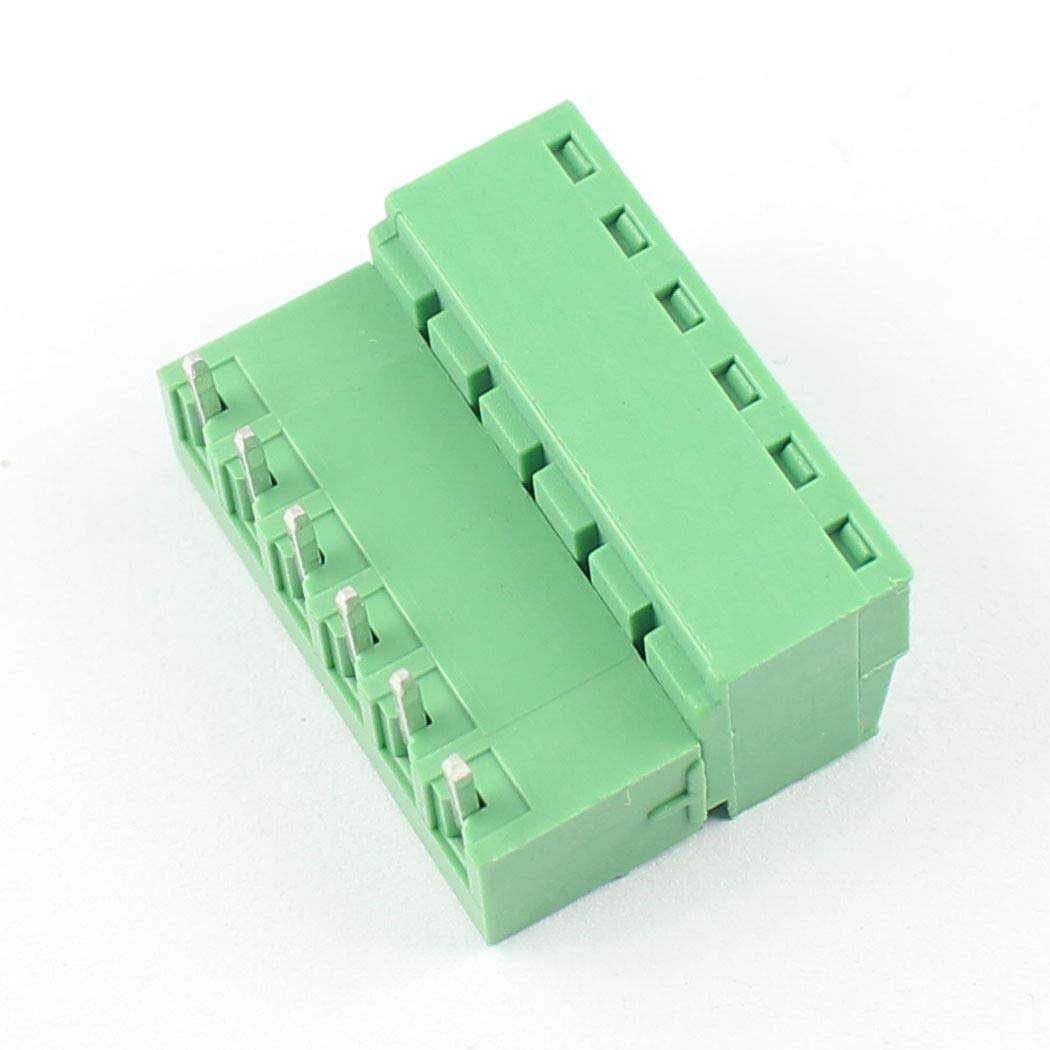

Pluggable Terminal Block 6 Pin Pitch 3.81mm

15.00 EGP

compact, high-density terminal block featuring 6 pins with a 3.81mm pitch, designed for secure, modular wiring in space-constrained PCB applications. The pluggable male + female design enables tool-free assembly and maintenance, making it ideal for industrial controls, automation, and multi-wire connections.

SKU: MP-22364 Category: Tags: ,

Description

🔑 Key Features:

✔ Pluggable Design – Male header + female socket for quick mating/disconnection
✔ 3.81mm Pitch – Space-saving yet prevents short circuits
✔ Screw Clamp Mechanism – Secures 24–16 AWG wires (0.2–1.5mm²)
✔ High-Current Rating – 10A @ 250V AC/DC (tin-plated brass contacts)
✔ PA66 Housing (UL94 V-0) – Flame-retardant & heat-resistant (-40°C to +105°C)
✔ Straight PCB Pins – Vertical through-hole mounting for stable integration
✔ Wide Compatibility – Works with standard 3.81mm terminal blocks


📌 Applications:

  • Industrial PCBs – PLCs, motor controllers, DIN rail systems

  • Power Distribution – Multi-wire AC/DC connections

  • LED Lighting – RGB/W control wiring

  • Prototyping – Breadboard-friendly reusable links

  • Home Appliances – Secure internal wiring


📦 Package Includes:

  • 1 × 6-Pin Male Terminal Block (Straight Pin, 3.81mm Pitch)

  • 1 × Matching Female Socket

  • (Optional) Bulk packs available


⚙ Technical Specifications:

Parameter Value
Poles 6-pin
Pitch 3.81mm
Current Rating 10A (250V AC/DC)
Voltage Rating 250V AC/DC
Wire Range 24–16 AWG (0.2–1.5mm²)
Contact Material Tin-plated brass
Housing Material PA66 (UL94 V-0)
Mounting Type Through-hole PCB

🔧 Why Choose This Terminal Block?

✅ High-density 6-pin design – Ideal for multi-signal/power connections
✅ Tool-free maintenance – Swap wires without soldering
✅ Compact 3.81mm pitch – Fits tight PCB layouts

Note: For high-vibration use, apply thread locker on screws.


SEO Keywords: *6-pin terminal block, 3.81mm pluggable connector, 10A screw terminal, PCB multi-wire terminal*

Need CAD models or custom configurations? Ask now! ⚡
