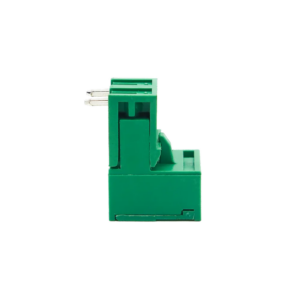

Terminal Block 4Pin Pluggable (Straight Pin) 5.08mm

13.00 EGP

high-performance, modular terminal block featuring 4 pins with a 5.08mm pitch and straight PCB-mount pins, designed for secure, high-current connections in industrial, power distribution, and automation applications. The pluggable male + female design enables tool-free assembly and maintenance, making it ideal for prototyping and permanent installations.

SKU: MP-23748 Category: Tags: ,

Description

🔑 Key Features:

✔ Pluggable Design – Male header + female socket for easy mating/disconnection
✔ Straight PCB Pins – Vertical through-hole mounting for stable PCB integration
✔ 5.08mm Pitch – Prevents arcing and fits 12–24 AWG wires (0.2–4mm²)
✔ High-Current Rating – 15A @ 300V AC/DC (tin-plated brass contacts)
✔ Screw Clamp Mechanism – Ensures vibration-resistant, reusable connections
✔ PA66 Housing (UL94 V-0) – Flame-retardant & heat-resistant (-40°C to +105°C)
✔ Wide Compatibility – Works with standard 5.08mm terminal blocks


📌 Applications:

  • Industrial Automation – PLCs, motor controllers, DIN rail systems

  • Power Supplies – AC/DC input/output terminals

  • LED Drivers & Lighting – High-current multi-wire connections

  • PCB Prototyping – Reusable test points & modular wiring

  • Renewable Energy Systems – Solar inverters, battery management


📦 Package Includes:

  • 1 × 4-Pin Male Terminal Block (Straight Pin, 5.08mm Pitch)

  • 1 × Matching Female Socket

  • (Optional) Bulk pricing for OEM projects


⚙ Technical Specifications:

Parameter Value
Poles 4-pin
Pitch 5.08mm
Current Rating 15A (300V AC/DC)
Voltage Rating 300V AC/DC
Wire Range 12–24 AWG (4–0.2mm²)
Contact Material Tin-plated brass
Housing Material PA66 (Green/Black, UL94 V-0)
Mounting Type Through-hole PCB soldering

🔧 Why Choose This Terminal Block?

✅ Modular & reusable – Swap wires without soldering
✅ High-current capacity – Supports up to 15A for power applications
✅ Space-efficient – 5.08mm pitch balances safety and PCB density

Note: For high-vibration environments, apply thread locker on screws.
