PICKIT 3 – Microchip ICSP Programmer/Debugger

357.50 EGP

Out of stock

PICKIT 3 – Microchip ICSP Programmer/Debugger

SKU: DB-25889 Category: Tags: ,


  • USB (Full speed 12 Mbits/s interface to host PC)
  • Real-time execution
  • MPLAB IDE compatible (free copy included)
  • Built-in over-voltage/short circuit monitor
  • Firmware upgradeable from PC/web download
  • Totally enclosed
  • Supports low voltage to 2.0 volts (2.0v to 6.0v range)
  • Diagnostic LEDs (power, busy, error)
  • Read/write program and data memory of microcontroller
  • Erase of program memory space with verification
  • Freeze-peripherals at breakpoint
  • Program up to 512K byte flash with the Programmer-to-Go

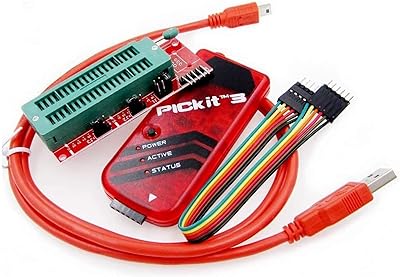

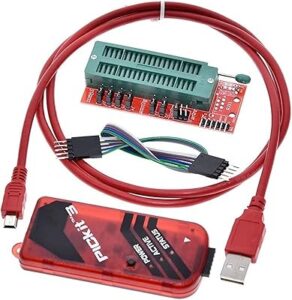

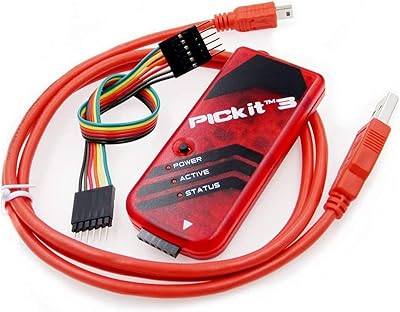

  • Pakcage Included: 1 PICKIT3

                                           1 USB cable                                           1 6pin cable  How to use:Download MPLAB® X IDE (Integrated Development Environment) Program from this link  https://www.microchip.com/mplab/mplab-x-ide and setup it Download suitable Compiler  https://www.microchip.com/mplab/compilers

  • for pic 8bit —> Download xc8 compiler
  • for pic 16 bit –> Download xc16 compiler and so on

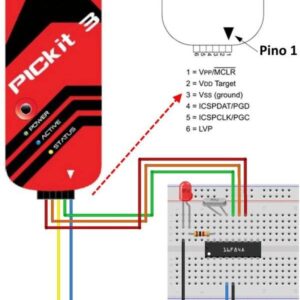

  Creat new standalone project and open new source file (creat main C file)Click on Production and set Configration bitsIf you use external Oscillator, make FOSC to HS To genrate .hex file, Click on production then Build main project then upload your code to Pickit 3 just click on down arrow and choose (Make and program main project)  At first try an error massage will appear as follows:(Target device was not found, couldn’t detect target Voltage VDD)To fix this error Click on Production –> set project configration –> CustomizeSelect Pickit 3 –> Choose Power from option Cat. and check on power target circuit from pickit 3  POWERmp7         Note: Don’t use wires of network cable for hardware connections
