Orange Pi PC
825.00 EGP
It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Raspbian Image, as well as the banana pi Image. It uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM
Out of stock
Description
Orange Pi PC is for anyone who wants to start creating with technology – not just consuming it. It’s a simple, fun, useful tool that you can use to start taking control of the world around you.
Features and User Manual:

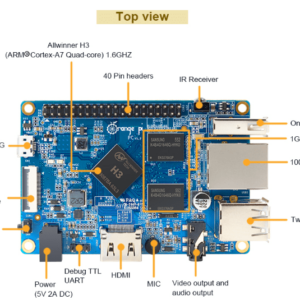

Component Description
Memory 1GB DDR3 (shared with GPU)
CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU ·Mali400MP2 GPU @600MHz ·Supports OpenGL ES 2.0
Onboard Storage TF card (Max. 32GB) / MMC card slot
Onboard Network 10/100M Ethernet RJ45
Video Input A CSI input connector Camera Supports 8-bit YUV422 CMOS sensor interfaceSupports CCIR656 protocol for NTSC and PALSupports SM pixel camera sensorSupports video capture solution up to 1080p@30fps
Video Outputs A CSI input connector Camera:Supports 8-bit YUV422 CMOS sensor interfaceSupports CCIR656 protocol for NTSC and PALSupports SM pixel camera sensorSupports video capture solution up to 1080p@30fps
Audio Input MIC
Power Source DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports Three USB 2.0 HOST, one USB 2.0 OTG
GPIO(1×3) pin UART, ground.
Low-level
peripherals 40 Pins Header,compatible with Raspberry Pi B
OS Support Android Ubuntu, Debian, Raspbian Image.
LED Power led & Status led
Key IR input, POWER
Size 85 mm × 55mm
Weight 38g
