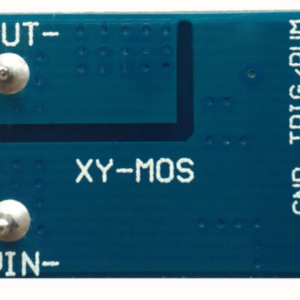

High-power MOSFET Trigger Switch Drive Module

40.00 EGP

In stock

High-power MOSFET Trigger Switch Drive Module

wws Maya / Pre-sale Questions Need Help? Contact Us via WhatsApp
Purchase this product now and earn 40 Points!
SKU: MD-26603 Category: Tags: ,
  •  DC Operating Voltage: 5V – 36V
  • The trigger source: Digital high-low (DC3.3V – 20V), can be connected micro-controller IO port, PLC interfaces,  DC power, you can access the PWM signal, the signal frequency 0–20KHZ perfect support.
  • Output Capacity: DC 5V – 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary  cooling conditions, the maximum current up to 30A.
  • Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps,  solenoid valves, etc., you can enter PWM, motor speed control, lamp brightness.
  • Availability: unlimited switch
  • Operating temperature: -40-85
  • Dimension: 34mm x 17mm x 12mm
  • Package Include: 1 x  High-power MOSFET Trigger Switch Drive Module


  • The use of imported dual-MOS parallel active output, lower resistance, more current, strong power at room temperature, 15A, 400W, to meet the most use of the equipment
  • Wide voltage, the perfect support for PWM
  • Easily control high power devices
  • Input PWM to achieve motor speed control, lamp brightness control

package included :

  • 1 x High-power MOSFET Trigger Switch Drive Module
