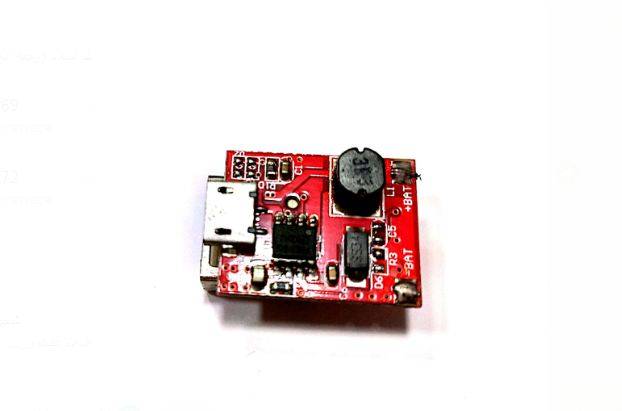

USB DC-DC Converter Step Down Module 5V 3A
Electra Store
SKU: MD-28279
30.00 EGP
30.00 EGP
Save 0%
In Stock
1
Categories: Converters
Description
-
Input voltage: DC 6-24V
-
Output voltage: 4.8-5.2V
-
Output current: 3A MAX
-
Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)
-
Switch frequency: 500KHz
-
Output ripple: 10mV around (12V to 5V3A) 20M bandwidth
-
Output indicator: Output voltage indicator is red
-
Operating temperature: Industrial grade (-40 Celsius to 85 Celsuis) (the higher the ambient temperature, the lower the output power)
-
Output over voltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection.
-
Full load temperature: 30 Celsius
-
Static current: 0.85 mA
-
Load regulation: ± 1%
-
Voltage Regulation: ± 0.5%
-
Dynamic response speed: 5% 200uS
- 1 X USB DC-DC Converter Step Down Module 5V 3A
