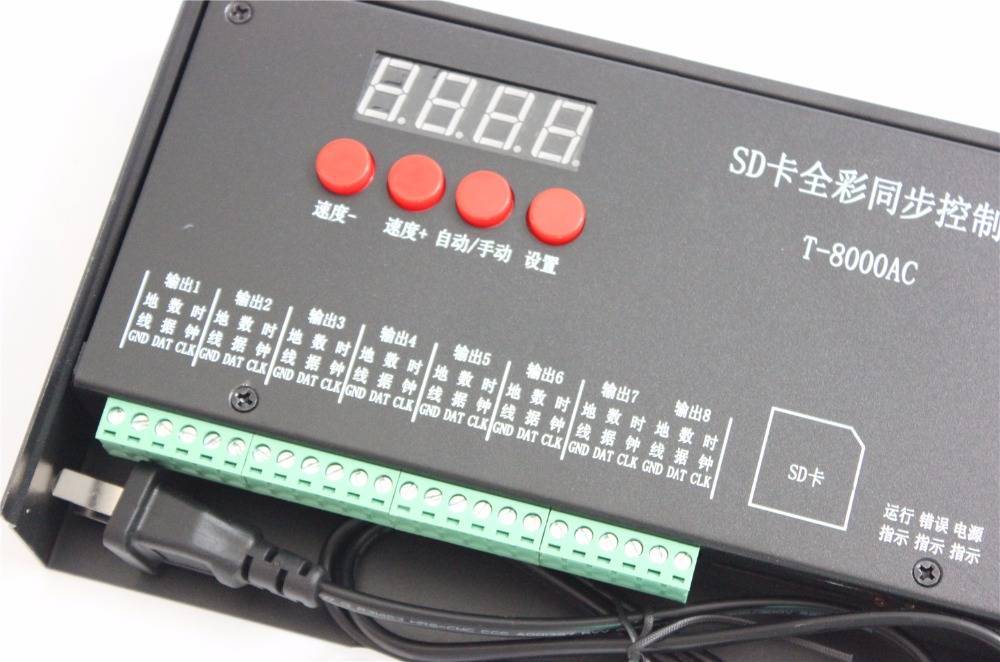

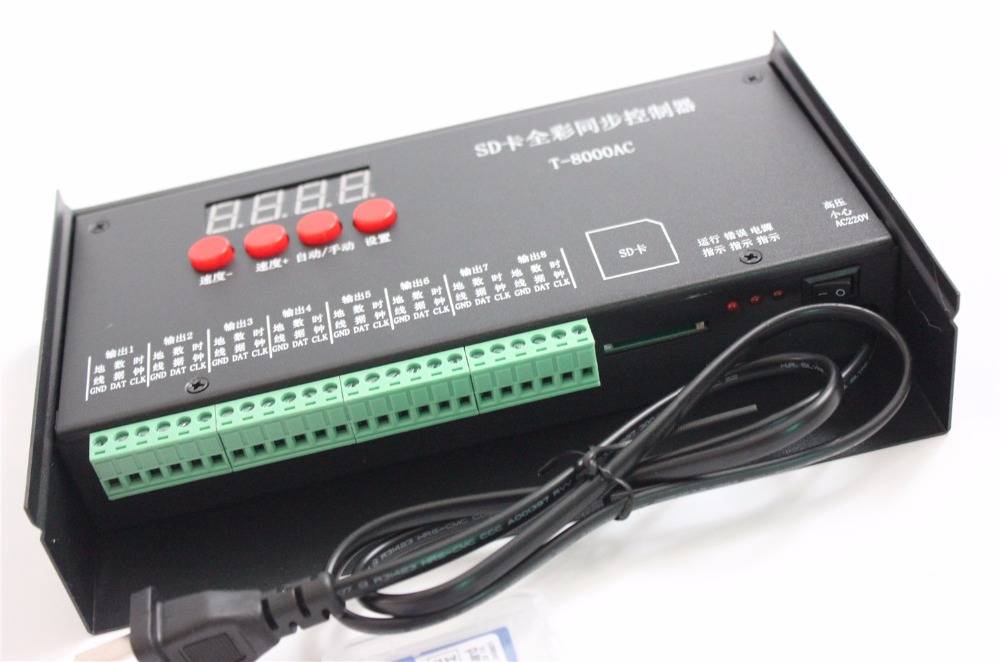

LED RGB Pixel Controller

• MAX control 8192pcs lamp
• Item Type: RGB Controler
• Model Number: T8000A
• Input  Voltage: AC110-AC220V
• Wattage: 3 W
• Color: Black
• Material: Iron
• Connection Mode: 3pin connect port
• Oscillation frequency: 50/60Hz
• Control method: SD Card
• SD card content: 128M-8GB
• SD format: FAT
• Maximum load: 8192 pixels
• Support IC: 50kinds
• input port: 8port
• Working Temperature: -20°C-60°C
• Product size: 22*14*4.7CM
• Weight: 1.25kg
• Package Included: 1 x T-8000AC LED RGB Pixel Controller

1. 32-65536 Gray, Support software Gamma correction.
2. Support point, line, surface, rules and special-shaped handle.
3. Eight-port output, can support 1024 pixels.
4. Multiple controllers can be cascaded together and work synchronous.
5. The distance between every two controller can achieve 200m. Display content stored in SD card.
6. T-8000A store a maximum of 16 programs, copy multiple files to the SD card in order.
7. T-8000A with display screen, and encryption function.

Note:   1. When T8000A controller drive less than 512 pixels the frame rate can reach 30fps. When T-8000A control more than 512 pixels the frame rate will slow down automatically. 2. T-8000A must use the software LedEdit 2013.
