Ql1201 Universal Programming Module For ICD2 And Pickit2
In Stock
Categories: Programmers
Description
Description
Using a clamp for the SOICĀ Support socket:Ā SOT23-6(PIC10FXXX) Ā SO-8Ā SO-14Ā SO-18Ā SO-28Ā TQFP44Ā PQFP44Ā PLCC44 TQFP64 DIP40
VPP can choose before VDD, ICD2 support internal oscillationsĀ and internal reset chip's repeated programming
Have ICSP OUT interface, convenient to other target's internal oscillation and internal reset chip programming
3M ZIF on programmable chip package: DIP8, DIP14, DIP18, DIP20, DIP28, DIP40.

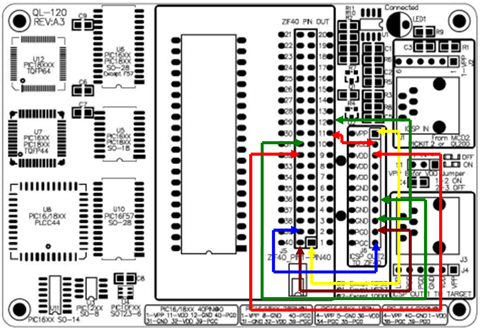

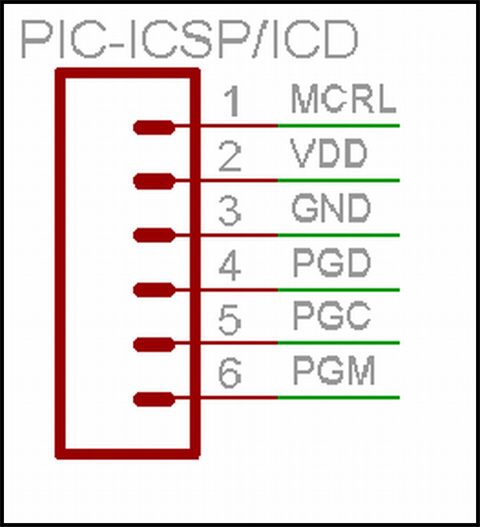

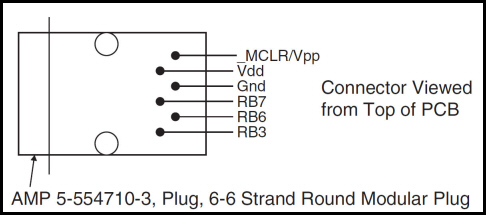

QL1201Ā universal programming moduleĀ (Programmer)Ā is aĀ deviceĀ that can directly programĀ 40PINĀ orĀ belowĀ 40PINĀ .Ā QL1201Ā has two rows of pins, one row is fromĀ ZIF (Zero Insertion Force)Ā socketĀ (ZIF40 Pin Out)Ā , and the other row is fromĀ ICSP (In-Circuit Serial Programming) RJ11Ā socket.Ā The two sets of pin headers can be connected with jumpers to program processor chips with different pin counts.
| Pin function | ZIF40 PIN 1 TO PIN40 | ICSP OUT to ZIF40 |
| VPP | 1 | VPP |
| VDD | 11 | VDD |
| VDD | 32 | VDD |
| GND | 12 | GND |
| GND | 31 | GND |
| PGD | 40 | PGD |
| PGC | 39 | PGC |
Package includes:
- 1 xQL1201Ā Universal Programming Module.
