Description

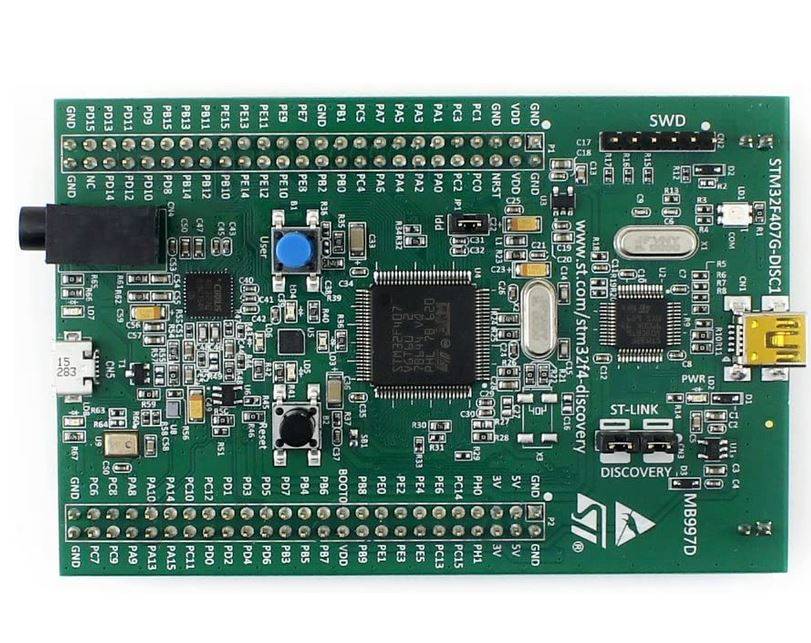

It includes an ST-LINK embedded debug tool, one ST-MEMS digital accelerometer, a digital microphone, one audio DAC with integrated class D speaker driver, LEDs, push-buttons and an USB OTG micro-AB connector.
To expand the functionality of the STM32F407 DISCOVERY kit with ethernet connectivity, LCD display and more...
Package Included:
Features
- STM32F407 micro-controller featuring 32-bit ARM Cortex-M4 with FPU core, 1-Mbyte Flash memory, 192-Kbyte RAM in an LQFP100 package
- On-board ST-LINK/V2 on STM32F407 DISCOVERY (old reference) or ST-LINK/V2-A on STM32F407G-DISC1 (new order code)
-
- Debug port
- Virtual Com port (with new order code only)
- Mass storage (with new order code only)
- External Application Power Supply: 3V and 5V
- LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
- MP45DT02 ST-MEMS audio sensor Omni-directional digital microphone
- USB ST-LINK with re-enumeration capability and three different interfaces: Board power supply: through USB bus or from an external 5 V supply voltage
- CS43L22 audio DAC with integrated class D speaker driver
- Eight LEDs:Two push-buttons (user and reset)USB OTG FS with micro-AB connector
- LD1 (red/green) for USB communication
- LD2 (red) for 3.3 V power on
- Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
- 2 USB OTG LEDs LD7 (green) VBUS and LD8 (red) over-current
- Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
- Comprehensive free software including a variety of examples, part of the STM32CubeF4 package or STSW-STM32068 to use legacy standard libraries.

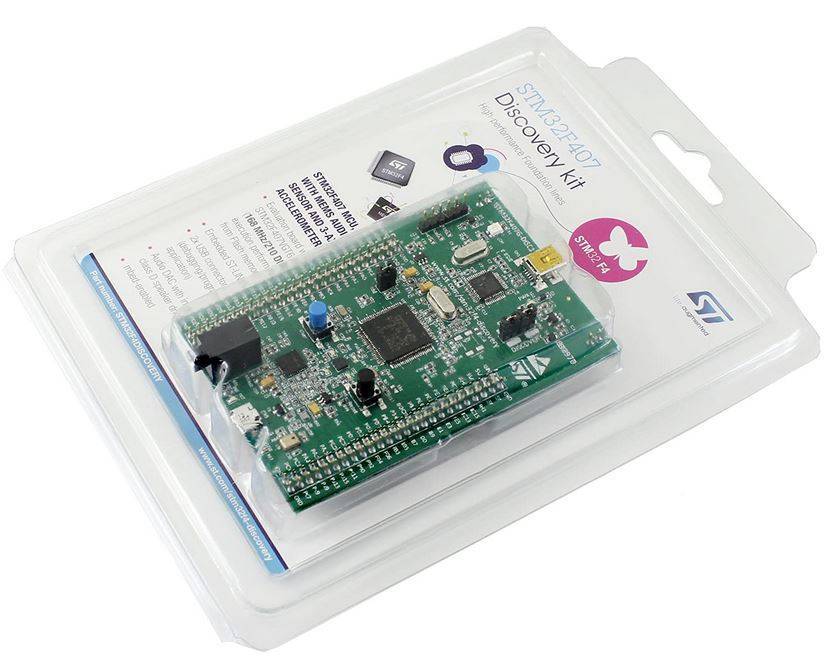

- 1 x stm32f4-discovery-kit-for-stm32f407
