Key Features & Benefits

✅ True LCR Meter Functionality - Measures Inductance (L), Capacitance (C), Resistance (R), Quality Factor (Q), Dissipation Factor (D), and Impedance (Z) ✅ Wide Frequency Range - 12 selectable test frequencies from 100Hz to 100kHz ✅ High Accuracy - ±0.1% basic accuracy for precise component analysis ✅ Large Color TFT Display - 3.5" LCD with intuitive graphical interface ✅ Multiple Measurement Modes - Series/parallel equivalent circuit modes ✅ Built-in Comparator Function - For pass/fail component testing in production ✅ Comprehensive Interfaces - USB, RS232, and Handler I/O for PC connectivity ✅ Professional Test Fixtures - Supports 4-terminal Kelvin clip and SMD tweezers

Technical Specifications

Measurement Parameters

• Capacitance (C): 0.0001pF - 9999μF

• Inductance (L): 0.0001μH - 9999H

• Resistance (R): 0.0001Ω - 99.99MΩ

• Quality Factor (Q): 0.0001 - 9999

• Dissipation Factor (D): 0.0001 - 9.999

• Impedance (|Z|): 0.0001Ω - 99.99MΩ

• Phase Angle (θ): -180° to +180°

Test Signal

• Frequencies: 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 40kHz, 50kHz, 60kHz, 80kHz, 100kHz

• Test Level: 0.1V, 0.3V, 1.0V (selectable)

General Specifications

• Basic Accuracy: ±0.1%

• Display: 3.5" TFT LCD (320×240)

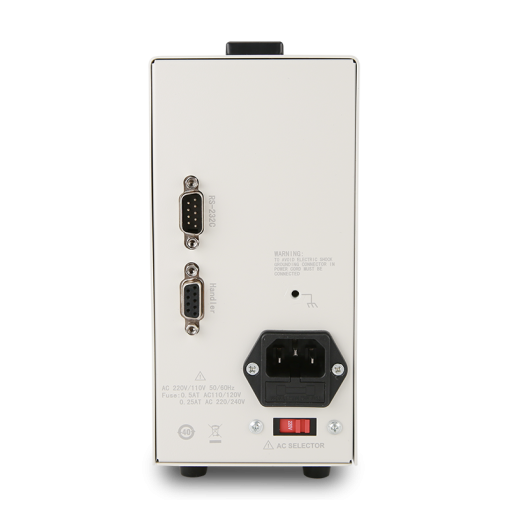

• Interface: USB, RS232, Handler I/O

• Power Supply: AC 100-240V, 50/60Hz

• Dimensions: 280×240×110mm

• Weight: 2.5kg

Professional Applications

✔ Electronic Component Manufacturing - Quality control of capacitors, inductors, and resistors ✔ Research & Development - Precise component characterization ✔ Telecommunications Equipment - RF component testing ✔ Automotive Electronics - Reliability testing of critical components ✔ Academic Research - Advanced electronics laboratories

Package Contents

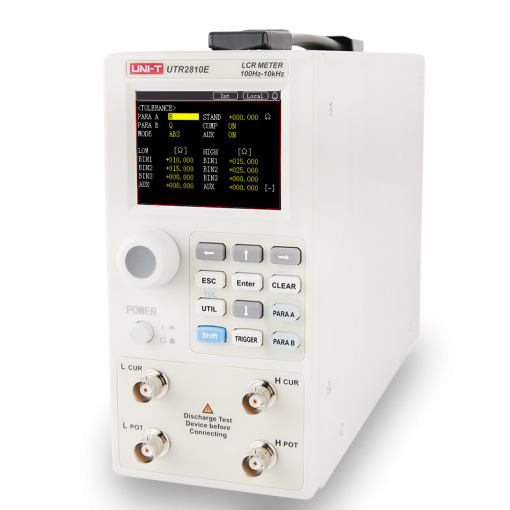

• 1 × UTR2810E+ Main Unit

• 1 × Test Lead Set (4-terminal Kelvin clips)

• 1 × Power Cable

• 1 × USB Cable

• 1 × User Manual

• 1 × Certificate of Calibration

Why Choose UTR2810E+?

• Laboratory-grade precision in a benchtop form factor

• Comprehensive measurement parameters beyond basic LCR

• Production-ready features including sorting and PC connectivity

• Reliable performance for critical component testing

The ideal solution for professional component analysis and quality assurance!
