TB6560 CNC 3-Axis Driver 3.5A

Electra Store SKU: MD-22606

825.00 EGP

Out of Stock

Share to

Overview

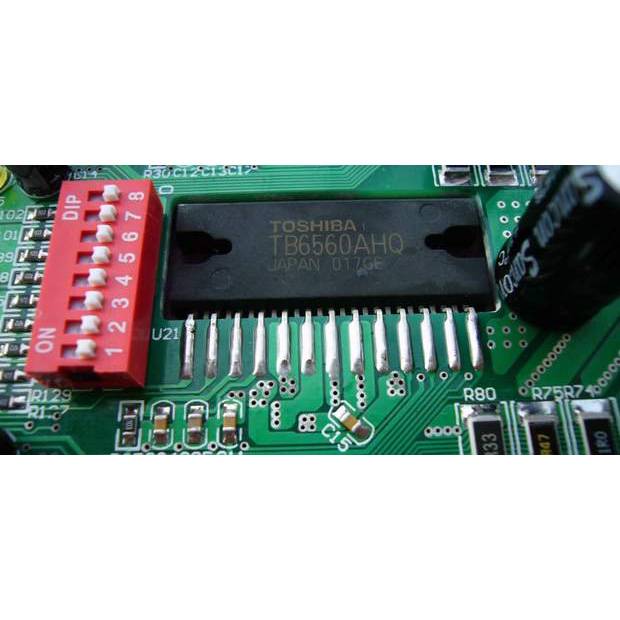

TB6560 stepper motor driver can drive up to 3 stepper motors with 3.5 A peak current for each motor. It is also equipped with spindle relay output and can handle a spindle. It has micro-stepping capability up to 1/16 micro-step. The driver is integrated with break output board (so you do not need one) and can be connected directly to the parallel port. In addition, it has a manual control port interface for manual control of your motors. The 3-axis driver uses Toshiba TB6560AHQ chip and equipped with optical isolation with dc-dc power supply isolation for full protection. Finally, this driver is compatible with most parallel software MACH3, KCAM4 etc.!

Description

TB6560 3A Three Axis Carving Machine Driver Stepper Motor Driver

Features:

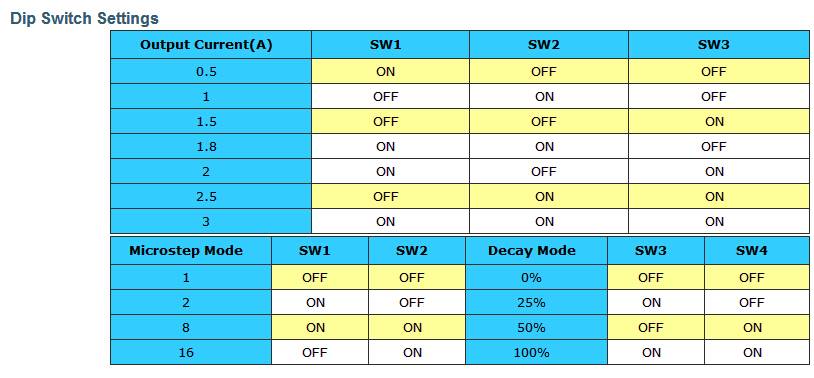

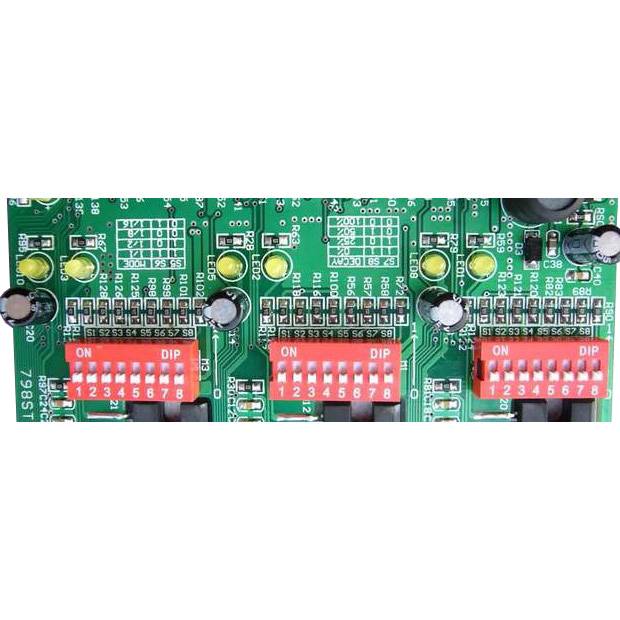

- X Y Z three axis integrated driver, each axis can reach 3.0A driving current - Widely used for carving machine, TSP and digital control CNC device - Direct PC parallel signal, can be used for CAM software control - Control board interface is convenient to use, normal CAM software to control - Manual board interface is convenient to use, has 5 channels limit input - Integrated control driving part and isolation module, to guarantee PC mainboard operates safely - 3 Axis current, micro step, reduce single adjustable - Anodic aluminum alloy shell is convenient safe and good heat radiation effect

Electric parameters:

- Input voltage: 12-24V DC power supply, current capacity recommends>15A - Output current: 0.5-3.0A, 6 grade adjustable - Impulse response frequency: 200KHZ - Insulation resistance: >500mohm - Weight: 500g

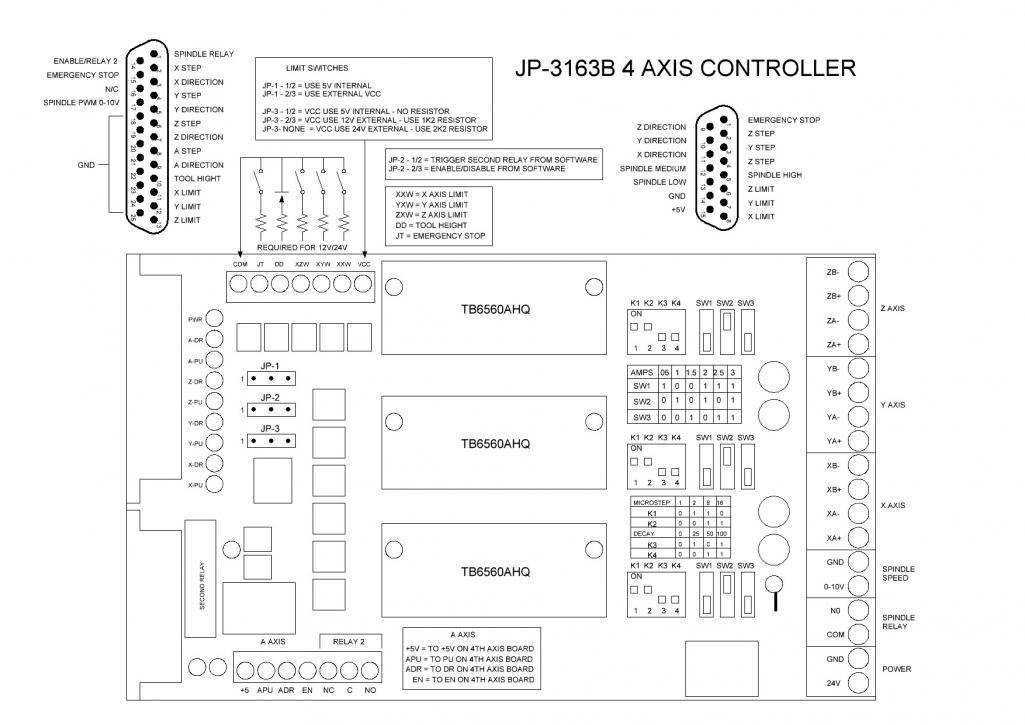

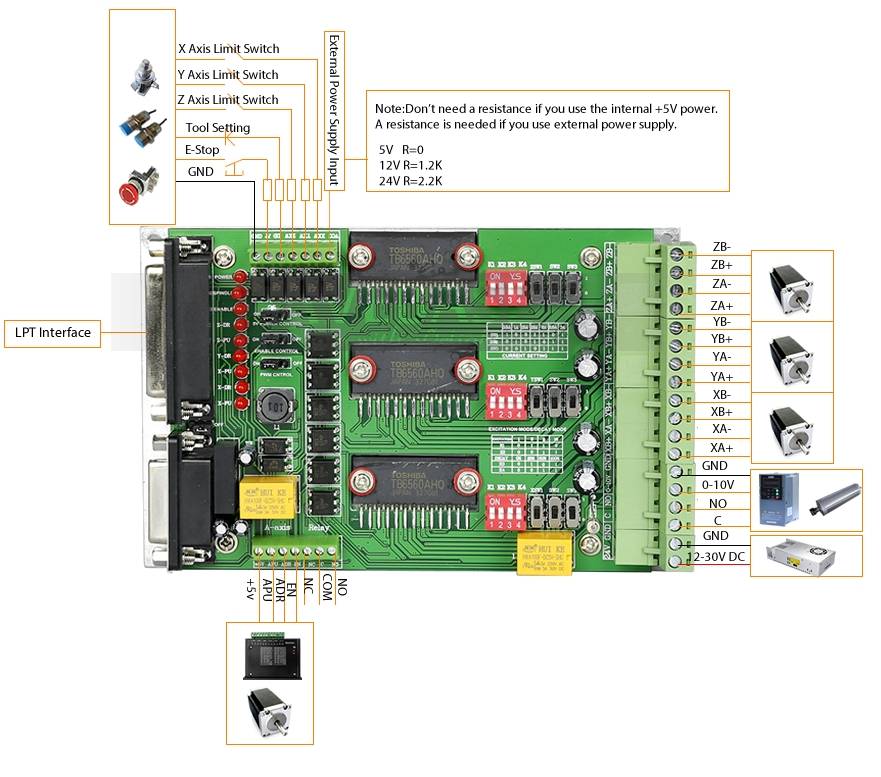

Signal interface function:

- DB2S parallel interface is impulse, direction, limit, relay control interface, built in 5V power, external driving signal low level is available - DB15 interface is manual control board signal interface - Power supply: input 12-24V DC, has anti-reverse connection function - Two channel relay control interface, convenient to control main axis and cooling system - Can expand 4 axis control output
