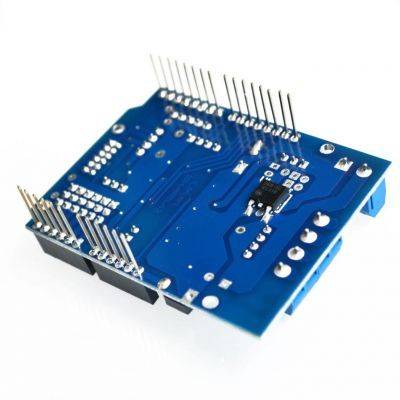

Arduino L298P Motor Shield
Electra Store
SKU: DB-26590
198.00 EGP
In Stock
1
Categories: Motor Drivers
Description
- The logic part of the input voltage (VD): 5V
- Drive part of the input voltage (VS): VIN Input 6.5 ~ 12V, PWRIN 4.8 ~ 35V input
- The logical part of the work current (Iss): <36mA
- Drive part of the work current (Io): <2A
- Maximum power dissipation: 25W (T = 75 ℃)
- Control signal input level: high 2.3V <Vin <5V, low -0.3V <Vin <1.5V
- Working temperature: -25 130 ℃
- Hardware Interface: 5.0mm pitch terminal
- The fixed buckle belt, and can be controlled via front row access signal
- Drive Type: Dual high-power H-bridge driver
- The pin occupancy: D4 ~ D7 direct-drive motor
- Supports PWM / PLL mode motor speed control
- Size: 68 * 53mm
