🔧 Key Features:

• Type: LED dot/bar display driver

• Number of Outputs: 10 LEDs (dot or bar mode)

• Input Voltage Range: Typically 1.2V to 12V

• Operating Voltage: 3V to 25V

• Current Drive: Adjustable LED current up to 30mA per LED

• Display Modes: Dot mode (one LED lit) or bar mode (cumulative LEDs lit)

• Logarithmic Scale: 3 dB per step, matching audio signal perception

• Package: 18-pin DIP and SOIC (surface mount)

• Operating Temperature Range: -40°C to +85°C

⚙️ Typical Applications:

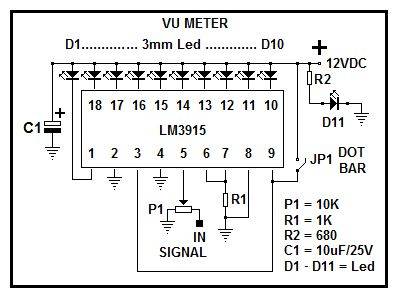

• Audio level meters and VU meters

• Signal strength indicators

• Battery level displays

• Power supply monitors

• Sensor output displays

📦 Package Includes:

• 1 x LM3915 Dot/Bar Display Driver IC – DIP-18 Package

✅ Why Choose the LM3915?

The LM3915 provides a clear and intuitive visual representation of logarithmic signals, making it perfect for audio and other signal-level displays. Its adjustable current and flexible display modes make it a favorite for both professional and hobbyist applications.
