🔧 Key Features:

• ✅ Operates in Astable and Monostable Modes

• ✅ Adjustable Timing from Microseconds to Hours

• ✅ TTL Compatible Output

• ✅ High Output Current Capability (Up to 200mA)

• ✅ Stable Operation with Wide Temperature Range

• ✅ Available in DIP-8 Package – Easy for Prototyping

⚙️ Technical Specifications:

• Model: NE555 / LM555

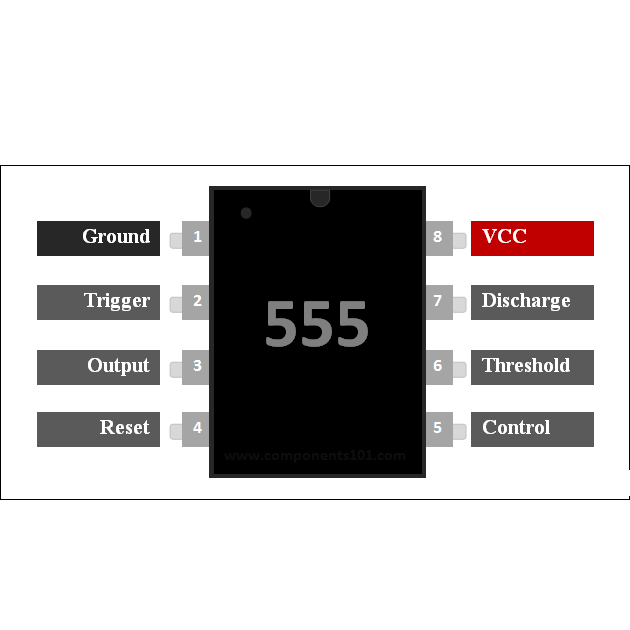

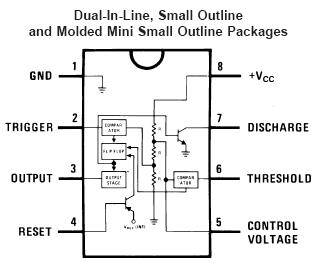

• Package: DIP-8 (Dual Inline Package – 8 pins)

• Operating Voltage: 4.5V to 16V

• Max Output Current: 200mA

• Timing Accuracy: Typically ±1%

• Output Compatibility: TTL and CMOS

• Frequency Range (Astable Mode): Up to 500 kHz

• Operating Temperature: 0°C to +70°C (standard)

🎯 Common Applications:

• ⏱️ Timer Circuits

• 📶 Pulse Width Modulation (PWM)

• 🔄 Frequency Generators

• 🔔 Buzzer or LED Flashers

• 🔋 Power-on Delay Circuits

• 💡 LED Blinkers and Light Controllers

• 🧠 Logic Signal Generators for Testing

📦 Package Includes:

• 1x NE555 / LM555 Timer IC (DIP-8 Package)
