🔧 Key Features:

• ✅ Four Independent Op-Amps in One Package – Ideal for multi-channel analog applications

• ✅ Single or Dual Supply Operation – Operates from 3V to 32V single supply or ±1.5V to ±16V dual supply

• ✅ Low Input Bias Current and Low Power Consumption – Ideal for low-power and battery-powered applications

• ✅ Large Common-Mode and Differential Voltage Ranges

• ✅ Internally Frequency Compensated – No need for external compensation components

⚙️ Technical Specifications:

• Model: LM324

• Amplifier Count: 4

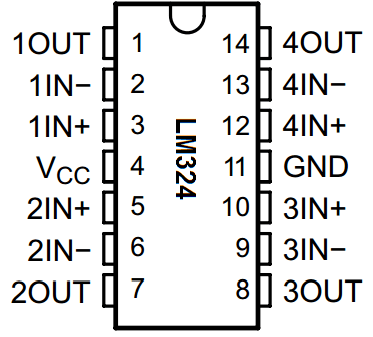

• Package Type: DIP-14 (Dual Inline Package)

• Input Offset Voltage: Typically 2mV

• Gain Bandwidth Product: ~1.3 MHz

• Operating Voltage Range:

  • Single supply: 3V to 32V

  • Dual supply: ±1.5V to ±16V

• Output Voltage Swing: 0V to Vcc – 1.5V

• Short Circuit Protection: Yes

• Operating Temperature Range: 0°C to +70°C (standard version)

🎯 Typical Applications:

• 🔊 Audio signal pre-amplification

• 💡 Sensor signal conditioning

• 🧠 Analog computation (filters, integrators, comparators)

• ⚙️ Industrial automation and control circuits

• 🔋 Battery-powered analog devices

📦 Package Includes:

• 1x LM324 Quad Op-Amp IC – DIP-14
