UNI-T UTi716B Heavy-Duty Thermal Imaging Camera

Product Description

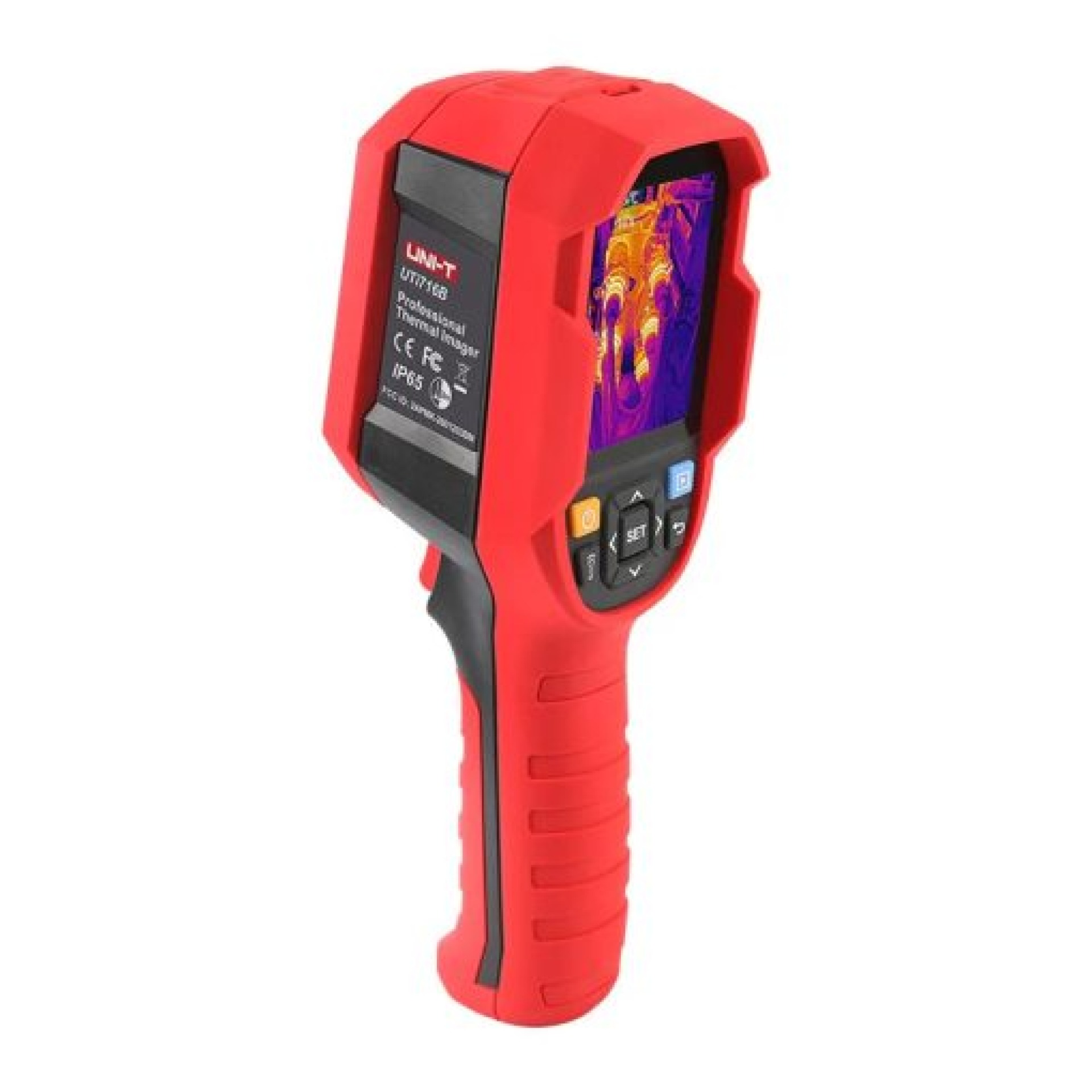

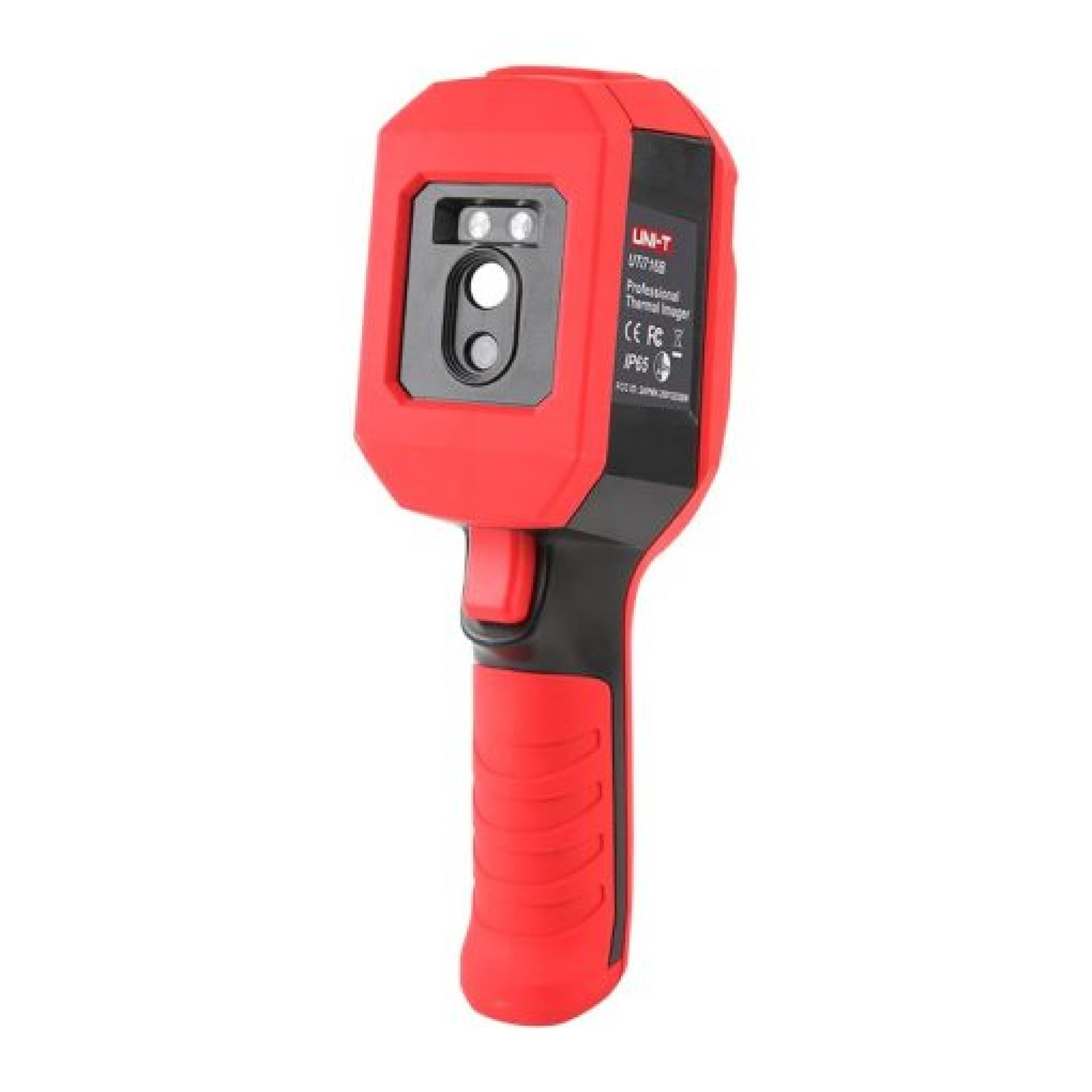

The UNI-T UTi716B Thermal Camera is a professional handheld thermal imaging instrument developed for identifying temperature variations in electrical systems, mechanical equipment, HVAC installations, and industrial environments. By displaying infrared radiation as a thermal image, it helps technicians locate abnormal hot spots, investigate potential faults, and perform preventive maintenance without direct contact with the inspected surface.

The camera features a 160 × 120-pixel infrared sensor with Super Resolution processing that enhances the displayed image to 320 × 240 pixels. Its 2.8-inch TFT screen presents thermal measurements clearly, while the focus-free design allows convenient inspection without manual focusing. With a temperature measurement range of -20°C to 550°C, the UTi716B supports a broad range of routine diagnostic tasks.

The integrated T-Mix image fusion technology combines thermal and visible-image information to help users identify the physical location of temperature anomalies. Additional image modes include thermal, visual, and picture-in-picture (PIP). Seven selectable color palettes make it easier to interpret temperature differences under different inspection conditions.

For more detailed analysis, the UTi716B provides on-screen measurement using five points and three rectangular areas, along with high- and low-temperature tracking. Adjustable temperature alarms use screen animation, an LED light, and a buzzer to alert users when configured temperature limits are reached. The built-in 2 MP digital camera and video recording function support inspection documentation, while Wi-Fi connectivity enables live streaming and data transfer through compatible applications.

Designed for field use, this UNI-T thermal imager includes a rechargeable 5000 mAh lithium-ion battery with a rated operating time of at least eight hours. USB Type-C connectivity supports charging and data-related operations. Its IP65 protection rating and 2-meter drop resistance make it suitable for demanding maintenance environments.

Features:

• 160 × 120-pixel infrared resolution

• Super Resolution processing up to 320 × 240 pixels

• Temperature measurement range from -20°C to 550°C

• 2.8-inch TFT display with 320 × 240 resolution

• T-Mix image fusion, thermal imaging, visual image, and PIP modes

• Seven selectable thermal color palettes

• On-screen analysis with five measurement points and three rectangular areas

• High- and low-temperature tracking with configurable alarms

• Integrated 2 MP digital camera and video recording

• Wi-Fi connectivity and compatible PC/mobile analysis options

• 5000 mAh rechargeable battery with at least eight hours of rated operating time

• IP65-rated protection and 2-meter drop resistance

Specifications:

Applications:

• Electrical panel and power distribution inspections

• Preventive maintenance of motors, transformers, and electrical connections

• HVAC system troubleshooting and temperature checks

• Mechanical equipment and industrial machinery inspection

• Detecting abnormal heating in components and assemblies

• Building maintenance and thermal diagnostics

• Research, development, and laboratory inspections

• Inspection reporting and documentation using thermal images and video
