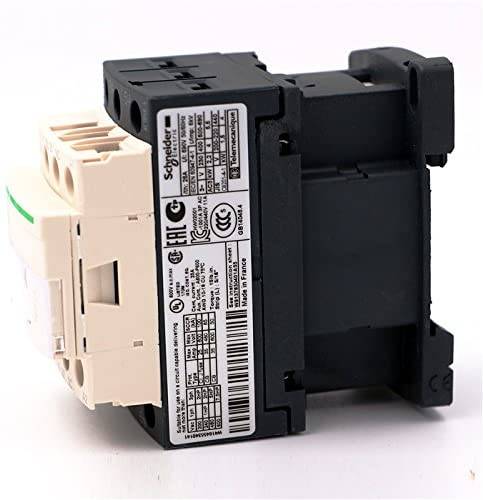

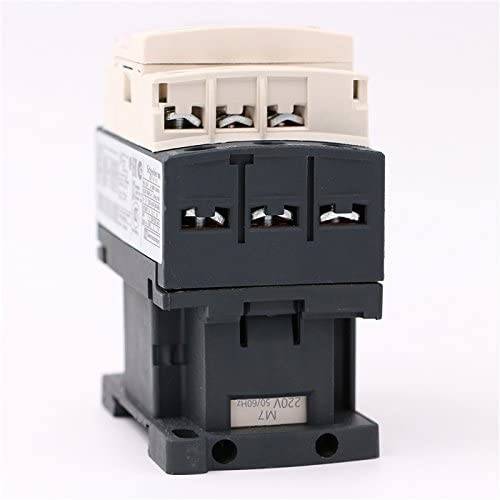

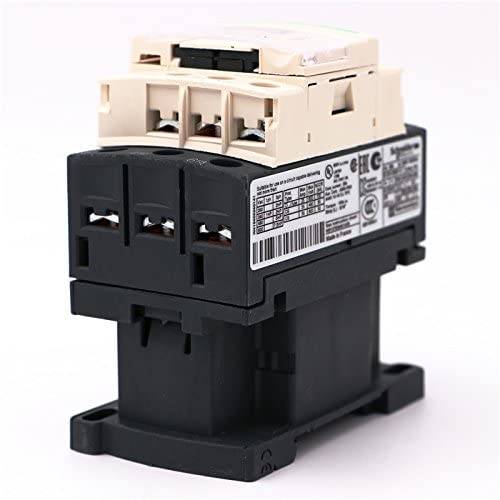

AC Contactor 3P LC1D09M7

350.00 EGP

Out of Stock

<p class="pdp-product-info__description">TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 220 V AC coil</p>

Description

Dimensions Drawings:

Dimensions

(1) Including LAD 4BB

(2) Minimum electrical clearance

LC1		D09…D18	D093…D123	D099…D129
b	without add-on blocks	77	99	80
b1	with LAD 4BB	94	107	95.5
	with LA4 D●2	110⁽¹⁾	123⁽¹⁾	111.5⁽¹⁾
	with LA4 DF, DT	119⁽¹⁾	132⁽¹⁾	120.5⁽¹⁾
	with LA4 DW, DL	126⁽¹⁾	139⁽¹⁾	127.5⁽¹⁾
c	without cover or add-on blocks	84	84	84
c	with cover, without add-on blocks	86	86	86
c1	with LAD N or C (2 or 4 contacts)	117	117	117
c2	with LA6 DK10, LAD 6K10	129	129	129
c3	with LAD T, R, S	137	137	137
c3	with LAD T, R, S and sealing cover	141	141	141

Package Included:
