High-Power 4-Channel 24V Relay Module for Automation Systems

Product Description

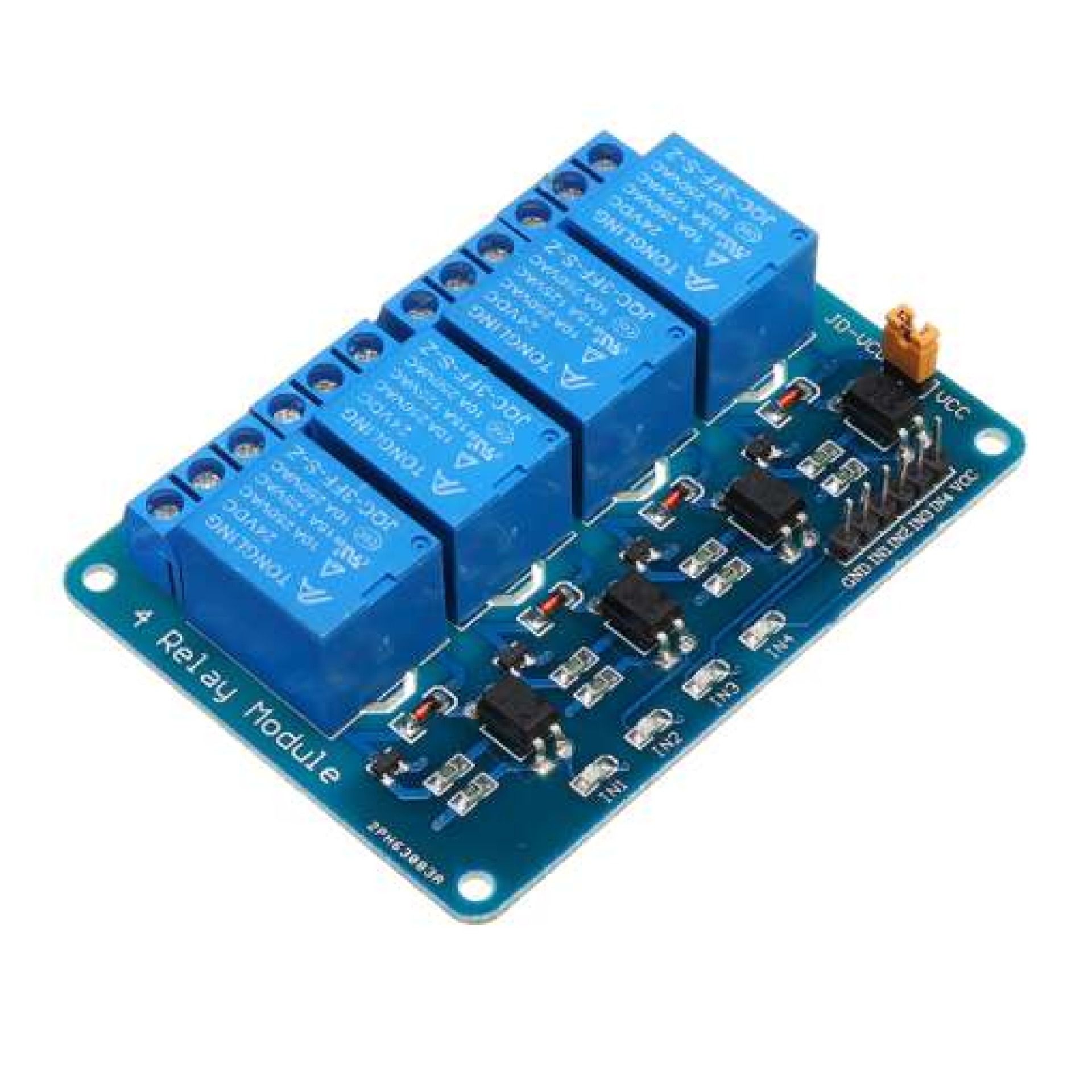

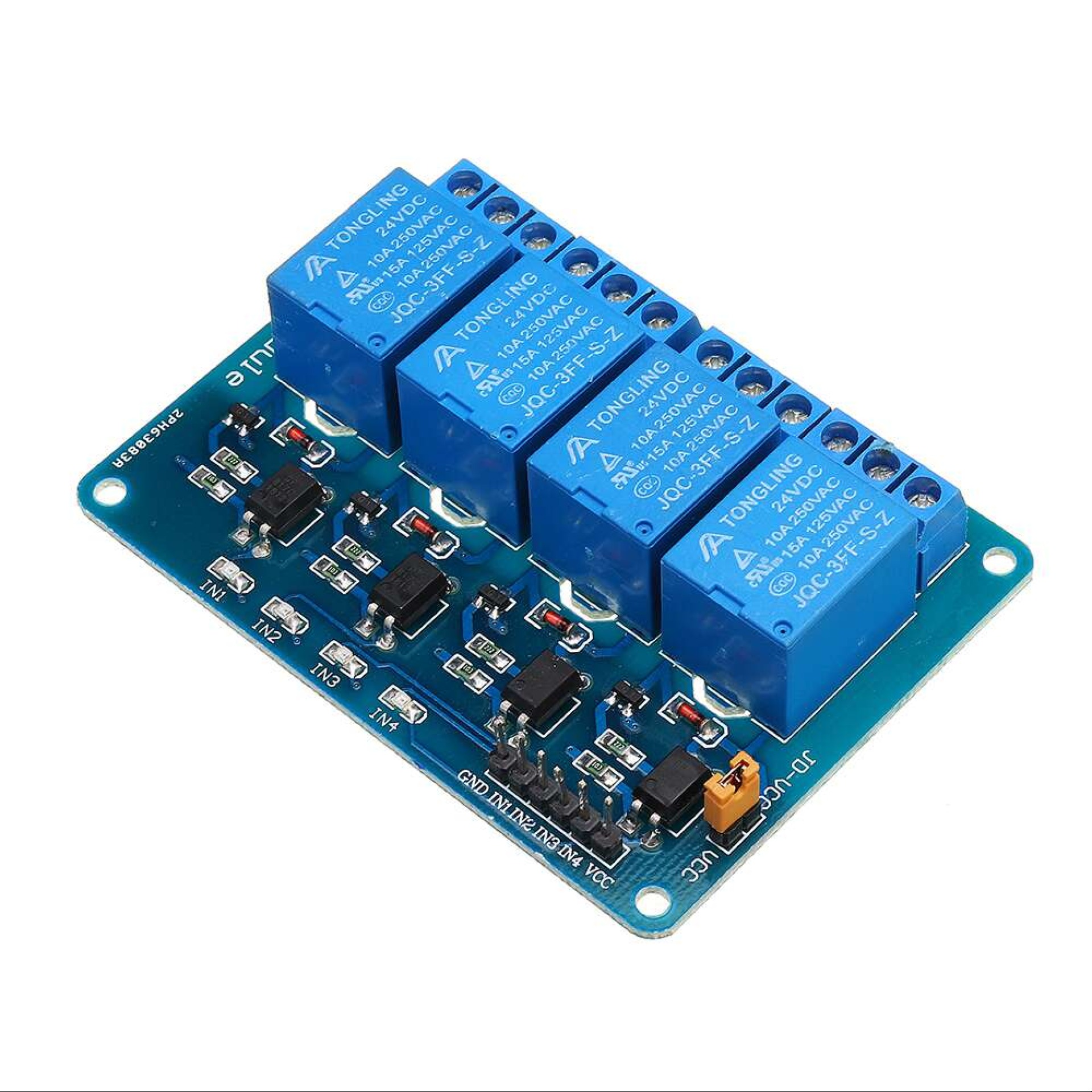

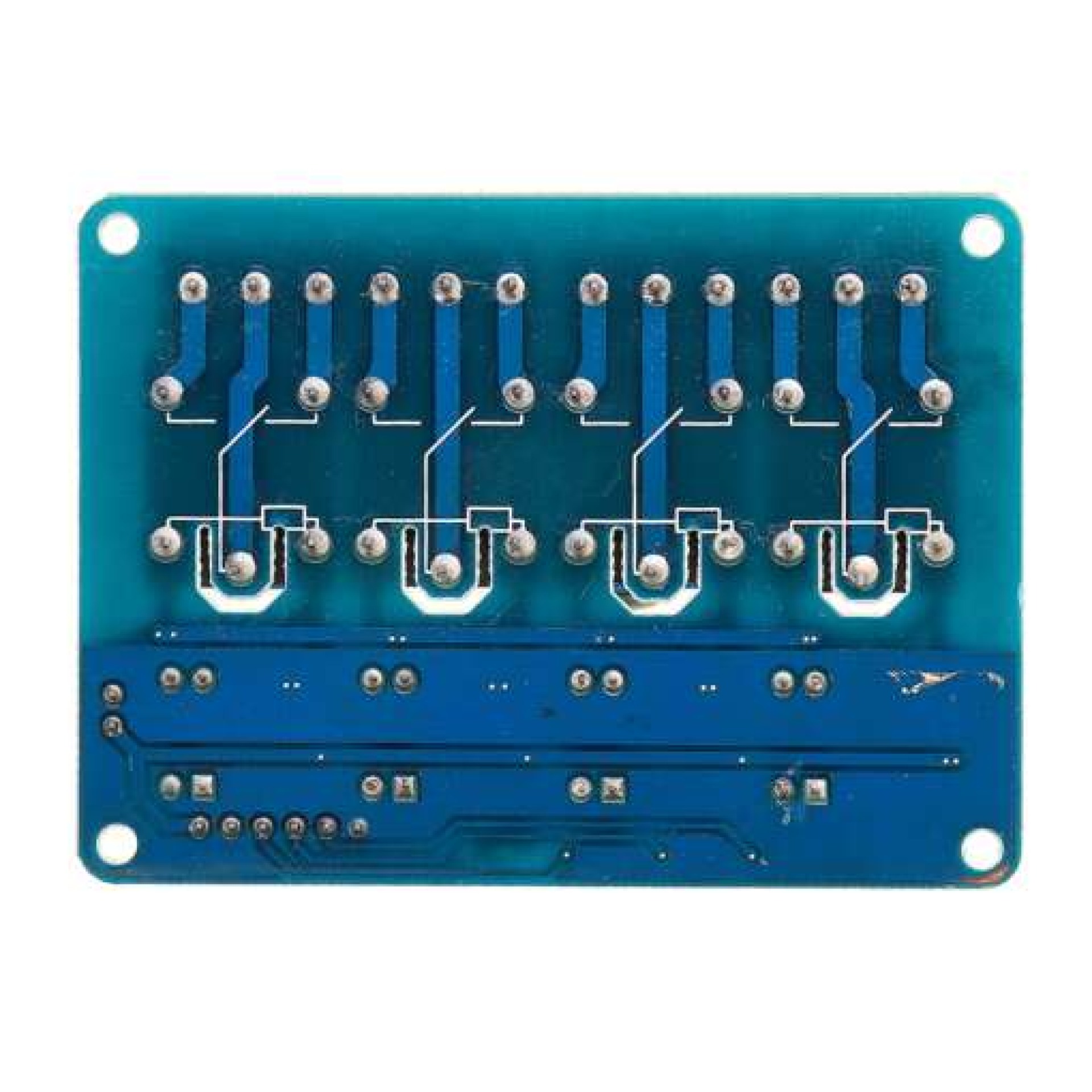

The High-Power 4-Channel 24V Relay Module is a multi-channel switching board designed to interface 24V control systems with AC or DC electrical loads. It provides four independently controlled relay channels, allowing a controller such as a PLC, microcontroller, or automation system to switch multiple devices from a single compact module.

Each relay channel provides isolated switching contacts, making the module suitable for controlling loads that require a different voltage or current from the control circuit. The relay contacts are rated up to 10A at 250V AC or 10A at 30V DC per channel, subject to the load type and installation conditions. This makes the module suitable for switching lighting circuits, fans, solenoid valves, pumps, motors, and other electrical equipment within the specified contact ratings.

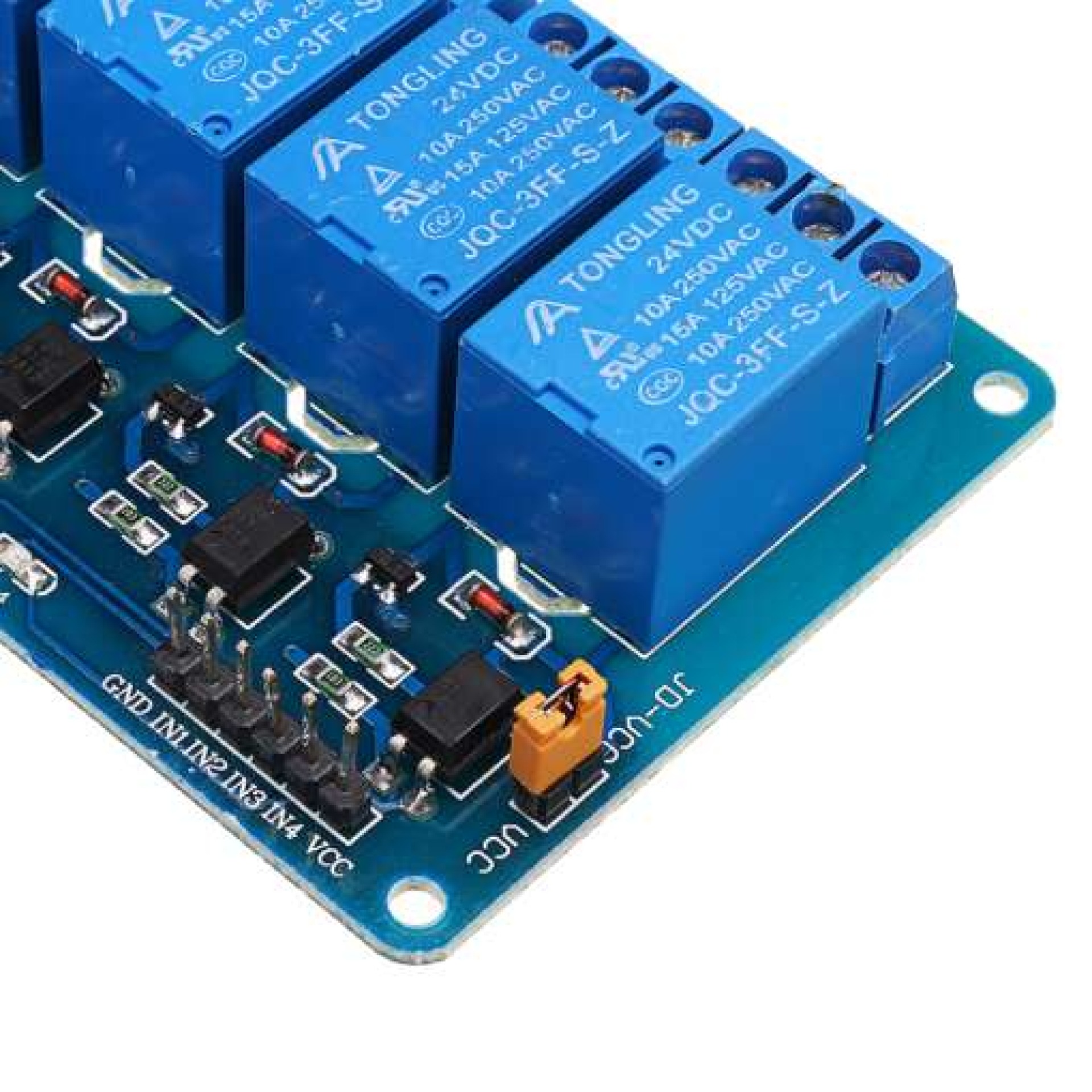

The module operates from a 24V DC supply, matching the voltage commonly used in industrial automation and control panels. Each channel has a dedicated input and relay-status LED, allowing the operator to identify which relay is currently activated. Screw terminals provide convenient connections for the switched load circuits, while header pins are provided for the control and supply connections.

Depending on the specific version, the control section can support high- or low-level triggering. The commonly available version also incorporates opto-isolation between the control and relay sections, helping reduce the effect of electrical interference and providing additional separation between the controller and switched load circuit.

The four independent outputs make the module particularly useful in automation projects where several devices need to be controlled separately. For example, one channel can operate a fan, another a pump, and the remaining channels can control valves or lighting circuits. It can also be integrated into PLC panels, educational automation projects, robotics systems, and custom control equipment.

When switching inductive loads such as motors, solenoids, or contactor coils, suitable protection and wiring practices should be used. The relay contact rating should also not be treated as a universal continuous-load rating; the actual permissible current depends on the load type, switching frequency, voltage, and electrical environment.

Features

• Four independently controlled relay channels

• 24V DC operating voltage

• Relay contacts rated up to 10A

• Supports AC and DC load switching

• Opto-isolated control section on the specified version

• Individual LED status indicators

• Screw terminals for load connections

• Compact module suitable for control panels

• Suitable for PLC and microcontroller-based systems

• Designed for automation and multi-load switching applications

Specifications

Specifications can vary between manufacturers and board revisions sold under this generic product name. The electrical ratings above correspond to the commonly listed 24V 4-channel version.

Applications

• Industrial automation systems

• PLC control panels

• Machine control systems

• Motor and fan switching

• Solenoid valve control

• Pump control systems

• Lighting automation

• Home automation systems

• Robotics and mechatronics projects

• Multi-load electrical control systems
