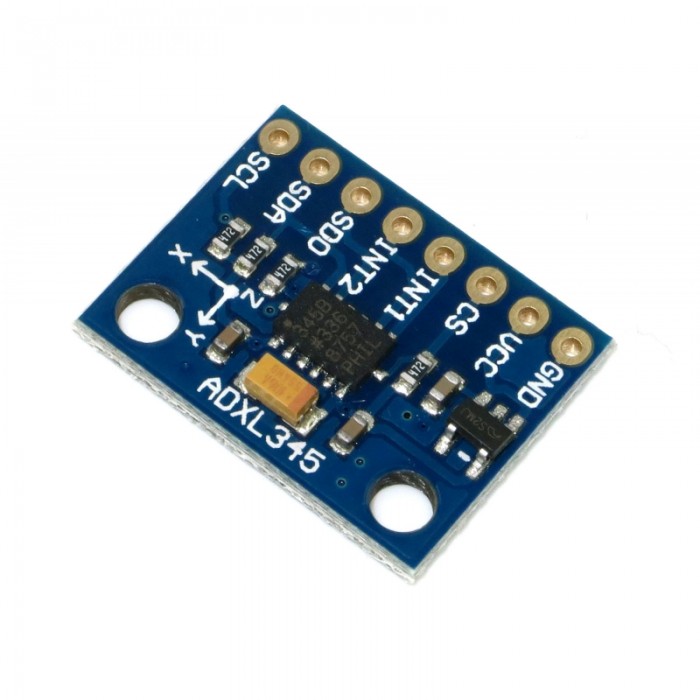

GY-291 ADXL345 3-Axis Accelerometer
Electra Store
SKU: MD-22927
60.50 EGP
In Stock
1
Categories: Other Modules
Description
GY-291 ADXL345 3-Axis Accelerometer is a sensor board based on ADXL345 accelerometer integrated circuit. The ADXL345 is a small, thin, ultralow power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g. Digital output data is formatted as 16-bit twos complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface.
The ADXL345 is well suited for mobile device applications.
It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock.
Its high resolution (3.9 mg/LSB) enables measurement of inclination changes less than 1.0°.
Specifications
- Single tap/double tap detection
- Activity/inactivity monitoring
- Free-fall detection
- 10,000 g shock survival
- SPI (3- and 4-wire) and I2C digital interfaces
- Flexible interrupt modes mappable to either interrupt pin
- Measurement ranges selectable via serial command
- Bandwidth selectable via serial command
- Operating Voltage: 4V to 6V
- I/O Voltage Range: 1.7V to 3.6V
- Communication: SPI and I2C
- Operating Temperature: -40⁰C to 85⁰C
Package Included:
- 1 X ADXL345 Accelerometer
