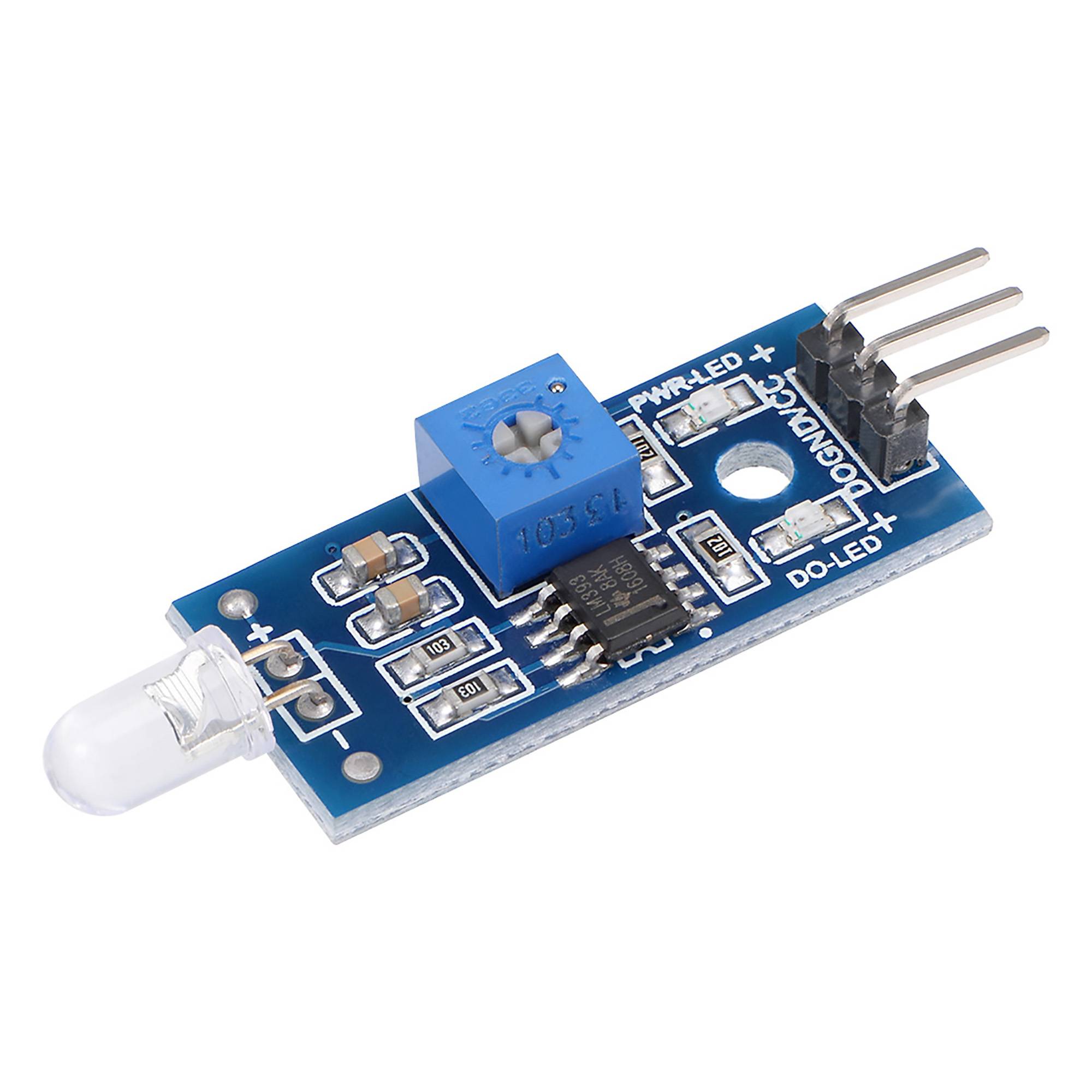

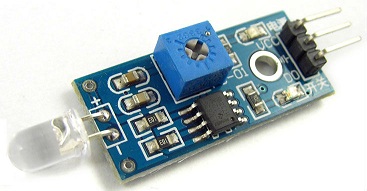

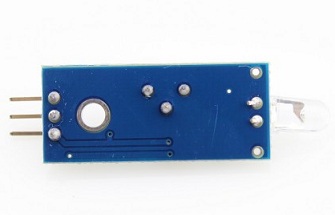

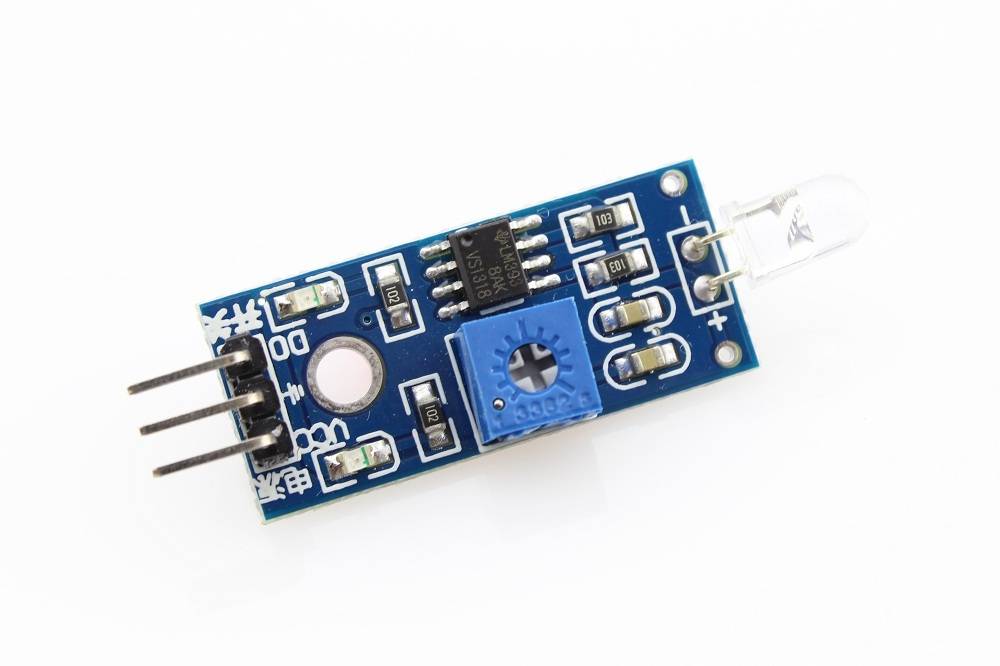

• Photosenstive Sensor can be used for brightness and the ambient light intensity detection, which is widely used in intelligent car.

• Compared with photo-resistor, photoresistor is better in directionality. It only detects light source in front of the sensor. It is better to use for light searching.
• "DO" outputs 0 and 1 digital signal.
• When ambient light intensity does not reach the threshold value, the "DO" port output high lever; When the ambient light intensity exceeds a set threshold, the "DO" output low lever.
• Digital outputs "DO" can be directly connected with the microcontroller.
• Sensitivity is adjustable by adjusting the potentiometer.
• PCB-mounted LEDs indicate the power (Red) and digital switch output (Green).

Specification

• Working voltage: 3.3V-5V
• Digital value and analog quantity double output
• Provided with a fixed bolt hole, convenient to install
• Adjustable sensitivity?
• Provided with a fixed bolt hole, convenient to install
• Output Format: DO digital switching outputs (0 and 1)
• PCB Size: 31 X 14mm / 1.22" x 0.55" (L X W)
• Fixed Hole Diameter: 3mm
