Overview

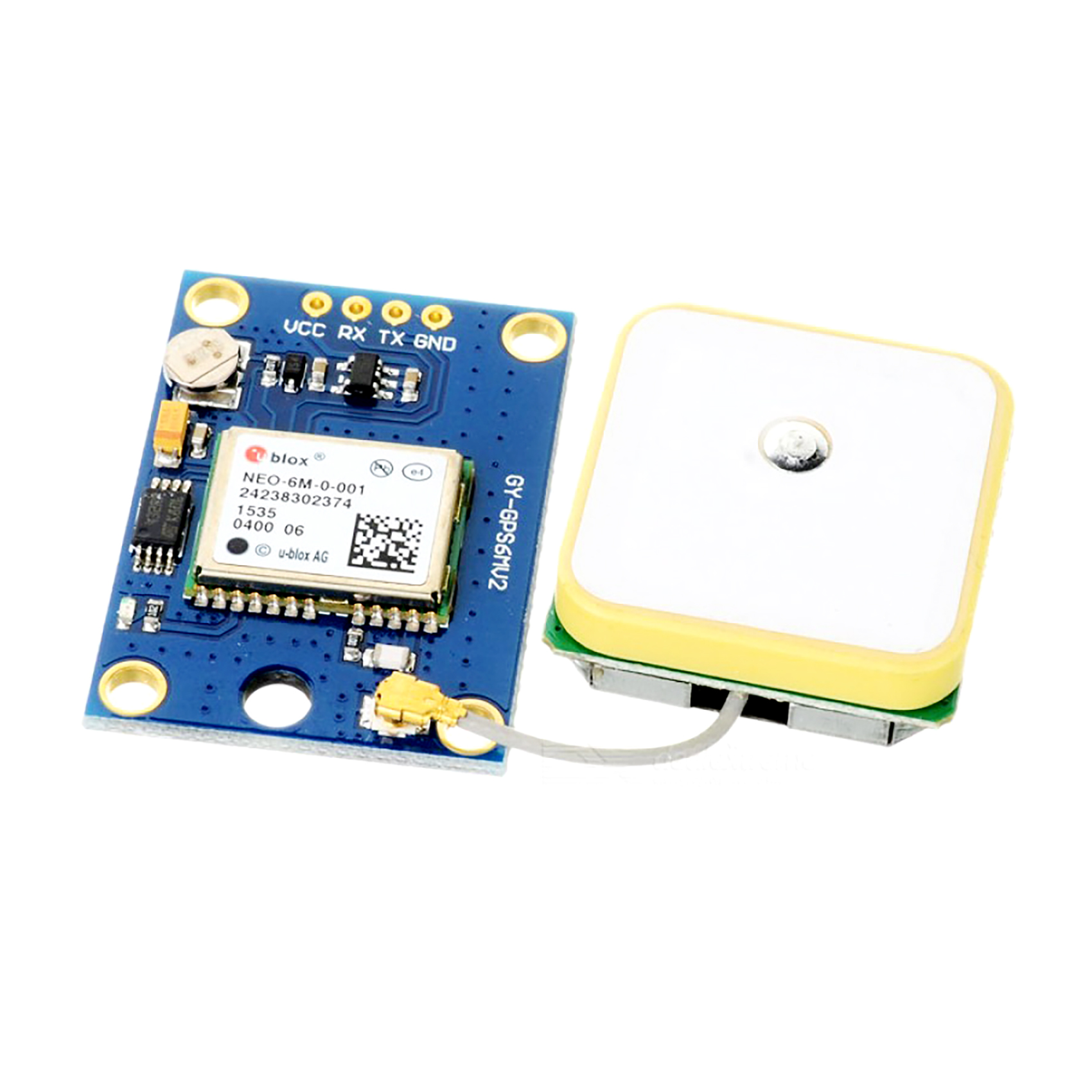

The NEO-6M GPS Module (V2) is a high-performance, low-power GPS receiver based on u-blox NEO-6M chipset, providing accurate positioning, navigation, and timing data. With a built-in ceramic antenna and external antenna support, it offers reliable satellite tracking for drones, vehicle trackers, smartwatches, and IoT devices.

This module supports multiple satellite systems (GPS, GLONASS, Galileo) and features EEPROM backup for fast hot starts, making it ideal for real-time tracking and geofencing applications.

Description

🔑 Key Features
✅ u-blox NEO-6M Chipset – Industry-standard GPS performance. ✅ High Sensitivity (-161dBm) – Works in urban canyons & weak signal areas. ✅ Built-in Ceramic Antenna + External Antenna Connector (IPX). ✅ Supports GPS, GLONASS, Galileo (Multi-GNSS capability). ✅ Fast Time-To-First-Fix (TTFF):
- Cold Start: ~27s
- Hot Start: ~1s (with EEPROM backup). ✅ UART (Serial) Interface – Easy connection to Arduino, Raspberry Pi, ESP32. ✅ Onboard LED Indicator – Blinks when GPS signal is acquired.
📊 Technical Specifications
- Operating Voltage: 3.3V–5V DC (Logic-level compatible).
- Communication Protocol: NMEA 0183 (Default) / UBX binary (Configurable).
- Baud Rate: 9600 (Default, adjustable up to 115200).
- Update Rate: 1Hz–5Hz (Configurable).
- Position Accuracy: 2.5m CEP (With active antenna).
- Power Consumption: ~45mA (During tracking).
- Dimensions: 25mm × 25mm.
🔌 Wiring Guide
NEO-6M Pin Arduino/RPi Connection
VCC 3.3V/5V
GND GND
TXD RX (D0 on Arduino)
RXD TX (D1 on Arduino)
PPS (Optional) Time pulse output
⚠ Note:
- For Raspberry Pi, use a USB-TTL adapter (3.3V logic).
- External antenna improves signal in obstructed areas.
⚙️ Configuration (Using u-center Software)
1. Connect to PC via USB-UART adapter.
2. Open u-blox u-center (Windows).
3. Select correct COM port & baud rate (default: 9600).
4. Adjust settings:
  - Update rate (e.g., 5Hz for drones).
  - NMEA messages (e.g., enable GGA, RMC).
  - Power modes (low-power for battery use).
🛠 Applications
- Drone/UAV navigation.
- Vehicle tracking & fleet management.
- Outdoor sports watches.
- Geofencing & asset tracking.
- Arduino/RPi location-based projects.
📦 Package Includes
- 1× NEO-6M GPS Module (V2).
⚡ Why Choose NEO-6M V2?
✔ Proven u-blox Technology – Reliable & widely used. ✔ Flexible Antenna Options – Built-in + external support. ✔ Low Power & High Sensitivity – Great for portable devices.
