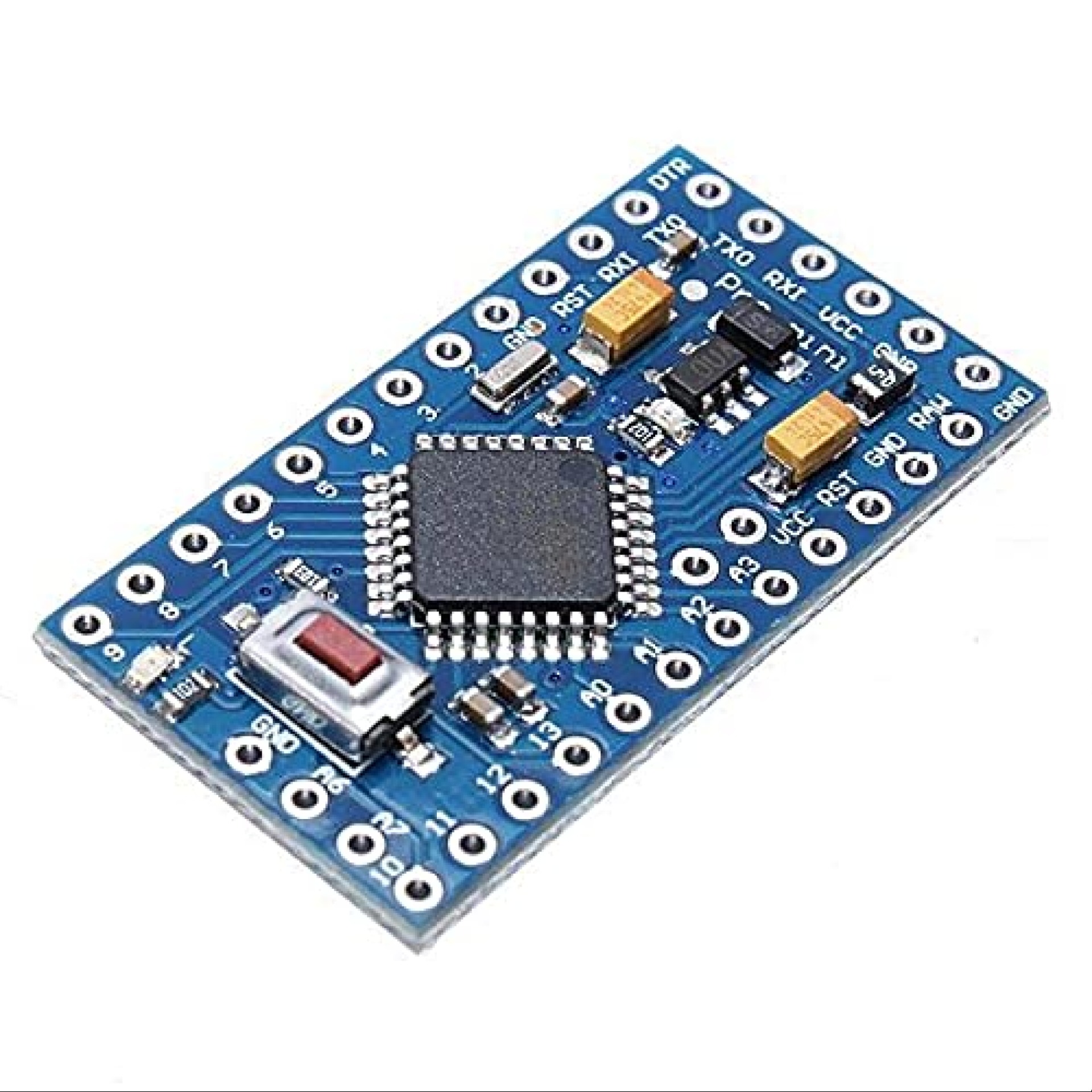

Arduino Pro Mini ATmega328P 5V 16MHz Development Board

The Arduino Pro Mini ATmega328P 5V 16MHz is a compact microcontroller development board designed for embedded systems, electronics prototyping, and projects where space-efficient hardware is essential. Powered by the ATmega328P 8-bit AVR microcontroller, it provides a familiar Arduino-compatible programming environment in a small form factor suitable for permanent installation in custom devices.

Operating at 5V with a 16MHz clock frequency, the board offers 14 digital input/output pins, including 6 PWM-capable pins, and 8 analog input channels on compatible board versions. It also supports serial communication, SPI, and I²C, allowing it to interface with a wide range of sensors, displays, communication modules, and other electronic components.

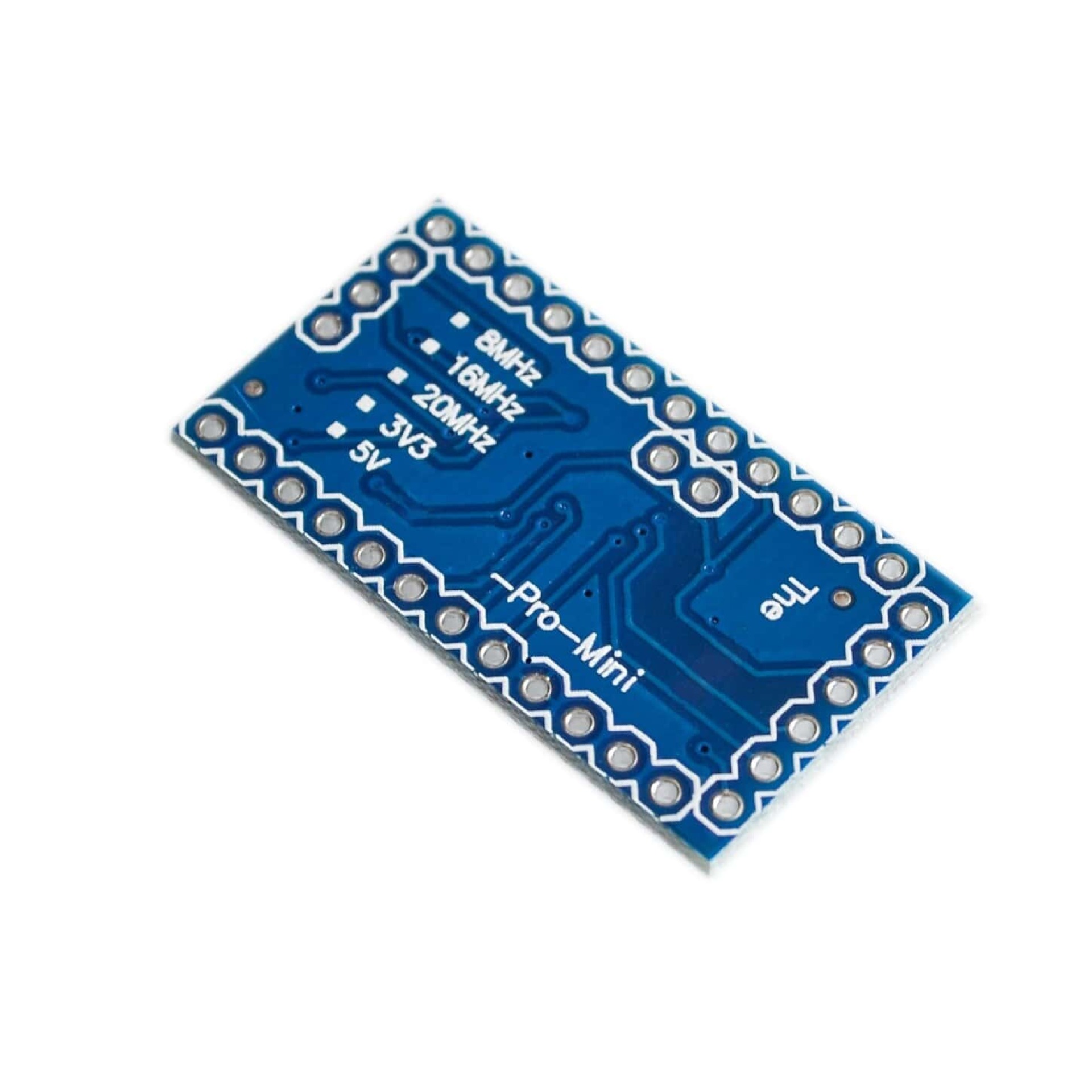

The Pro Mini includes 32KB of Flash memory, 2KB of SRAM, and 1KB of EEPROM for program storage, runtime data, and persistent settings. Its compact PCB and available header connections make it suitable for custom circuit boards, robotics, automation prototypes, sensor networks, and battery-powered embedded applications where its 5V operating requirements are appropriate.

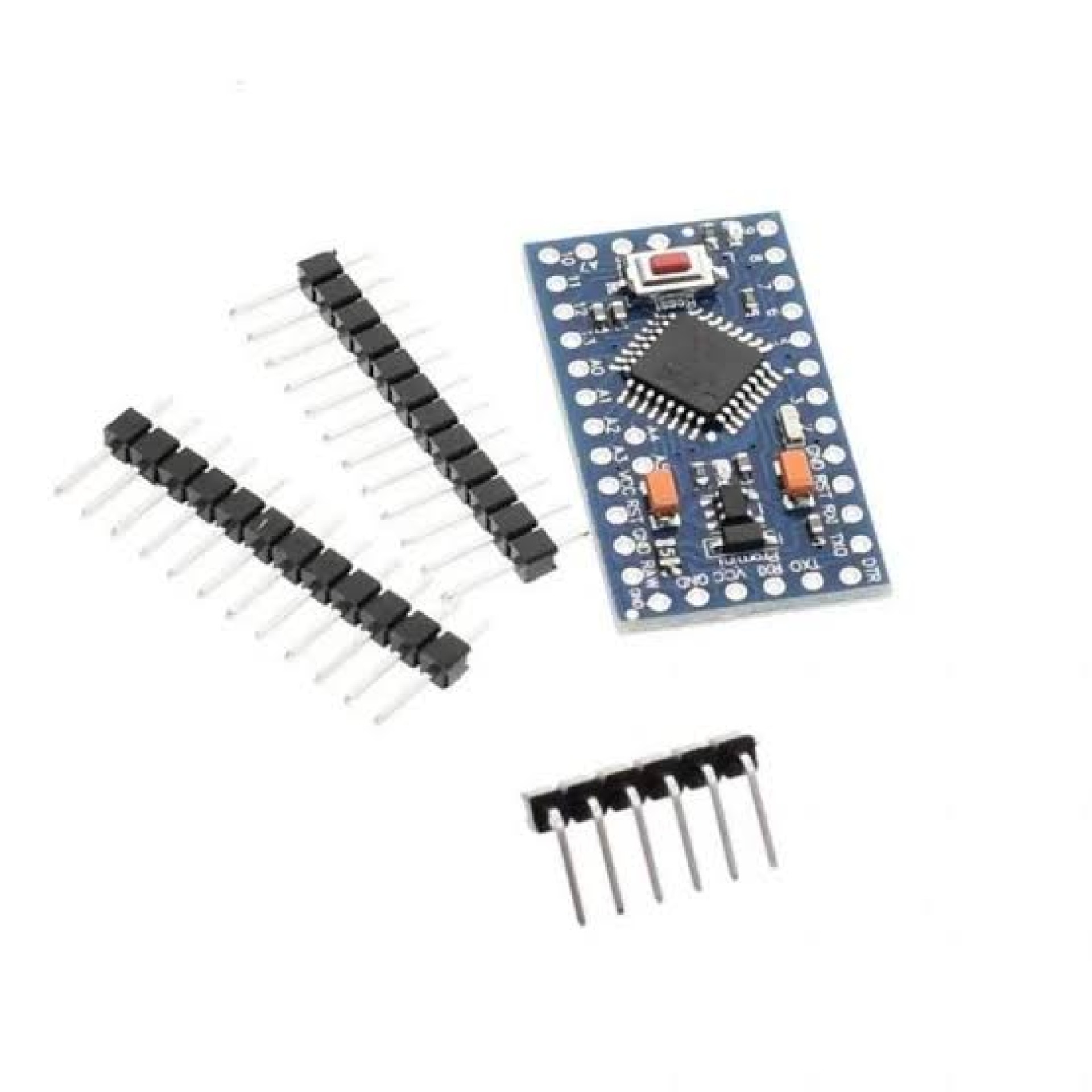

Unlike the Arduino Uno, the Pro Mini does not include an onboard USB-to-serial converter. Programming therefore requires a compatible USB-to-TTL serial adapter, typically connected through the six-pin serial programming header. The board can be powered through its regulated VCC input or through the RAW input within the limits of the specific board version.

Features:

• ATmega328P 8-bit AVR microcontroller

• 5V operating voltage and 16MHz clock speed

• Compact design for embedded installations

• 14 digital input/output pins

• 6 PWM-capable digital pins

• 8 analog input channels on compatible versions

• UART, SPI, and I²C communication interfaces

• Onboard voltage regulator and reset button

• Arduino IDE compatibility

• External USB-to-serial adapter required for programming

Specifications:

• Product Type: Arduino-Compatible Microcontroller Development Board

• Model: Arduino Pro Mini

• Microcontroller: ATmega328P

• Operating Voltage: 5V DC

• Clock Frequency: 16MHz

• Recommended Input Voltage: Typically 6–12V DC through RAW; check the board version

• Digital I/O Pins: 14

• PWM Outputs: 6

• Analog Inputs: 8 on compatible versions

• Flash Memory: 32KB

• SRAM: 2KB

• EEPROM: 1KB

• Communication Interfaces: UART, SPI, I²C

• USB Interface: No onboard USB-to-serial converter

• Programming Method: External USB-to-TTL serial adapter

• Typical Board Dimensions: Approximately 34 × 18mm

Applications:

• Embedded electronics and custom circuit design

• Robotics and automation projects

• Sensor monitoring and data logging

• Wireless communication and remote-control systems

• Home automation devices

• Portable electronic instruments

• Educational electronics and microcontroller experiments

• Custom control boards and prototypes
