Arduino Due AT91SAM3X8E ARM Cortex-M3 Board, 84MHz, 512KB Board

Arduino Due AT91SAM3X8E ARM Cortex-M3 Board (84MHz, 512KB)

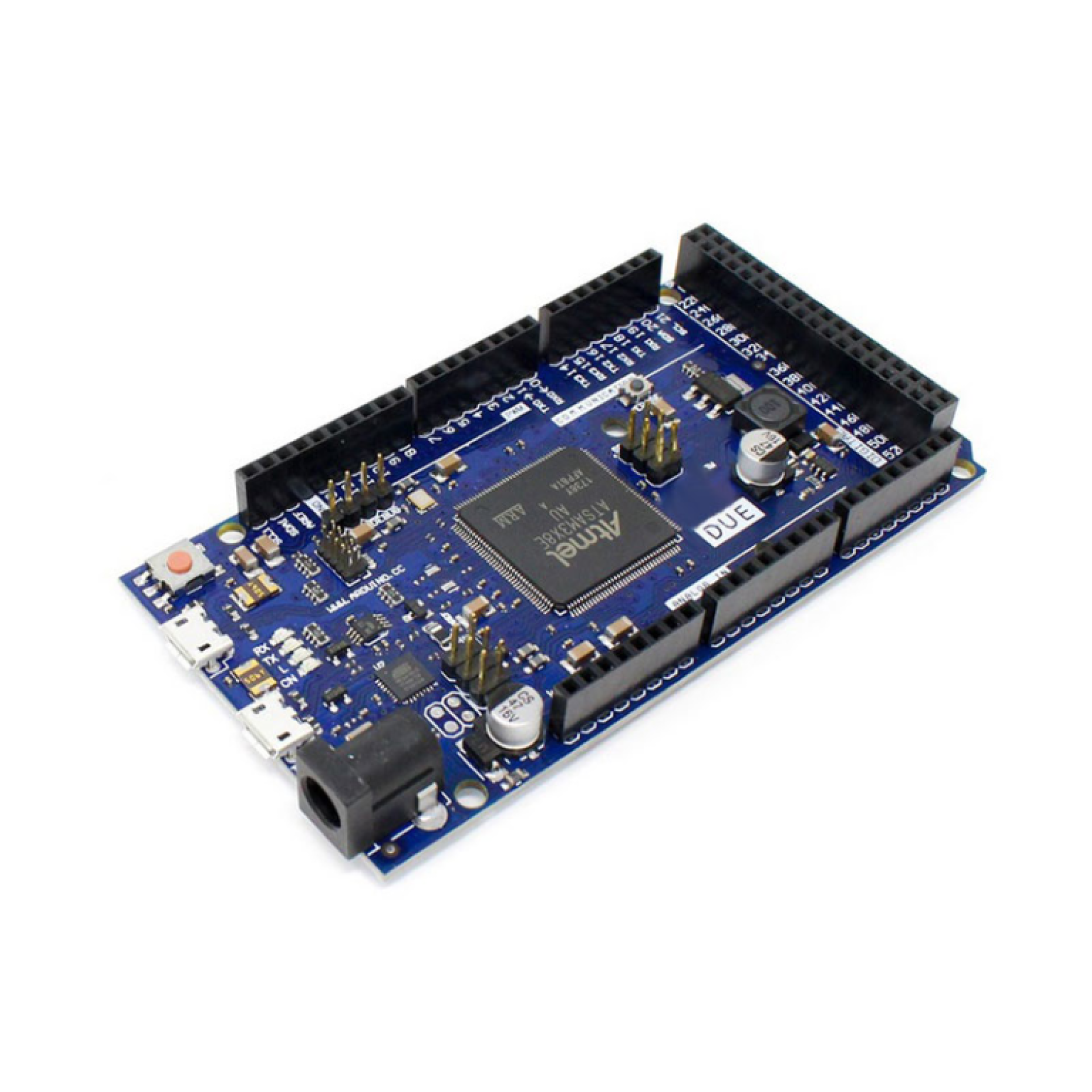

Arduino Due AT91SAM3X8E ARM Cortex-M3 Board

The Arduino Due is a powerful 32-bit microcontroller board designed for advanced embedded systems, robotics, and high-speed data processing applications. Unlike traditional Arduino boards based on 8-bit AVR microcontrollers, the Due is built around the Atmel (Microchip) AT91SAM3X8E ARM Cortex-M3 processor, delivering significantly higher performance and computational capability.

Running at 84 MHz, the Arduino Due provides a major performance boost compared to boards like Arduino Uno or Mega. It features 512KB of flash memory and 96KB SRAM, allowing it to handle complex programs, real-time processing, and large data buffers efficiently.

One of the standout features of the Due is its true 32-bit architecture, enabling faster calculations and more efficient handling of data-intensive tasks such as signal processing, robotics control, and communication systems.

The board includes 54 digital I/O pins (12 PWM), 12 analog inputs, and 2 DAC outputs, making it highly flexible for interfacing with sensors, actuators, and analog systems. It also supports multiple communication interfaces including UART, SPI, I2C (TWI), and USB OTG, allowing it to function as both a USB host and device.

⚠️ Important Note: The Arduino Due operates at 3.3V logic level only. Applying 5V directly to its pins can damage the board.

Features:

• Based on AT91SAM3X8E ARM Cortex-M3 microcontroller

• 32-bit architecture for high-performance processing

• Clock speed: 84 MHz

• 512KB flash memory and 96KB SRAM

• 54 digital I/O pins (12 PWM outputs)

• 12 analog input pins

• 2 analog outputs (DAC)

• USB OTG support (host/device capability)

• Multiple communication interfaces: UART, SPI, I2C

• Native USB for programming and communication

• JTAG interface for debugging

Specifications:

• Microcontroller: AT91SAM3X8E (ARM Cortex-M3)

• Operating Voltage: 3.3V

• Input Voltage (recommended): 7V – 12V

• Input Voltage (limits): 6V – 16V

• Clock Speed: 84 MHz

• Flash Memory: 512 KB

• SRAM: 96 KB

• Digital I/O Pins: 54 (12 PWM)

• Analog Inputs: 12

• Analog Outputs: 2 (DAC)

• Total DC Current (I/O): 130 mA

• USB: Native USB + USB programming port

Applications:

• Advanced robotics and automation

• Real-time data acquisition systems

• Audio signal processing (DAC output)

• Industrial control systems

• IoT gateways and communication hubs

• CNC machines and 3D printers

• Scientific instrumentation
