Key Features

1. High-Speed Signal Analysis

• 200 MHz Bandwidth – Supports high-frequency signal measurements.

• 1 GSa/s Real-Time Sampling Rate – Captures fast transient signals with minimal aliasing.

• 2 Channels + External Trigger – Enables multi-signal comparison and synchronization.

2. Large Display & User-Friendly Interface

• 7-inch TFT LCD (800×480 resolution) – Crisp, clear waveform visualization.

• Intuitive Menu & Knob Controls – Easy operation even in complex measurement scenarios.

3. Advanced Triggering & Waveform Capture

• Multiple Trigger Modes (Edge, Pulse, Video, Slope, Alternate) – Ensures stable waveform capture.

• Waveform Record & Playback – Stores 1000 frames for detailed analysis.

• FFT (Fast Fourier Transform) – Frequency domain analysis for noise and signal integrity checks.

4. Portable & Battery-Powered

• Built-in Rechargeable Battery – Up to 5 hours of continuous use (ideal for fieldwork).

• Lightweight & Compact – Easy to carry for on-site diagnostics.

5. Measurement & Analysis Tools

• Auto-Measurement (32 Parameters) – Vpp, Vrms, frequency, duty cycle, rise/fall time, etc.

• Cursor & Math Functions – Supports voltage, time, and waveform calculations.

• 10:1 / 1:1 Probe Switchable – Adapts to different voltage ranges.

6. Data Storage & Connectivity

• USB Host & Device Support – Save waveforms, screenshots, or update firmware.

• Supports U-Disk Storage – Export data for further PC analysis.

Applications

✔ Field Service & Repair – Automotive, industrial, and power electronics diagnostics. ✔ Education & Labs – Ideal for engineering students and researchers. ✔ R&D & Troubleshooting – Debugging circuits, signal integrity checks.

Package Includes

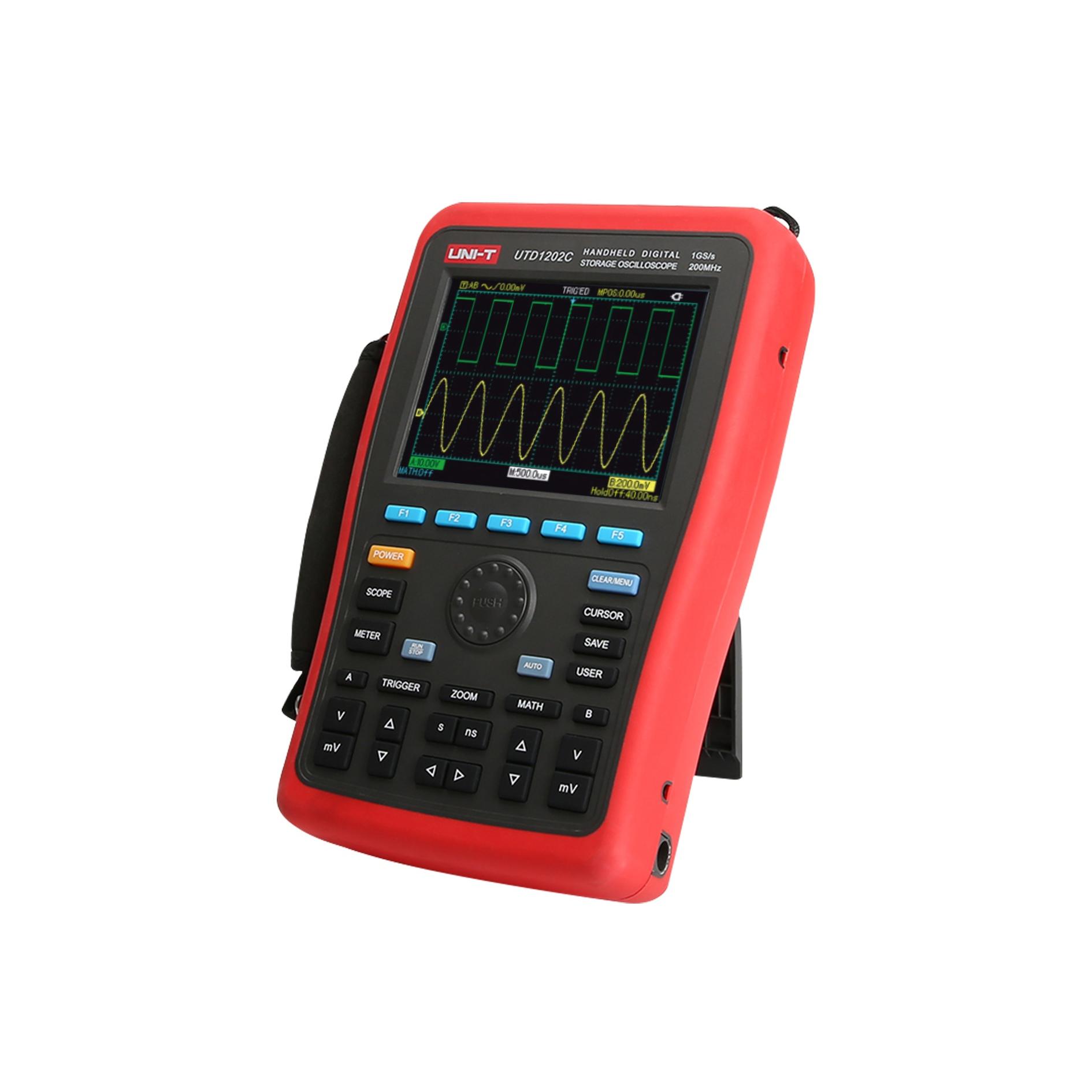

• UTD1202C Handheld Oscilloscope

• 200MHz Passive Probes (x2)

• Power Adapter & USB Cable

• User Manual & Carrying Case

Technical Specifications

Why Choose the UTD1202C?

✅ 200MHz Bandwidth – Handles high-frequency signals with precision. ✅ Portable & Battery-Powered – No need for a lab bench; take it anywhere. ✅ Large Display & Easy Controls – Optimized for quick, accurate measurements. ✅ Versatile Triggering & Analysis – Perfect for complex signal diagnostics.

Ideal for engineers, technicians, and educators who need a powerful yet portable oscilloscope.
