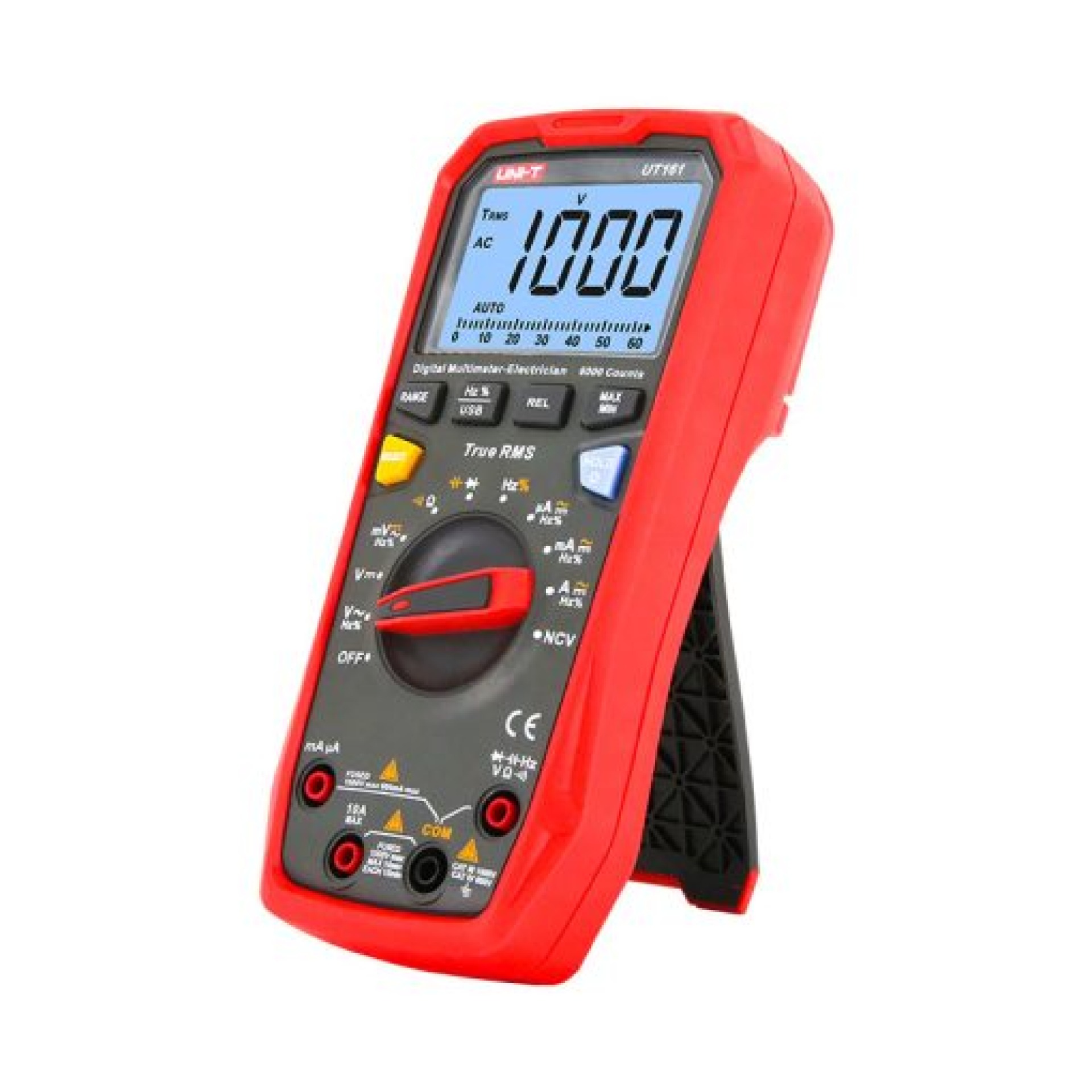

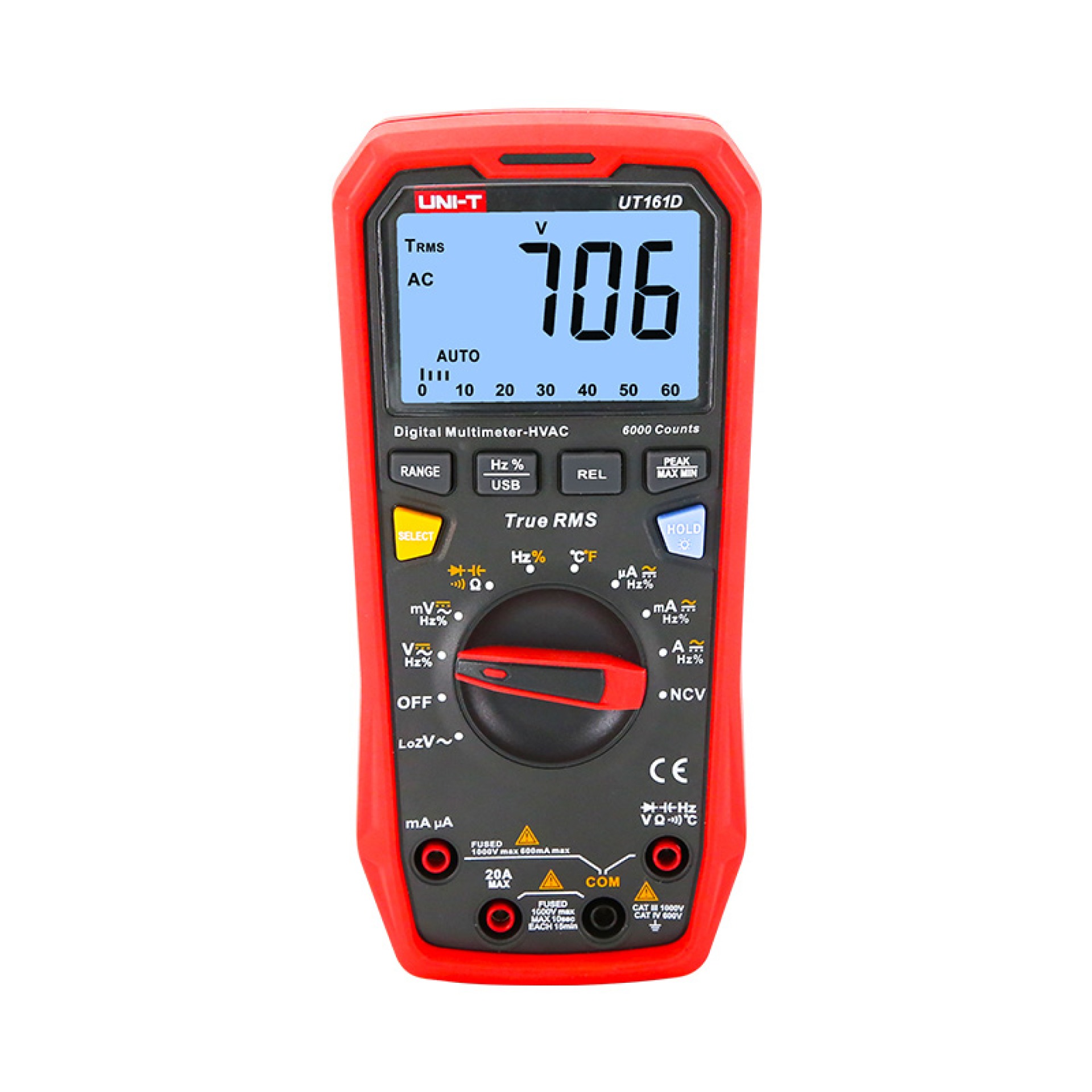

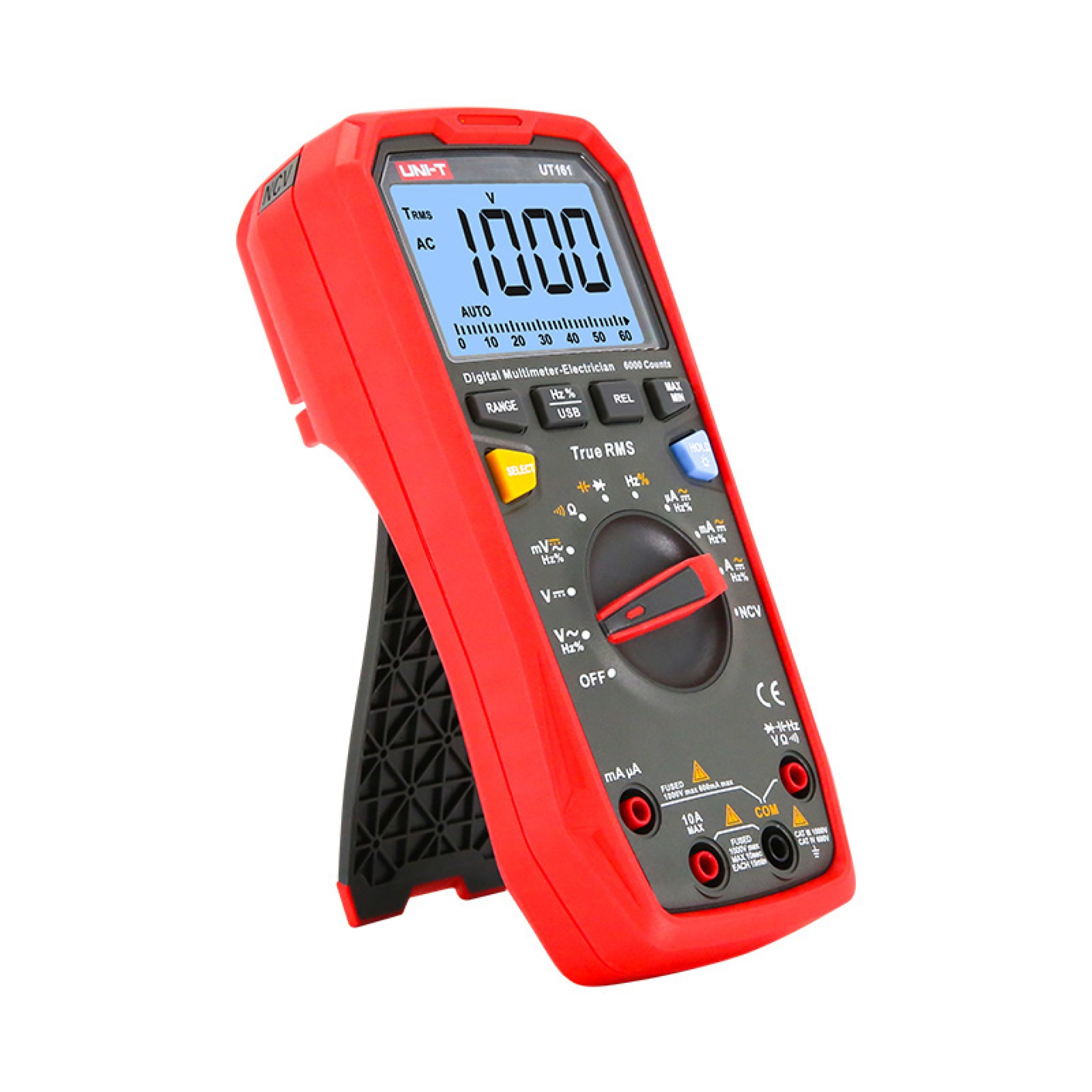

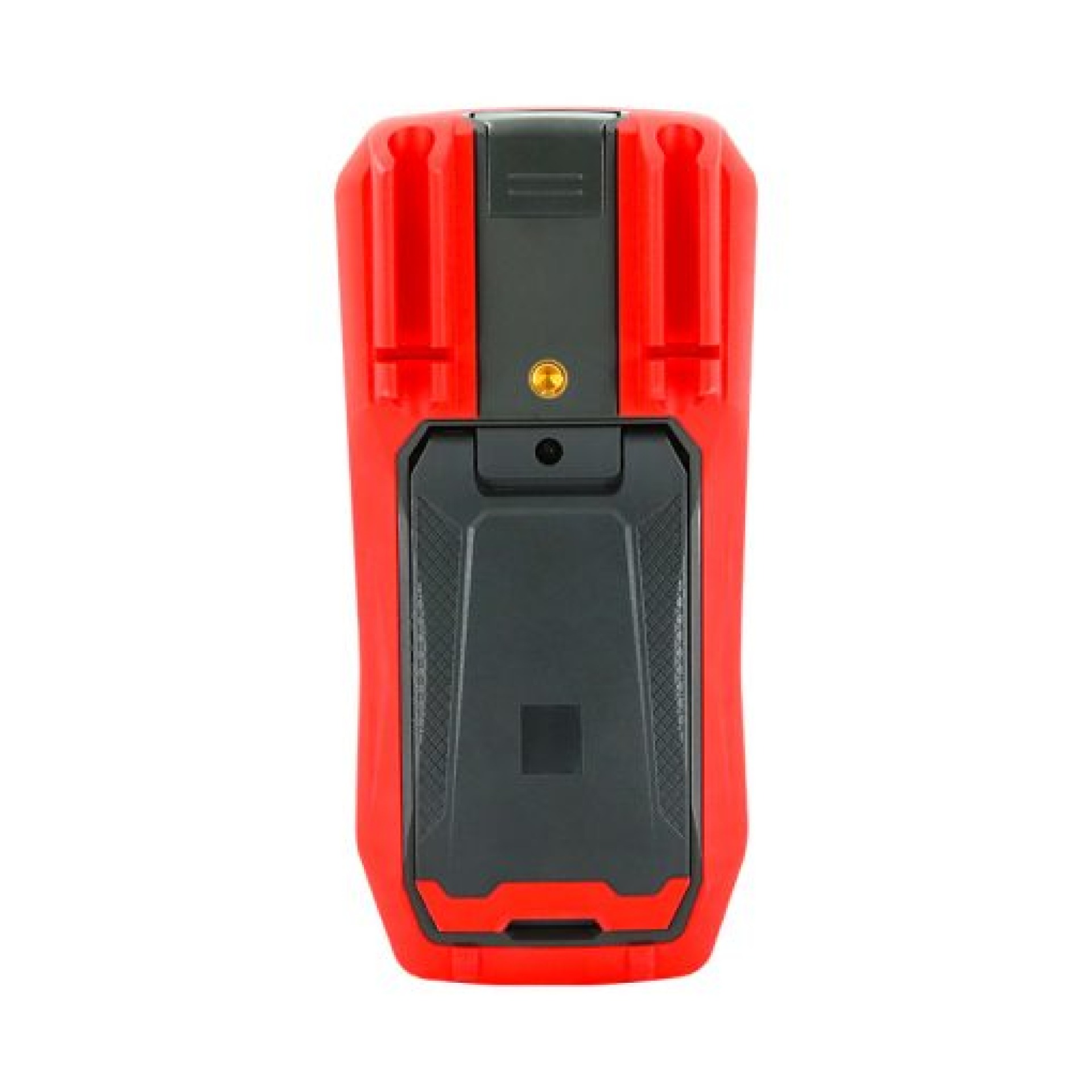

UNI-T UT161D 1000V True RMS Digital Multimeter

The UNI-T UT161D True RMS Digital Multimeter is a versatile electrical testing instrument designed for industrial maintenance, electronics troubleshooting, and electrical diagnostics. With support for AC and DC voltage measurements up to 1000V, it helps technicians evaluate electrical circuits, power supplies, control panels, and electronic equipment.

Its True RMS measurement capability improves AC measurement accuracy when working with non-sinusoidal waveforms within the instrument's specified bandwidth. The 6,000-count LCD provides detailed readings, while functions such as non-contact voltage detection (NCV), low-impedance voltage measurement (LoZ), and peak hold support practical troubleshooting tasks.

The UT161D also measures AC/DC current, resistance, capacitance, frequency, duty cycle, and temperature. USB communication enables measurement data to be transferred to a compatible computer, making this multimeter suitable for technicians, maintenance engineers, electricians, and electronics professionals.

Features:

• True RMS Measurement: Supports accurate AC measurements for compatible waveforms.

• 1000V AC/DC Measurement: Measures high voltage in compatible electrical systems.

• 20A Current Measurement: Supports AC and DC current measurements up to 20A, subject to the specified input and time limits.

• 6000-Count Display: Provides detailed readings on a backlit LCD.

• NCV Detection: Detects the presence of AC voltage without direct electrical contact.

• LoZ Voltage Mode: Helps identify ghost voltage in suitable circuits.

• Temperature Measurement: Supports temperature testing with the compatible supplied thermocouple.

• Capacitance and Frequency: Measures capacitors and signal frequency.

• Peak Hold: Captures peak readings for supported measurements.

• Min/Max and Relative Modes: Supports comparison and troubleshooting measurements.

• USB Communication: Allows measurement data transfer to compatible computer software.

• Input Protection: Includes protective circuitry for specified measurement ranges.

Specifications:

• Brand: UNI-T

• Model: UT161D

• Product Type: True RMS Digital Multimeter

• Display: 6000 counts with backlight

• Maximum AC Voltage: 1000V

• Maximum DC Voltage: 1000V

• Maximum AC Current: 20A

• Maximum DC Current: 20A

• Maximum Resistance: 60MΩ

• Maximum Capacitance: 60mF

• Maximum Frequency: 10MHz

• Temperature Range: -40°C to 1000°C

• Duty Cycle: 0.1%–99.9%

• AC Measurement Bandwidth: 40Hz–1kHz

• Additional Functions: True RMS, NCV, LoZ, diode test, continuity test, peak hold, data hold, and USB communication

• Power Supply: 4 × 1.5V AAA batteries

• Dimensions: Approximately 190 × 90 × 50mm

• Weight: Approximately 350g

• Safety Rating: CAT III 1000V / CAT IV 600V, as specified by the manufacturer

• Standard Accessories: Test leads, temperature probe, USB cable, batteries, and user manual; confirm package contents with the supplied version.

Applications:

• Industrial electrical maintenance and troubleshooting.

• AC/DC power supply testing.

• Electrical control panel inspection.

• Electronic circuit testing and repair.

• Measuring voltage and current in compatible systems.

• Capacitance and resistance testing.

• Frequency and duty-cycle measurement.

• Temperature checks using a compatible thermocouple.

• Electrical education and engineering laboratories.
