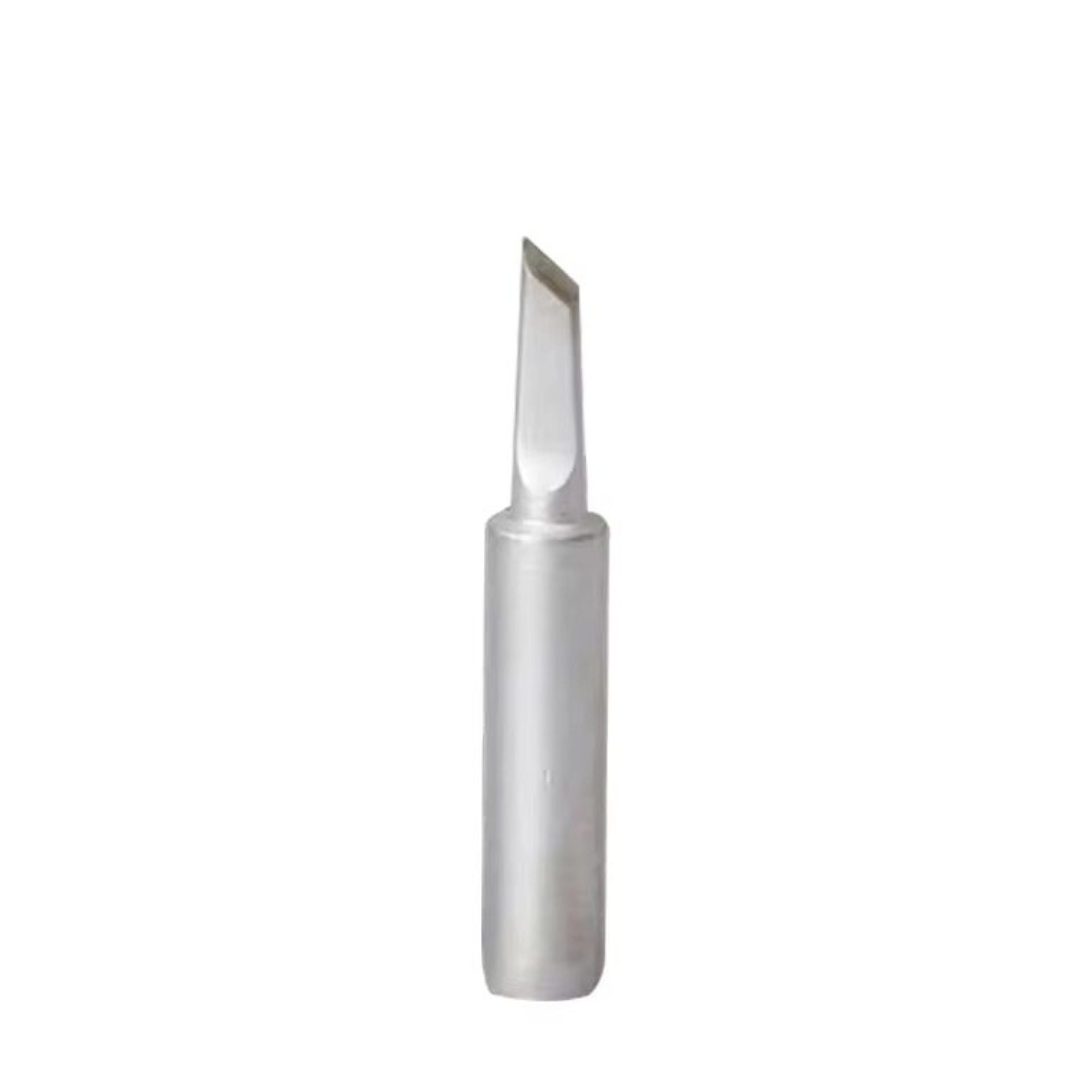

QUICK 960-SK Knife-Edge Soldering Tip

Features:

• Knife-Edge Design: Angled working surface provides controlled heat transfer for detailed soldering and PCB rework.

• Drag Soldering: Suitable for soldering multiple closely spaced pins on SMD packages, including QFP, SOIC, and PLCC components.

• Precision Soldering: Helps technicians control solder flow when working with fine-pitch ICs and connector pins.

• Efficient Heat Transfer: The wider contact surface can transfer heat across several adjacent leads during drag soldering.

• PCB Rework: Useful for solder bridge correction, component lead soldering, and repair of densely populated circuit boards.

• Replaceable Tip: Allows replacement of a worn tip without replacing the complete soldering iron or station.

• QUICK 960 Series: Designed for compatible QUICK soldering irons and stations that accept the 960-series tip.

• Lead-Free Soldering: Suitable for lead-free soldering when used with compatible equipment and appropriate temperature settings.

Specifications:

• Brand: QUICK

• Model: 960-SK

• Product Type: Replaceable soldering iron tip

• Tip Shape: Small knife-edge / angled blade

• Tip Width: Approximately 3 mm

• Outer Diameter: Approximately 6.5 mm

• Inner Diameter: Approximately 4 mm

• Overall Length: Approximately 40–41 mm, depending on the listed version

• Tip Series: QUICK 960

• Compatible Equipment: Selected QUICK 236, 706, 936-series, 3102, 3104, TS1100, and other compatible stations

• Solder Compatibility: Leaded and lead-free solder, subject to the equipment manufacturer's recommendations

• Package Contents: 1 × QUICK 960-SK soldering tip

Compatibility note: Confirm the tip dimensions and supported model against your soldering iron or station before ordering. Not every QUICK station uses the same tip series.

Applications:

• SMD component soldering and rework

• Drag soldering fine-pitch IC pins

• QFP, SOIC, and PLCC package soldering

• PCB repair and maintenance

• Solder bridge correction

• Connector and multi-pin component soldering

• Electronics assembly and prototyping

• Professional electronics repair workshops

• Engineering laboratories and technical training
